TC-2005 Series

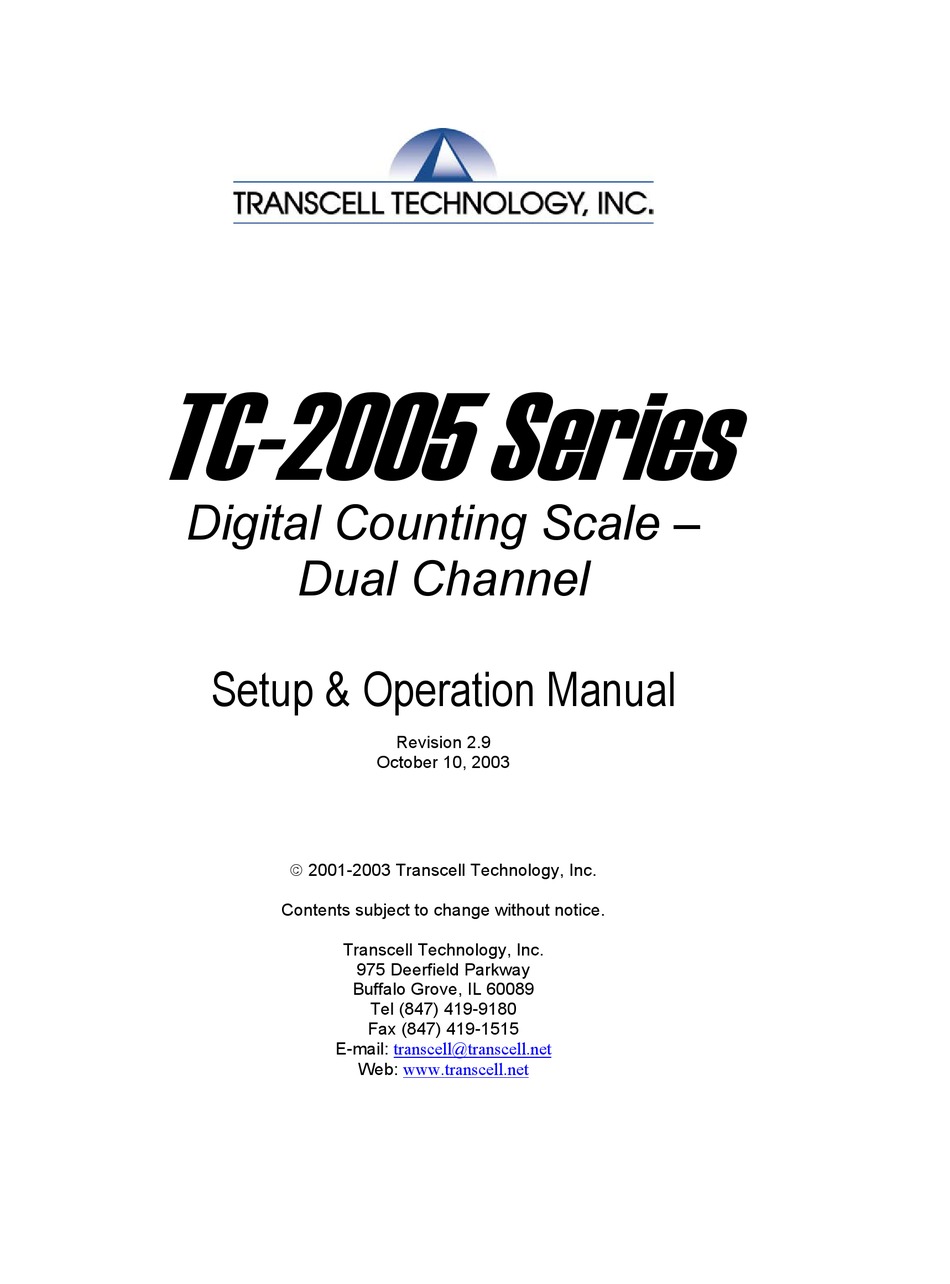

Digital Counting Scale –
Dual Channel
Setup & Operation Manual
Revision 2.9
October 10, 2003
2001-2003 Transcell Technology, Inc.
Contents subject to change without notice.
Transcell Technology, Inc.
975 Deerfield Parkway
Buffalo Grove, IL 60089
Tel (847) 419-9180
Fax (847) 419-1515
E-mail:
transcell@transcell.net
Web:
www.transcell.net
Advertisement
Table of Contents
Related Manuals for Transcell Technology TC-2005 Series
Summary of Contents for Transcell Technology TC-2005 Series
- Page 1 TC-2005 Series Digital Counting Scale – Dual Channel Setup & Operation Manual Revision 2.9 October 10, 2003 2001-2003 Transcell Technology, Inc. Contents subject to change without notice. Transcell Technology, Inc. 975 Deerfield Parkway Buffalo Grove, IL 60089 Tel (847) 419-9180...
- Page 2 Electromagnetic Compatibility Statement for North America This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Page Chapter 1: Introduction to the Transcell TC-2005 Series Digital Counting Scale......6 Chapter 2: Getting Started ......................7 Chapter 3: Operation........................9 Display........................... 9 3.1.1 Light Emitting Diode (LED)................10 Keyboard ........................11 3.2.1 Function Keys....................11 3.2.2... - Page 4 5.4.1 Entering the User Menu ................... 20 5.4.2 Navigating in the User Menu................20 5.4.3 Exiting the User Menu..................23 User Menu Procedures ....................24 5.5.1 Custom Unit Entry (A6) ..................24 5.5.2 ID Number Entry (A7)..................24 5.5.3 Set Time (A8) ....................25 5.5.4 Check Time (A9) ....................
- Page 5 Pin assignments for the Load Cell Port .................. 33 LIST OF TABLES TC-2005 Series Product Matrix....................6 TC-2005 Series Annunciator Definitions................. 9 3-1a TC-2005 Series Annunciator Definitions - Continued............. 10 F Menu........................... 17 Remote Menu Descriptions..................... 19 User Menu Descriptions – A1 to A10..................21 5-2a User Menu Descriptions –...
-
Page 6: Chapter 1: Introduction To The Transcell Tc-2005 Series Digital Counting Scale
INTRODUCTION TO THE TRANSCELL TC-2005 SERIES DIGITAL COUNTING SCALE The Transcell Model TC-2005 Series Digital Counting Scale is an easy to use, high-resolution counting scale featuring a remote scale channel and a large (1”) LED screen for easy readout. This model also features one full duplex serial port for connection to a computer, handheld barcode scanner or remote display. -
Page 7: Chapter 2: Getting Started
CHAPTER 2: GETTING STARTED After unpacking the scale, a small amount of preparation is required before the scale can be used. Please refer to Figure 2-1 below as needed. Battery Charger Switch ON/OFF Switch Remote Scale Connector COM 2 Serial Port (RS-232) DC Power Jack COM 1 Serial Port (RS-232) Figure 2-1: TC-2005 Rear Panel... - Page 8 S tep 4. If applicable, install the remote scale. 1. Connect the remote scale to the TC-2005’s remote scale port using the provided remote scale cable. Consult Appendix D for proper cabling. 2. Configure the remote scale’s parameters in the User Menu as detailed in Chapter 5. 3.
-
Page 9: Chapter 3: Operation
See Section 4.3. Indicates the unit of the displayed weight. “CU” stands for custom unit. Indicates that the scale is in the memory accumulation mode. TABLE 3-1: TC-2005 Series Annunciator Definitions Continued =>... -
Page 10: Keyboard
Indicates the weight currently on the TC-2005 scale (“local”). Indicates the weight currently on the remote scale, if configured. TABLE 3-1a: TC-2005 Series Annunciator Definitions - Continued 3 .2 KEYBOARD The keyboard is composed of six function keys and sixteen function/numeric keys. Refer to Figures 3-2 and 3-3 for the overall layout and key locations. -
Page 11: Function Keys
SETUP LOCAL REMOTE TARE FIGURE 3-3: Function/Numeric Keys Layout 3.2.2 FUNCTION/NUMERIC KEYS S ETUP/CAL - This key sets the scale to display zero. LOCAL/REMOTE - This key is toggle the weight indication between local scale (TC-2005) nd remote scale, if configured. See Section 3.3.2 below for more information. KEY TARE –... -
Page 12: Weighing An Item
3.3.2 WEIGHING AN ITEM ON THE REMOTE SCALE Note: The remote scale must be installed and configured properly for this feature to work. For instructions, refer to Chapter 2. 1. Ensure that the REM annunciator is lit. If it is not, press the Local/Remote key once. 2. -
Page 13: Clearing The Piece Count
This mode is used to indicate the number of pieces of an item you have placed on the scale’s platform and is accessed by pressing the SAMPLE key. To ensure accuracy, the parts you are counting must be consistent in weight. The scale uses the sampling method to determine the average piece weight (APW) of the items you wish to count. -
Page 14: Chapter 4: Advanced Features And Operation
CHAPTER 4: ADVANCED FEATURES AND OPERATION AVERAGE PIECE WEIGHT ENTRY If you already know the Average Piece Weight or APW of the items you wish to count, then use one of the following procedures. 4.1.1 APW ENTRY FROM SCALE KEYBOARD 1 . -
Page 15: Memory Accumulator
MEMORY ACCUMULATOR Your scale comes equipped with a handy memory accumulator, which can be used in conjunction with the piece counting feature. As with a hand-held calculator, the memory accumulator can be added to, displayed and cleared at anytime. NOTE: Make sure the scale is in piece counting mode. If it is not, follow the sampling procedure found in Section 3.3.6 or the alternative sampling procedure found in Section 4.1. -
Page 16: Chapter 5: Configuration
CHAPTER 5: CONFIGURATION CONFIGURATION OVERVIEW The scale contains three main setup menus: The Setup (“F”) menu configures the factory settings for your scale. The Remote (“R”) menu configures the settings for the remote scale. The User (“A”) menu configures the COM1 and COM2 serial communication ports and enables some user options. - Page 17 PARAMETER DESCRIPTION AVAILABLE (Soft Key Text) CHOICES 1000, 2000, 5000 Specifies number of full-scale graduations. Value should be 10000,12000√ consistent with legal requirements and environmental limits on the Graduations 15000, 24000 useful system resolution. Note – default for 30 lb or 15 kg is 30000, 50000 15000 divisions.
-
Page 18: Remote ("R") Menu
REMOTE (“R”) MENU 5.3.1 ENTERING THE REMOTE MENU 1. Press the SETUP/CAL key at any time. The scale prompts for a password (“000000”). 2. Key-in the password (336699) and press ENT. The scale displays “CAL-L”. 3. Press the UNIT key until the scale displays “- R --“. 4. -
Page 19: Exiting The Remote Menu
Dsp. Div. Dec. Pt. Grads Calib. Unit Remote Scale Enable lb kg 0 0.0 0.00 0.000 0.0000 00 500 ..50000 Auto Switch OFF ON Figure 5-2: Remote Menu Chart 5.3.3 EXITING THE REMOTE MENU 1. Push the ZERO key a few times to get to the “-- R --“ level, then press the ZERO key once more. The display will go through a digit check, then settle into Normal Operating mode. -
Page 20: User ("A") Menu
USER (“A”) MENU 5.4.1 ENTERING THE USER MENU 1. Press the SETUP/CAL key at any time. The scale prompts for a password (“000000”). 2. Key-in the password (336699) and press ENT. The scale displays “CAL-L”. 3. Press the UNIT key until the scale displays “- A -“. 4. -
Page 21: User Menu Chart
Display Check Custom Unit ID No. Entry Set Time Chk Time Data Bits, Parity Baud Rate COM Mode Printer Type Press TARE Press TARE Press TARE Press TARE Press TARE 8n 7O 7E key to begin key to begin key to begin key to begin key to begin 1200 2400 4800 9600... -
Page 22: User Menu Descriptions - A1 To A10
5.4.3 EXITING THE USER MENU 1. Push the ZERO key a few times to get to the “-- A --“ level, then press the ZERO key once more. The display will go through a digit check, then settle into Normal Operating mode. -
Page 23: Exiting The User Menu
NAME/CO DESCRIPTION CODE/VALUE Allows you to check the present date set on the scale. Pressing the Press TARE key Check Date TARE key to scroll down one level begins the sequence. to begin sequence Selects the auto power off time period in minutes: Off√... -
Page 24: User Menu Procedures
Use the left or right directional keys (shown in Figure 5-1 above) to move the decimal point position to the correct position. Pressing the PRINT key or the UNIT key will change the position of the decimal point. After setting the correct decimal point position, press the SAMPLE key to save it. -
Page 25: Set Time (A8)
5.5.4 Check Time (A9) Use this menu to verify the current time set on the scale. 1. While in the User Menu mode, scroll to "A 9", then scroll down once using the TARE key to enter the check time menu. 2. -
Page 26: Chapter 6: Calibration
CHAPTER 6: CALIBRATION CALIBRATION OVERVIEW Your TC-2005 scale ships from the factory fully calibrated. There is no need to calibrate the scale unless you feel that it has become inaccurate. It is a good idea to check the calibration of your scale from time to time with a precision test weight. Transcell recommends that you perform a new calibration on your digital scale at least once a year. -
Page 27: Calibration Mode - Remote Scale
Figure 6-1: Calibration Mode Key Assignments MODEL Capacity / Graduation Minimum Test Weight Recommended Test Weight TC-2005-12 12 x 0.0005 lb 0.12 lb 8 lb to 12 lb TC-2005-30 30 x 0.001 lb 0.3 lb 20 lb to 30 lb TC-2005-60 60 x 0.002 lb 0.6 lb... -
Page 28: Appendix A: Specifications
APPENDIX A: SPECIFICATIONS CONSTRUCTION: POWER SOURCE: Housings: Gray ABS AC Adapter, 12VDC, 800 mA, Sub-Platform: Metal included Platter: Stainless Steel OPTIONAL POWER SOURCE: Feet: Non-skid Hard Rubber Two 12VDC, 1200 mAH NiMH battery packs DISPLAY: Charger: 24VDC, 2 A 6 Digit, 7-Segment LED Charge Period: 3 hours, max. -
Page 29: A Ppendix B: Serial Port Information
APPENDIX B: SERIAL PORT INFORMATION COM1 SERIAL PORT B.1.1 CONNECTING THE SERIAL DEVICE The COM1 serial port is a full duplex RS-232 port designed for connection to one of the following: • Serial barcode printer - label or receipt • Serial non-barcode printer - label, ticket or receipt Figure B-1 shows the serial port pin out. -
Page 30: Com2 Serial Port
COM2 SERIAL PORT B.2.1 CONNECTING THE SERIAL DEVICE The COM2 serial port is a full duplex RS-232 port designed for connection to one of the following: • Computer • Remote display • Transcell TC-100, TC-200 or PBS Series scale • Scanner Figure B-3 shows the serial port pin out. -
Page 31: Recognized Host Commands
“z” - This command is sent to the scale to zero the scale. If the scale is in motion, the scale will wait until a state of equilibrium is achieved. The scale will not respond at all if the scale is in positive overload or negative overload. -
Page 32: Appendix C: Error Messages
APPENDIX C: ERROR MESSAGES ERROR MESSAGES If the scale encounters an error condition, it will display a message alerting the operator. A description of each display follows: C.1.1 OPERATOR ERRORS Explanation Message Indicates that the weighing capacity of the selected scale has been exceeded. Indicates that there is not enough internal resolution to calculate the APW of an item. -
Page 33: A Ppendix D: Remote Scale Wiring
APPENDIX D: REMOTE SCALE WIRING REMOTE SCALE WIRING The TC-2005 ships with a 15 ft shielded load cell cable for connection to the remote platform’s load cell(s) or junction box. The TC-2005 supplies enough current to drive up to -350Ω load cells. Plug the cable’s 14-pin Centronics-type connector into the load cell port on the rear panel of the scale. - Page 34 Seller or its duly authorized repair agents. Transcell Technology, Inc. will have a reasonable time to repair or replace such goods. THESE WARRANTIES EXCLUDE ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN, INCLUDING WITHOUT LIMITATION WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
