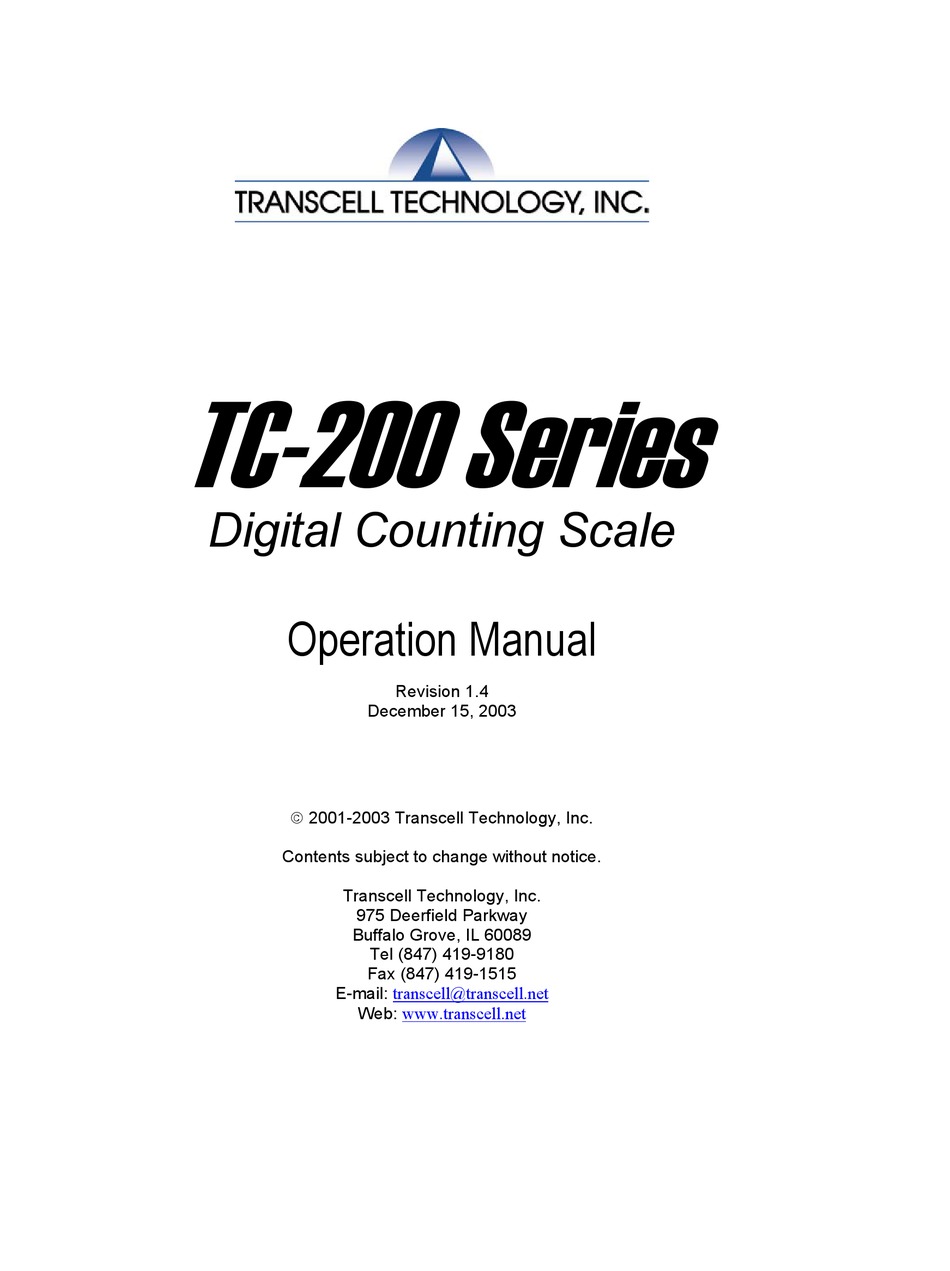

TC-200 Series
Digital Counting Scale
Operation Manual
Revision 1.4
December 15, 2003
2001-2003 Transcell Technology, Inc.
Contents subject to change without notice.
Transcell Technology, Inc.
975 Deerfield Parkway
Buffalo Grove, IL 60089
Tel (847) 419-9180
Fax (847) 419-1515
E-mail:
transcell@transcell.net
Web:
www.transcell.net
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transcell Technology TC-200-6
Summary of Contents for Transcell Technology TC-200-6
- Page 1 TC-200 Series Digital Counting Scale Operation Manual Revision 1.4 December 15, 2003 2001-2003 Transcell Technology, Inc. Contents subject to change without notice. Transcell Technology, Inc. 975 Deerfield Parkway Buffalo Grove, IL 60089 Tel (847) 419-9180 Fax (847) 419-1515 E-mail: transcell@transcell.net...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Page Chapter 1: Introduction to the Transcell TC-200 Series Digital Counting Scale ......5 Chapter 2: Getting Started......................6 Chapter 3: Basics of Operation ...................... 8 Display .......................... 8 3.1.1 Vacuum Fluorescent Display (VFD) ..............8 Keyboard........................9 3.2.1 Function and Numeric Keys ................ - Page 3 C hapter 6: Calibration........................19 Calibration Overview..................... 19 Calibration Mode......................19 Appendix A: Specifications........................ 21 A ppendix B: Serial Port Information ....................22 COM1 Serial Port......................22 B.1.1 Connecting the Serial Device ................22 B.1.2 Default Print Format..................22 B.1.3 Full Duplex Modes for COM1 ................
- Page 4 Electromagnetic Compatibility Statement for Europe PRODUCT TC-200 Directives with which this equipment complies Harmonized Standards applied: EMC 89/336/EEC EMC Directive EMC 92/31/EEC EMC Directive EMC 93/68/EEC EMC Directive EN 55011:1998 (Class B) EN 61000-3-2:1995 +A1:1998 +A2:1998 EN 61000-3-3:1995 EN 45501: 1994 IEC801-2:1991 IEC801-3:1984 IEC801-4:1988...
-
Page 5: Chapter 1: Introduction To The Transcell Tc-200 Series Digital Counting Scale
MODEL MODEL CAPACITY / GRADUATION CAPACITY / GRADUATION TC-200-6 6 x 0.0005 lb TC-200-3M 3000 g x 0.2 g TC-200-12 12 x 0.001 lb TC-200-6M 6000 g x 0.5 g... -
Page 6: Chapter 2: Getting Started
CHAPTER 2: GETTING STARTED After unpacking the scale, a small amount of preparation is required before the scale can be used. Please refer to Figure 2-1 below as needed. COM1 SERIAL POWER ON/OFF PORT (RS-232) CONNECTOR SWITCH Figure 2-1: TC-200 Back Panel Step 1. -
Page 7: Latitude Compensation Zones (Usa)
Seattle Boston Minneapolis Detroit San Francisco Chicago Philadelphia Washington Denve St. Louis Los Angeles Memphis Atlanta Dallas Houston Miami Figure 2-2 : Latitude Compensation Zones (USA) -
Page 8: Chapter 3: Basics Of Operation
CHAPTER 3: OPERATION 3 .1 DISPLAY The Model TC-200 scale utilizes a 16 digit VFD (Vacuum Fluorescent Display) to display the weight and system information. 3.1.1 VACUUM FLUORESCENT DISPLAY (VFD) Figure 3-1 shows the display detail of the VFD. Table 3-1 lists the various annunciators you may see and their meanings. -
Page 9: Keyboard
3 .2 KEYBOARD The keyboard is composed of twelve function keys and ten numeric keys. Refer to Figure 3- 2 for the overall layout and key locations. TARE ZERO SAMPLE UNIT PRINT TARGET FIGURE 3-2: Function and Numeric Keys Layout 3.2.1 FUNCTION AND NUMERIC KEYS Z ERO - This key sets the scale to display zero. -
Page 10: Taring An Item Of Unknown Weight
3. Read the weight shown on the display. Note: If you wish to change the unit of measure, press the Unit key. 3.3.2 TARING AN ITEM OF UNKNOWN WEIGHT To weigh an item in a container, the weight of that container must first be subtracted from the overall weight to obtain an accurate weight reading. -
Page 11: Tc-200 Sampling Limits
1. To clear the piece count, either press the CLR key to erase the sample or repeat the steps in Section 3.3.5. MODEL Capacity / Graduation Minimum Piece Weight Minimum Sample Weight TC-200-6 6 x 0.0005 lb 0.0004 lb 0.0125 lb TC-200-12 12 x 0.001 lb 0.0008 lb... -
Page 12: Chapter 4: Advanced Features And Operation
CHAPTER 4: ADVANCED FEATURES AND OPERATION AVERAGE PIECE WEIGHT ENTRY If you already know the Average Piece Weight or APW of the items you wish to count, then use the following procedure. 4.1.1 APW ENTRY FROM SCALE 1. Using the numeric and decimal point keys, key-in the actual Average Piece Weigh value. -
Page 13: Using The Target Value
USING THE TARGET VALUE This function works in conjunction with the piece counting feature and allows your scale to act as a checkweigher. This is useful if you are filling a container with a pre-determined amount of items. To use, you must enter a target value. For example, if you wish to fill a bottle with 100 items you would set your target value to 100. -
Page 14: Chapter 5: Configuration
CHAPTER 5: CONFIGURATION CONFIGURATION OVERVIEW The scale contains two main setup menus: The Setup (“F”) menu configures the factory settings for your scale. The User (“A”) menu configures the COM1 serial communication port and enables some user options. The Setup and User menus consist of several menu selections, each with its own sub-menu of choices. -
Page 15: User ("A") Menu
Dsp. Div. Dec. Pt. Grads Zero Band Calib. Unit lb kg 0d ... 5d 0.0 ... 0.0000 10000 Zero Calib. Span Calib. Creep Band Creep Time Press ZERO Press ZERO key to begin key to begin OFF ... 50 1 ... 30 Figure 5-2: Setup Menu Chart 5.2.3 NOTES ON THE SETUP MENU 1. -
Page 16: Exiting The User Menu
6. To move to a new “A” heading, use the 4 (left) or 5 (right) key to move right or left in the User Menu Chart. To move to the selection level, press the 2 (down) key once. The current saved selection is shown. -
Page 17: User Menu Descriptions
NAME/CODE DESCRIPTION CODE/VALUE Selects the baud rate for data transmission through the serial port. 1200 2400 Baud Rate 4800 9600√ Selects the number of data bits and parity of serial transmission. 8n√ Data Bits and "8n" = 8 data bits with no parity bit "7O"... -
Page 18: User Menu Procedures
USER MENU PROCEDURES This section provides instructions for all of the User Menu procedures. 5.4.1 ID Number Entry (A8) While in the User Menu mode, scroll to "A 8", then scroll down once using the 2 key to enter the ID Number menu. The display will momentarily show "ET ID", followed by the current ID number value. -
Page 19: Chapter 6: Calibration
CHAPTER 6: CALIBRATION CALIBRATION OVERVIEW Your TC-200 scale ships from the factory fully calibrated. There is no need to calibrate the scale unless you feel that it has become inaccurate. It is a good idea to check the calibration of your scale from time to time with a precision test weight. Transcell recommends that you perform a new calibration on your digital scale at least once a year. -
Page 20: Minimum / Recommended Calibration Test Weights
MODEL Capacity / Graduation Minimum Test Weight Recommended Test Weight TC-200-6 6 x 0.0005 lb 0.06 lb 4 lb to 6 lb TC-200-12 12 x 0.001 lb 0.12 lb 8 lb to 12 lb TC-200-30 30 x 0.002 lb 0.3 lb... -
Page 21: Appendix A: Specifications
APPENDIX A: SPECIFICATIONS CONSTRUCTION: OPERATING TEMPERATURE RANGE: Housings: Grey ABS 32°F to 104°F Sub-Platform: ABS (0°C to 40°C) Platter: Stainless Steel POWER SOURCE: Feet: Non-skid Hard Rubber AC Adapter, 12VDC, 800 mA, DISPLAY: included 14 Character, 7-Segment VFD COM1 SERIAL PORT: Full Duplex RS-232, DSUB9F KEYPAD: 22-key Tactile Keypad... -
Page 22: Appendix B: Serial Port Information
APPENDIX B: SERIAL PORT INFORMATION COM1 SERIAL PORT B.1.1 CONNECTING THE SERIAL DEVICE The COM1 serial port is a full duplex RS-232 port designed for connection to one of the following devices: • Serial receipt printer (dot matrix) • Computer •... -
Page 23: Default Print Format
B.1.2 DEFAULT PRINT FORMAT Figure B-4 shows the fixed format of the print format. NOTE: The TARE and NET fields are blank when a tare has not yet been established in the system. The PCS field is blank when an APW has not yet been established in the system. -
Page 24: Continuous Mode
“C” - This command is sent to the scale to toggle among the configured units. TABLE B-1. Recognized Host Commands B.1.3.2 CONTINUOUS MODE The Demand mode is used to interface to computers, scoreboards and other remote devices requiring constant data updating. The transmission occurs at the end of each display update. Figure B-6 shows the serial data format for the Continuous Mode. -
Page 25: Appendix C: Error Messages
APPENDIX C: ERROR MESSAGES ERROR MESSAGES If the scale encounters an error condition, it will display a message alerting the operator. A description of each display follows: C.1.1 OPERATOR ERRORS Explanation Message Indicates that the weighing capacity of the selected scale has been exceeded. Err 9 Span calibration value has been lost. -
Page 26: Calibration Errors
C.1.2 CALIBRATION ERRORS Message Explanation Err 0 Indicates that the test weight value you have chosen exceeds the scale’s capacity. Err 1 Indicates that the test weight value you have chosen is less than 1% of the scale’s capacity. Err 2 Occurs when you do not place the test weight on the scale during calibration. - Page 27 Seller or its duly authorized repair agents. Transcell Technology, Inc. will have a reasonable time to repair or replace such goods. THESE WARRANTIES EXCLUDE ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN, INCLUDING WITHOUT LIMITATION WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
