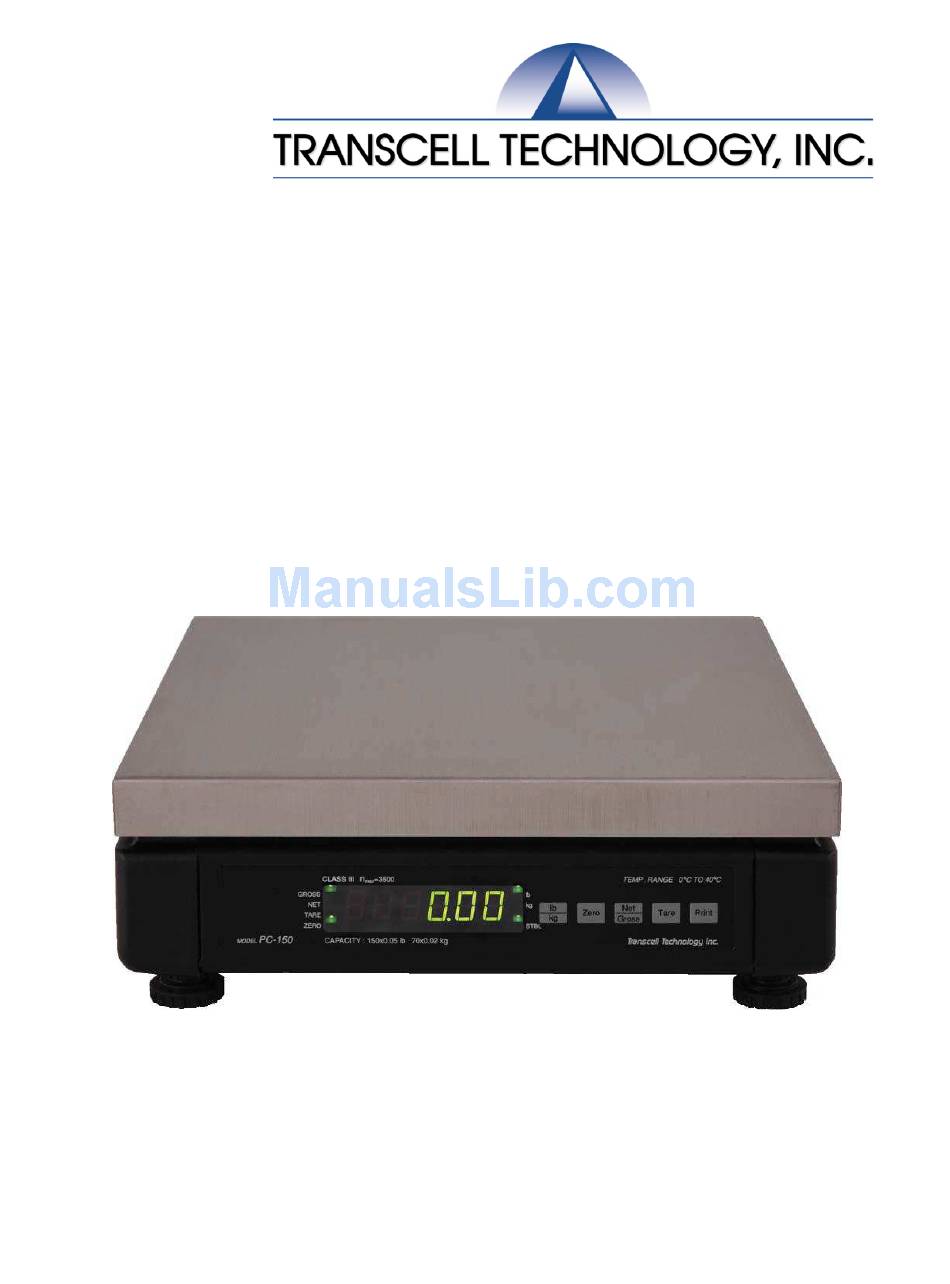

- Page 1 PC-150 DIGITAL BENCH SCALE Setup / Operation Manual Revision 1.3 975 Deerfield Parkway Buffalo Grove, IL 60089 October 6, 2010 Tel (847) 419-9180 Fax (847) 419-1515 http://www.transcell.com...
-
Page 2: Table Of Contents
WARRANTY AND SERVICE INFORMATION ................14 INTRODUCTION The PC-150 Digital Bench Scale is a compact, 150 lb (70 kg) capacity bench scale with display and five function keyboard. It comes standard with a bright LED screen for easy readout, a re- movable stainless steel platform, and an RS-232C serial communication port and a USB port. -
Page 3: Installation
INSTALLATION The PC-150 rear panel contains all necessary power switches, communication ports and power receptacles. To install the scale: Place the scale in its intended area of use. Ensure that the scale is placed securely on a flat and level surface. Use the adjustable feet to level out the scale and avoid rocking. -
Page 4: Display Overview
DISPLAY OVERVIEW PC-150 Display Area ANNUNCIATOR MEANING Better known as the “Center of Zero” annunciator, this light is active whenever the ZERO displayed weight is within ± 0.25 divisions of true zero. Indicates that the scale is displaying net weight. -
Page 5: Keyboard Functions
KEYBOARD FUNCTIONS PC-150 Keyboard FUNCTION Sets scale to display "0" only when a) in Gross mode, b) not in overload and c) not in ZERO motion. Toggles between Gross and Net weight display if a tare has been established. GROSS Used to establish the weight on the platform as the tare weight. -
Page 6: User Menu Mode
USER MENU MODE The PC-150 scale includes a User menu that contains the scale's serial communication parame- ters. It consists of 5 separate menu selections, each also with its own sub-menu of choices. To change a listed parameter, you must first enter the User Menu mode. Once there, four of the front panel keys become directional navigators to move around in the menus, and one key is used to save or SET the selections. - Page 7 "0" = Consolidated Controls Format 3√ √ √ √ "1" = Toledo 8213 Format "2" = NCI 3825Format "3" = Transcell Technology Format “4” = Detecto ASD Format “5” = Triner Format "6" = Fairbanks 70-2453-4 Format Allows the lb/kg key to be disabled so that an operator cannot acci- 1√...
-
Page 8: Setup Menu Mode
SETUP MENU MODE The PC-150 scale includes a Setup menu that determines the scale’s display mode, allows scale calibration and also contains the scale's adjustable functional parameters. It consists of 5 sepa- rate menu selections, each also with its own sub-menu of choices. - Page 9 SETUP MENU CHART Calib. Unit. Display Mode Zero Range Display Check Calibration 100% 1.9% Press ZERO Press ZERO key to begin key to begin SETUP MENU DESCRIPTIONS NAME/CODE DESCRIPTION CODE/VALUE 0√ √ √ √ Selects display mode for the scale. Display Mode "0"...
-
Page 10: Calibration
CALIBRATION Your PC-150 shipping scale is ready to use right out of the box. There is no need to calibrate the scale unless you feel that the scale has become inaccu- rate. It is a good idea to check the calibration of your scale from time to time with a precision test weight. -
Page 11: Specifications
MODEL Non Legal-for-trade Capacity Legal-for-trade Capacity PC-150 0 - 5 x 0.01 lb (0 - 2 x 0.005 kg) 0 - 150 x 0.05 lb (0 - 70 x 0.02 kg) 5 - 70 x 0.02 lb (2 - 30 x 0.01 kg) 70 - 150 x 0.05 lb (30 - 70 x 0.02 kg) -
Page 12: Serial Port Information
Not many computers these days come with a COM port. USB has replaced the serial COM port on most computers. The USB solution on our PC-150 uses a special driver on your PC to pro- duce what’s called a Virtual COM Port or VCP. This allows many legacy applications to work seamlessly with our scale because to them, it’s just another COM port. -
Page 13: Error Codes
ERROR CODES CODE MODE MEANING / POSSIBLE SOLUTION Normal Operating Mode A weight greater than 102% of the scale’s capacity has been applied to the scale. Remove the weight from the platter. Try re-calibrating the scale if this doesn’t solve the problem. Otherwise, possible load cell damage due to overloading. -
Page 14: Warranty And Service Information
©Transcell Technology, Inc. 2010. All rights reserved. The information contained herein is the property of Transcell Technology and is supplied without liability for errors or omissions. No part may be reproduced or used except as authorized by contract or other written permission. The copy- right and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied.
