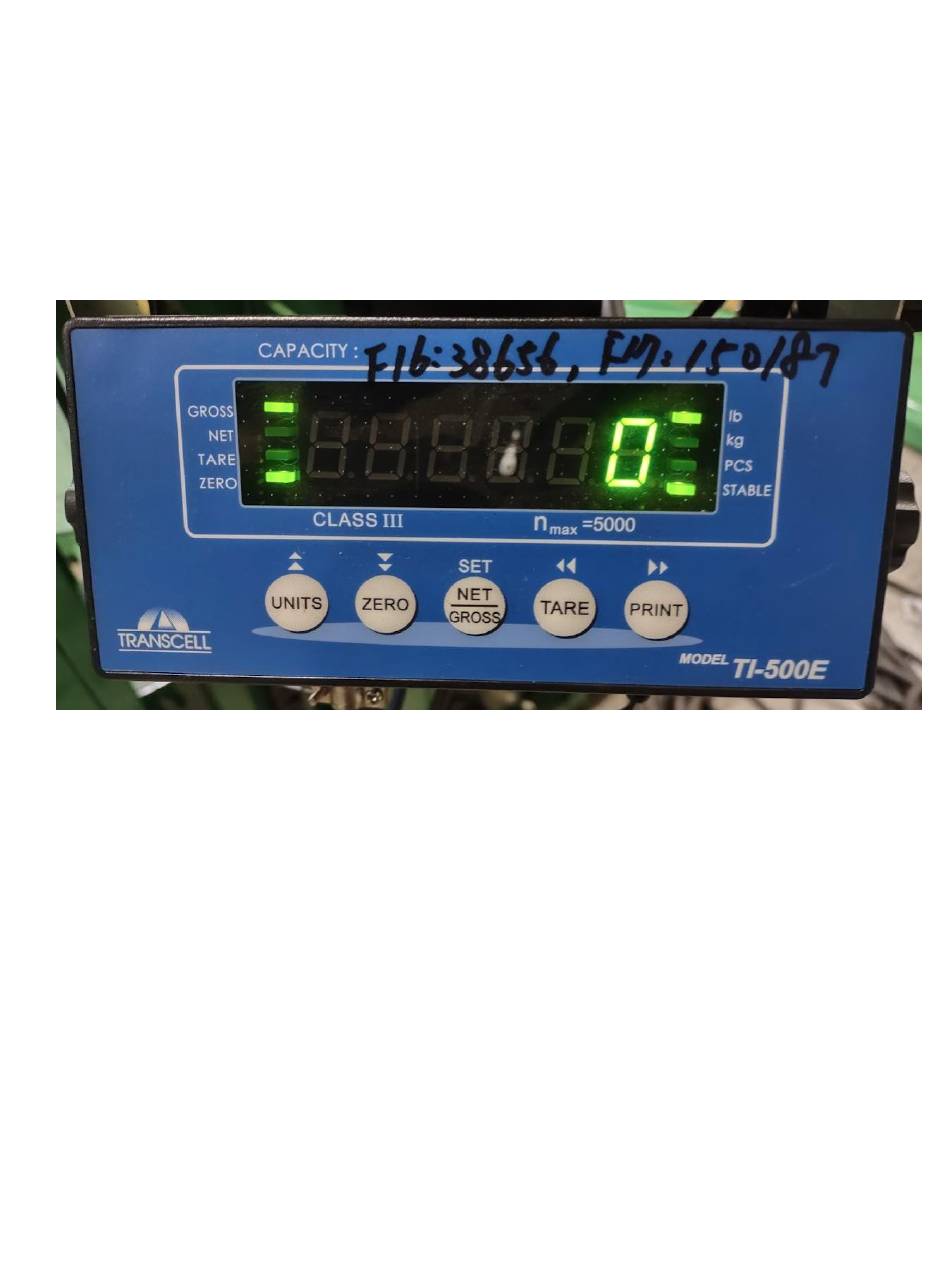

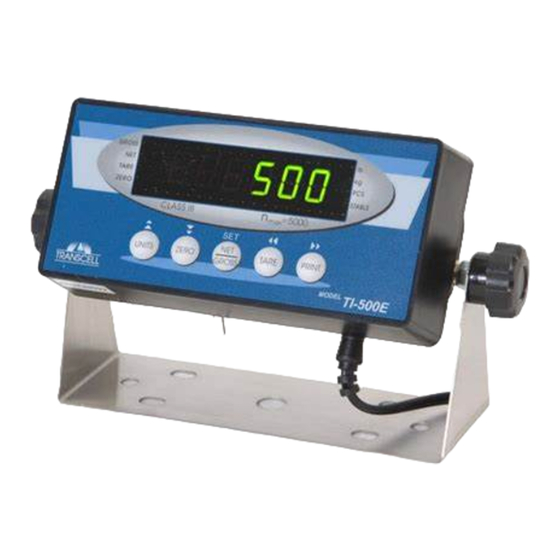

Predator SS and Predator XS
TRANCELL TS-500 Scale Reset and
When trying to determine if there is a problem with the either the load
cells or the summing board, the first thing that should be attempted is to try and
reset the scale to the factory settings. The factory reset can also be helpful if an
incorrect tare for the scale is set and cannot be removed.
1. Power off the scale display.
2. Remove the cover from the back and switch to the programming position.
3. Power on the scale display.
Troubleshooting Guide
Factory Reset and Calibration
Page 1 of 10
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Transcell Technology Predator SS
Summary of Contents for Transcell Technology Predator SS
- Page 1 Predator SS and Predator XS TRANCELL TS-500 Scale Reset and Troubleshooting Guide When trying to determine if there is a problem with the either the load cells or the summing board, the first thing that should be attempted is to try and reset the scale to the factory settings.
- Page 2 ZERO 4. Press the button. << >> 5. A value of 4,000 should be set, using the buttons. SET / NET GROSS 6. Press the button. UNITS 7. Press the button. PRINT 8. Press the button. ZERO 9. Press the button.
- Page 3 PRINT 13. Press the button. ZERO 14. Press the button. << >> 15. A value of 100 should be set, using the butons. SET / NET GROSS 16. Press the button. UNTS 17. Press the button. PRINT 18. Press the button.
- Page 4 PRINT 33. Press the button. ZERO 34. Press the button. << >> 35. A value of 1 should be set, using the buttons. SET / NET GROSS 36. Press the button. UNITS 37. Press the button. PRINT 38. Press the button.
- Page 5 Print 52. Press the button. Zero 53. Press the button. 54. Place a known test weight onto the turntable. 55. Key in the known value of the test weight to be used by pressing the UNITS ZERO TARE buttons for up or down. Then press the button to move to the next digit and so on….
- Page 6 Testing Load Cells If resetting the scale to its factory state does not solve the problem, then there may be a problem with one or more of the load cells. For each load cell to function properly, each cell must be powered and have at least 10V on the excitation circuit (see data sheet below).
- Page 7 Furthermore, the maximum signal or output voltage should be no more than 3V. Nominally the load cell should put out a voltage of somewhere between 0-3V when a load is present on the scale. You can test the voltage of both the output and excitation circuits at the summing board.
- Page 8 Erroneous Readings and Noise Sometimes there can be noise in the signal from the summing board to the display. This can cause the display to show erroneous readings. To reduce the chance of this happening, it is good practice to make sure that the exposed wire at the end the data cable between the summing board and the display is well shielded.
- Page 9 Page 9 of 10...
- Page 10 Short Calibration Procedure Page 10 of 10...
