Transcell Technology CS Series Operation Manual

Digital counting scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

CS Series
Digital Counting Scale
Operation Manual
Revision 1.0
October 31, 1994

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transcell Technology CS Series

Summary of Contents for Transcell Technology CS Series

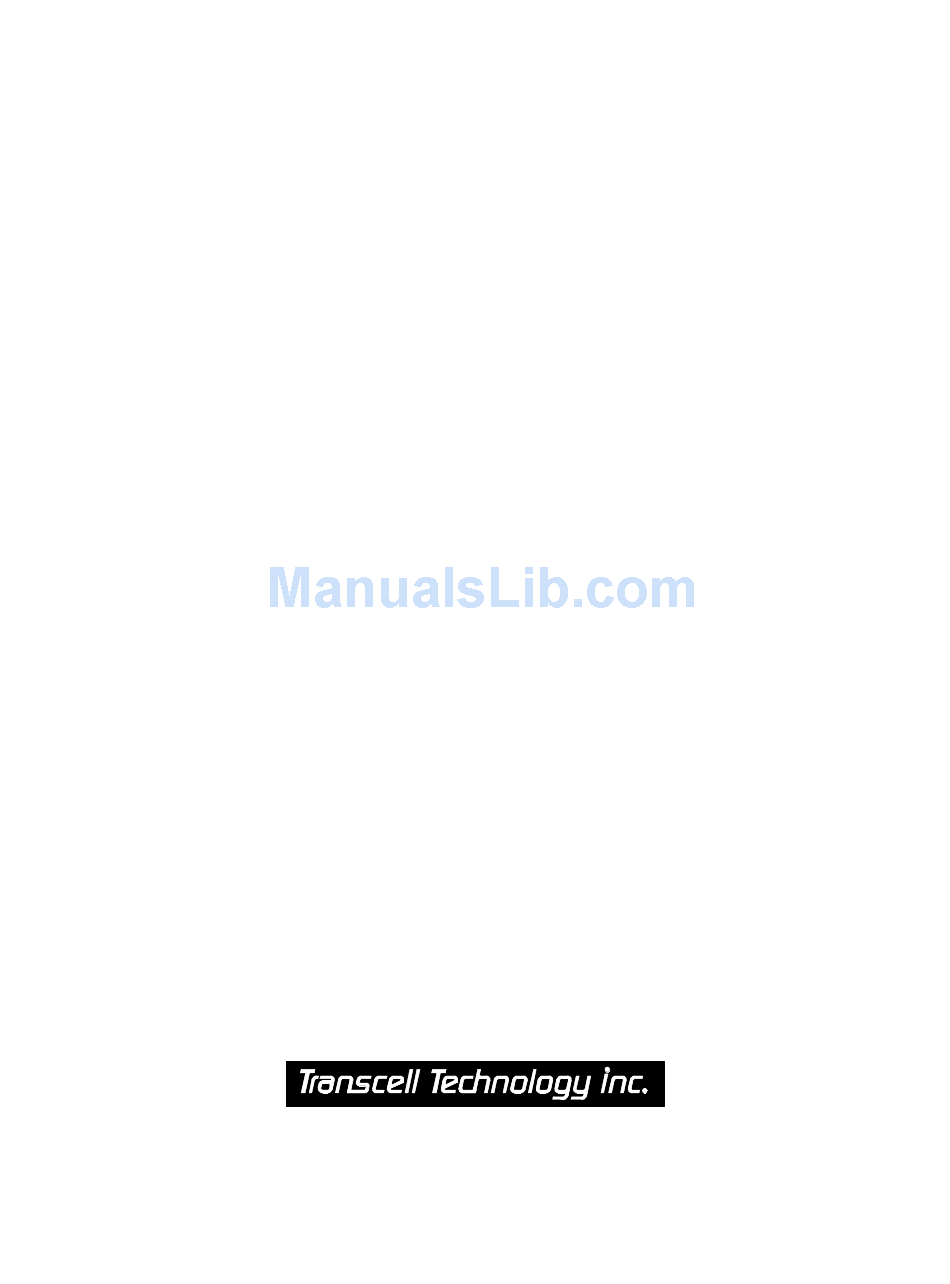

  • Page 1 CS Series Digital Counting Scale Operation Manual Revision 1.0 October 31, 1994...
  • Page 2 © 1994 Transcell Technology, Inc. Contents subject to change without notice. Transcell Technology, Inc. 975 Deerfield Parkway Buffalo Grove, IL 60089 Tel (847) 419-9180 Fax (847) 419-1515...
  • Page 3 To increase this value, turn the trimmer clockwise. 3. Remove the test weight(s) and re-zero the scale. 4. Repeat steps 2 and 3 until the correct weight value is obtained from the scale. CS Series Calibration Procedure...

  • Page 4: Table Of Contents

    Table of Contents Introduction ..........................1 Getting Started ........................2 Basics of Operation ........................ 2 Tare Operation ........................4 Piece Counting Operation....................... 5 Accumulator Function Operation .................... 6 Check Limit Function Operation ..................... 7 APPENDIX A: Specifications ....................8 APPENDIX B: In Case of Trouble................... 9 APPENDIX C: Warranty and Service Information..............

  • Page 5: Introduction

    Introduction The CS Series Counting Scale, available in three bright numerals on a 16-digit VFD type display. A capacities, is an easy to use, high resolution 20-key membrane panel contains all of the counting scale featuring keyboard tare and unit...

  • Page 6: Getting Started

    PIECES WEIGHT ZERO TARE LIGHT ADD SAMPLES CS Series Display Indication - Normal Mode INDICATION MEANING Weight Indicates the gross or net weight in pounds on the platform. This reading is blank when the full scale capacity has been exceeded.
  • Page 7 Adds the current number displayed in the PIECES window to the ac- cumulator. (Memory +) Toggles the scale between current indication and the contents of the accumulator. (Memory Recall) Clears the contents of the accumulator. (Memory Clear) CS Series Operating Manual...

  • Page 8: Tare Operation

    This value negative weight that the scale can show is -9.999 can be entered into the CS Series Counting lbs. Scale by either the push button tare method or For greater accuracy, it is suggested that the the keyboard tare method.

  • Page 9: Piece Counting Operation

    A unit weight value can be keyed into weight. When using the sampling method, al- the CS Series Counting Scale by using the ways count the parts in your hand and place keyboard entry method. Alternatively, the them on the platform all at once.

  • Page 10: Accumulator Function Operation

    Accumulator Function Operation The CS Series Counting Scale comes equipped counts. Much like a pocket calculator, this mem- with a handy accumulator function which works ory can be added to, displayed, and cleared at in conjunction with the piece counting operation.

  • Page 11: Check Limit Function Operation

    TARE LIGHT ADD SAMPLES CS Series Display - Check Limit Setting of 100 4. Press the CHECK key again to return to previous operation. To use the check limit function: 1. Enter the Unit Weight of the objects you wish to count by one of the methods listed under "Piece Counting Operation."...

  • Page 12: Appendix A: Specifications

    Appendix A: Specifications CAPACITY: OVER CAPACITY ANNUNCIATION: CS-1.2: 1.2 lb x 0.0002 lb 103% of Full Scale Capacity CS-6: 6 lb x 0.001 lb OPERATING TEMPERATURE RANGE: CS-12: 12 lb x 0.002 lb 32°F to 104°F CS-30: 30 lb x 0.005 lb (0°C to 40°C) CS-50/60: 60 lb x 0.01 lb POWER SOURCE:...

  • Page 13: Appendix B: In Case Of Trouble

    Scale should be located away AC OUTLET PRIOR TO REMOVING from air conditioners, fans, fume hoods, THE FUSE. etc. A breeze shield may be required. J. A/D converter is not stable or load cell has failed. Return scale for repair. CS Series Operating Manual...

  • Page 14: Appendix C: Warranty And Service Information

    Twelve (12) months from date of shipment from manufacturer. These warranties are made upon the express condition that: 1) Transcell Technology, Inc. is given prompt written notice upon discovery by Buyer of such non-conformity, with a detailed explanation of the alleged deficiencies;...
