Summary of Contents for Campbell Redwing 100

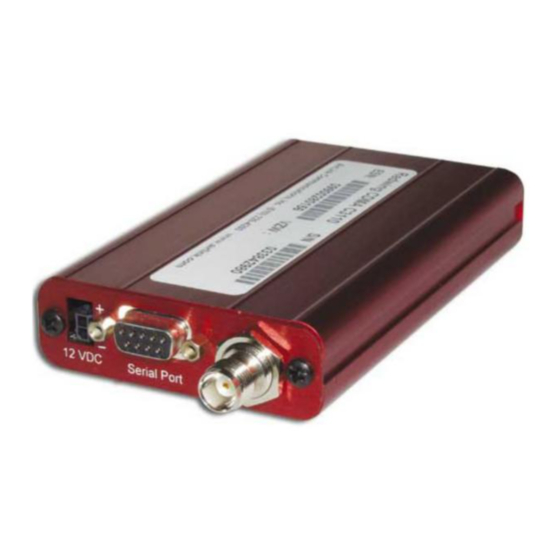

- Page 1 Redwing 100 and Redwing 105 Airlink CDMA Modems 7/04 C o p y r i g h t ( c ) 2 0 0 4 C a m p b e l l S c i e n t i f i c ,...
- Page 2 Warranty and Assistance The REDWING 100 AND REDWING 105 AIRLINK CDMA MODEMS is warranted by CAMPBELL SCIENTIFIC, INC. to be free from defects in materials and workmanship under normal use and service for twelve (12) months from date of shipment unless specified otherwise. Batteries have no warranty.
-
Page 3: Table Of Contents
Redwing CDMA Table of Contents PDF viewers note: These page numbers refer to the printed version of this document. Use the Adobe Acrobat® bookmarks tab for links to specific sections. 1. Introduction..............1 2. Specifications .............1 2.1 Base Station Requirements ...............1 2.2 Datalogger Site Equipment ...............1 2.3 Power Considerations ................2 3. - Page 4 This is a blank page.
-
Page 5: Introduction
9-pin male to 9-pin female cable. • Antenna—the following antennas are available from Campbell Scientific; sites near the edge of the CDMA coverage may require the Yagi antenna. Contact a CSI applications engineer for help in determining the best antenna for your application. -
Page 6: Power Considerations
System ID (SID). You may need to ask for this. 3.2 Program the Modem Program the modem with CELLSET.EXE, available from Campbell Scientific, Inc. The appendix describes how to program the modem via a terminal emulator; however, programming via a terminal emulator is NOT recommended. -
Page 7: Setup Loggernet
Redwing100 and Redwing105 AirLink CDMA Modems 3.3 Setup LoggerNet Select Add Root | TapiPort. Add a TapiRemote to the TapiPort. Add a datalogger to the TapiRemote. On the TapiPort page, select your installed modem on the Tapi Line. On the TapiRemote un-check “Use Tapi Dialing Properties.“ Enter the phone number of the CDMA phone. - Page 8 Redwing100 and Redwing105 AirLink CDMA Modems This is a blank page.
-
Page 9: Configuring Modem With A Terminal Emulator
Appendix A. Configuring Modem with a Terminal Emulator Programming the modem with a terminal emulator is not NOTE recommended. Please first attempt programming with the CELLSET.EXT program available from Campbell Scientific, Inc. Items needed: • Computer with a COM port. •... -
Page 10: Programming The Redwing's Phone Number
Appendix A. Configuring Modem with a Terminal Emulator Apply power to the modem and connect it to the computer via the 9-pin serial cable. Enter the following AT command: at+ipr=9600 and then press Enter. This has now changed the baud rate from 115200 to 9600. You need to change the baud rate in HyperTeminal to 9600 now. -
Page 11: Programming The Redwing For Use With A Datalogger
Appendix A. Configuring Modem with a Terminal Emulator A.3 Programming the Redwing for Use with a Datalogger The Redwing needs a few settings changed in it to power-up ready to work with the datalogger. Enter the following: • Type AT+ATINIT=&C1&D0S0=1$QCVAD=4%+IFC=0^0,C,%,^ then press Enter. - Page 12 Appendix A. Configuring Modem with a Terminal Emulator This is a blank page.
- Page 13 This is a blank page.
- Page 14 Campbell Scientific Companies Campbell Scientific, Inc. (CSI) 815 West 1800 North Logan, Utah 84321 UNITED STATES www.campbellsci.com info@campbellsci.com Campbell Scientific Africa Pty. Ltd. (CSAf) PO Box 2450 Somerset West 7129 SOUTH AFRICA www.csafrica.co.za sales@csafrica.co.za Campbell Scientific Australia Pty. Ltd. (CSA)
