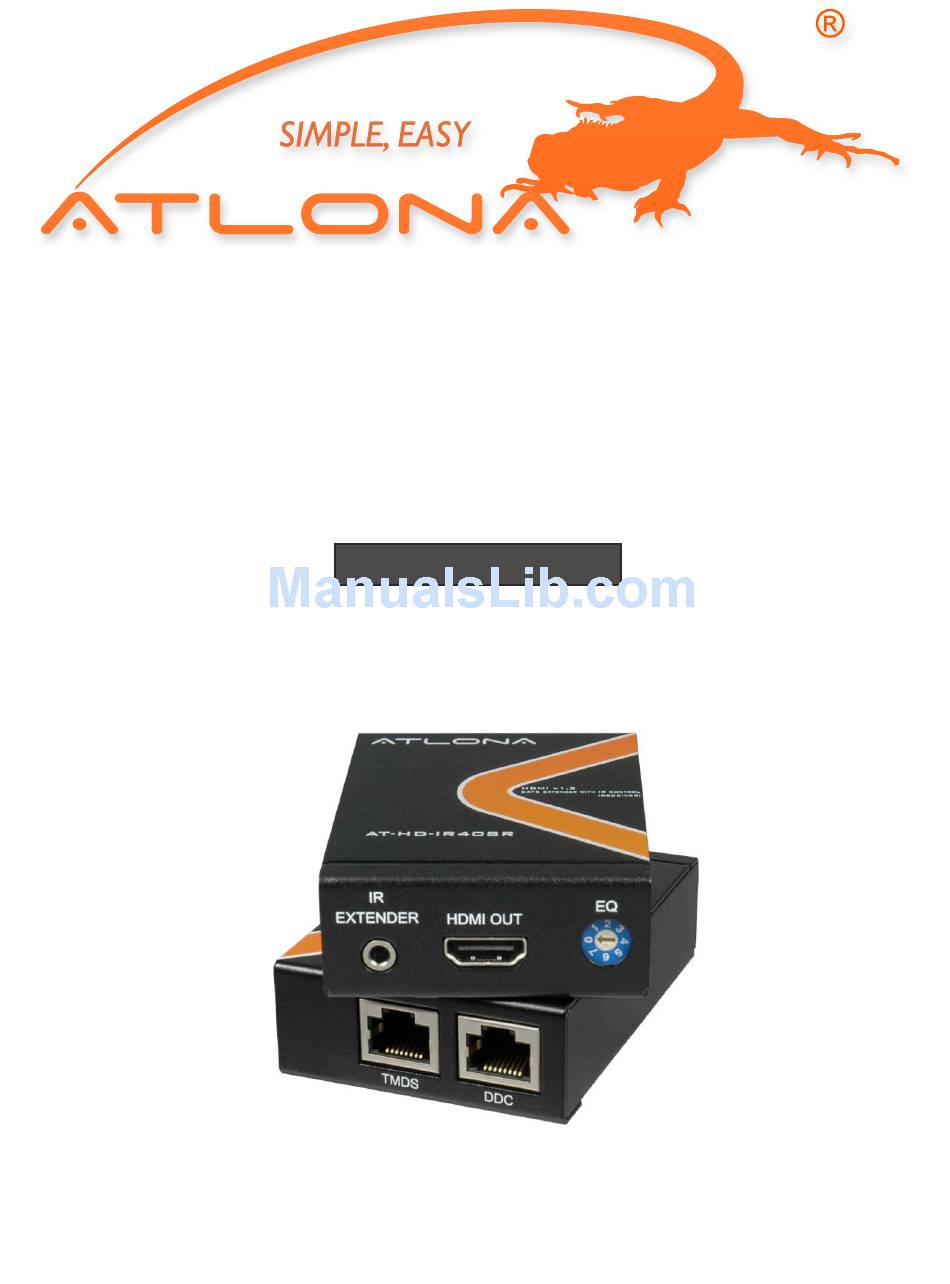

- Page 1 AtlonA HDMI v1.3 Extender over 2 CAT5e Cables with IR AT-HD-IR40SR User Manual...
- Page 2 Introduction The Atlona AT-HD-IR40SR HDMI v1.3 Extender over 2 CAT5e Cables with IR boosts up your video/audio transmission distance up to 60m / 200ft in HDTV 720p / 1080i format. With two low cost CAT-5/5e/6 cables, users can readily extend HDTV sources from DVD players, Blu-ray Disc Player,...
- Page 3 Package Contents • 1x HDMI transmitting unit (AT-HD-IR40S) • 1x HDMI receiving unit (AT-HD-IR40R) • 2x IR extension cable (IR sender & IR receiver) • 1x 5V 4A power adapter • 1x User Manual Technical Specifications • Video Bandwidth: 10.2 Gbps (HDMI 1.3a) •...
- Page 4 Panel Descriptions Front View – Transmitting Unit AT-HD-IR40S IR EXTENDER HDMI IN HDMI IN: Connect a HDMI source with a HDMI M-M cable here IR EXTENDER: Extendable IR sending socket Rear View – Transmitting Unit AT-HD-IR40S 5V DC TMDS TMDS: Plug in a CAT-5/5e/6 cable that needs to be linked to the TMDS connector of the receiving unit AT-HD-IR40R.

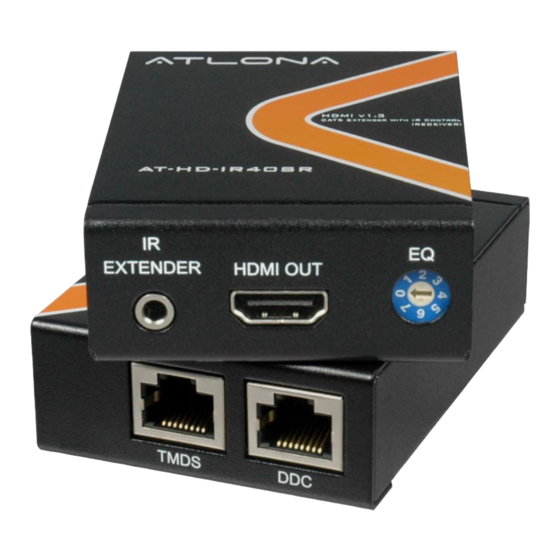

- Page 5 Front View - Receiving Unit AT-HD-IR40R IR EXTENDER HDMI OUT HDMI OUT: Connect a HDMI display with a HDMI M-M cable here. EQ: Adjust the equalization strength to the received TMDS signals. 0-to-7 = strongest–to-weakest. IR EXTENDER: Extendable IR reception socket Rear View –...
- Page 6 Hardware Installation 1. Connect your HDMI / DVI source (such as a DVD player) to the transmit- ting unit AT-HD-IR40S. 2. Connect the IR transmitting cable to the transmitting unit AT-HD- IR40S, and make the IR transmitter directly point to the IR of HDMI source.
- Page 7 For resolution greater than 1080i or 1280x1024, a CAT-6 cable is recom- mended. Contact Information Atlona Address 2151 O’Toole Ave Unit D, San Jose, CA 95131 Phone Toll Free (US & Canada only): 1-877-536-3976 Contact phone: 1-408-954-8782 Fax 1-408-954-8792 Email info@atlona.com...
-
Page 8: Safety Information
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 9: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
