Summary of Contents for Atlona AT-HD-IR40SR
- Page 1 Atlona HDMI v1.3 Extender over 2 CAT5e Cables with IR AT-HD-IR40SR User Manual http://www.atlona.com/...
- Page 2 Safety and Notice The Atlona AT-HD-IR40SR HDMI v1.3 Extender over 2 CAT5e Cables with IR has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the AT-HD-IR40SR should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.
- Page 3 Introduction The Atlona AT-HD-IR40SR HDMI v1.3 Extender over 2 CAT5e Cables with IR boosts up your video/audio transmission distance up to 60m / 200ft in HDTV 720p / 1080i format. With two low cost CAT-5/5e/6 cables, users can readily extend HDTV...
-
Page 4: Package Contents
Package Contents 1x HDMI transmitting unit (AT-HD-IR40S) 1x HDMI receiving unit (AT-HD-IR40R) 2x IR extension cable (IR sender & IR receiver) 1x 5V 4A power adapter 1x User Manual Technical Specifications Video Bandwidth: 10.2 Gbps (HDMI 1.3a) ... - Page 5 Panel Descriptions Front View – Transmitting Unit AT-HD-IR40S HDMI IN EXTENDER HDMI IN: Connect a HDMI source with a HDMI M-M cable here IR EXTENDER: Extendable IR sending socket Rear View – Transmitting Unit AT-HD-IR40S 5V DC TMDS TMDS: Plug in a CAT-5/5e/6 cable that needs to be linked to the TMDS connector of the receiving unit AT-HD-IR40R.

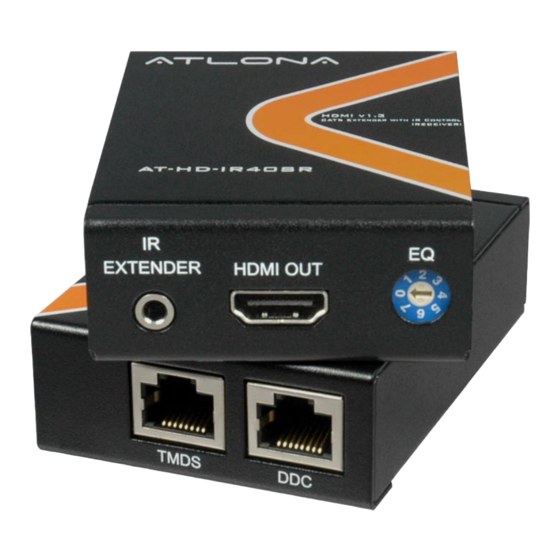

- Page 6 Front View - Receiving Unit AT-HD-IR40R HDMI OUT EXTENDER HDMI OUT: Connect a HDMI display with a HDMI M-M cable here. EQ: Adjust the equalization strength to the received TMDS signals. 0-to-7 = strongest–to-weakest. IR EXTENDER: Extendable IR reception socket Rear View –...
- Page 7 Hardware Installation 1. Connect your HDMI / DVI source (such as a DVD player) to the transmitting unit AT-HD-IR40S. 2. Connect the IR transmitting cable to the transmitting unit AT-HD-IR40S, and make the IR transmitter directly point to the IR of HDMI source. 3.
- Page 8 CAT-5/5e/6 cables. For resolution greater than 1080i or 1280x1024, a CAT-6 cable is recommended. Contact Information Atlona Address 2151 O’Toole Ave Unit D, San Jose, CA 95131 Phone Toll Free (US &...
