EPSON Stylus CX3100/3200
5. Remove the Waste Ink Pad.

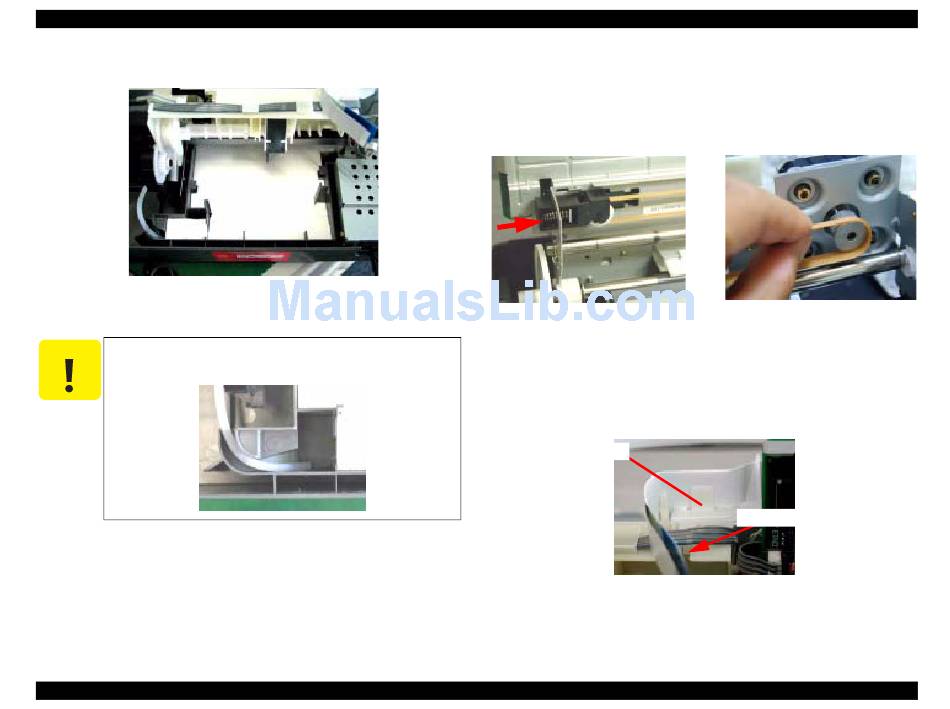

Figure 4-29. Removing the Waste Ink Pad
When installing the Tube Holder Waste Ink Pad, make certain that
C A U T I O N
the tube is placed in the Porous Pad Tray.
Disassembly and Assembly

4.4.5 CR Motor Removal

1. Remove the Middle Housing. (See
2. Loosen the timing belt by pushing the driven pulley holder at the left end of the printer
mechanism and remove the timing belt from the CR Motor pinion.
3. Disconnect the motor lead wires from the connector (CN14) on the Main Board.
4. Disconnect the Print Head FFC from the connectors (CN8 and CN9) on the Main
Board.
5. Disengage the one hook with which the FFC Spacer fastens the clamp to the Holder
Shaft Unit and remove the clamp upward.
FFC Spacer
Disassembly of Printer
"Middle Housing Removal" on page
Figure 4-30. Removing the Timing Belt
Hook
Figure 4-31. Removing the FFC Clamp
Revision A
44.)
50
