Page 1: Operation Guide

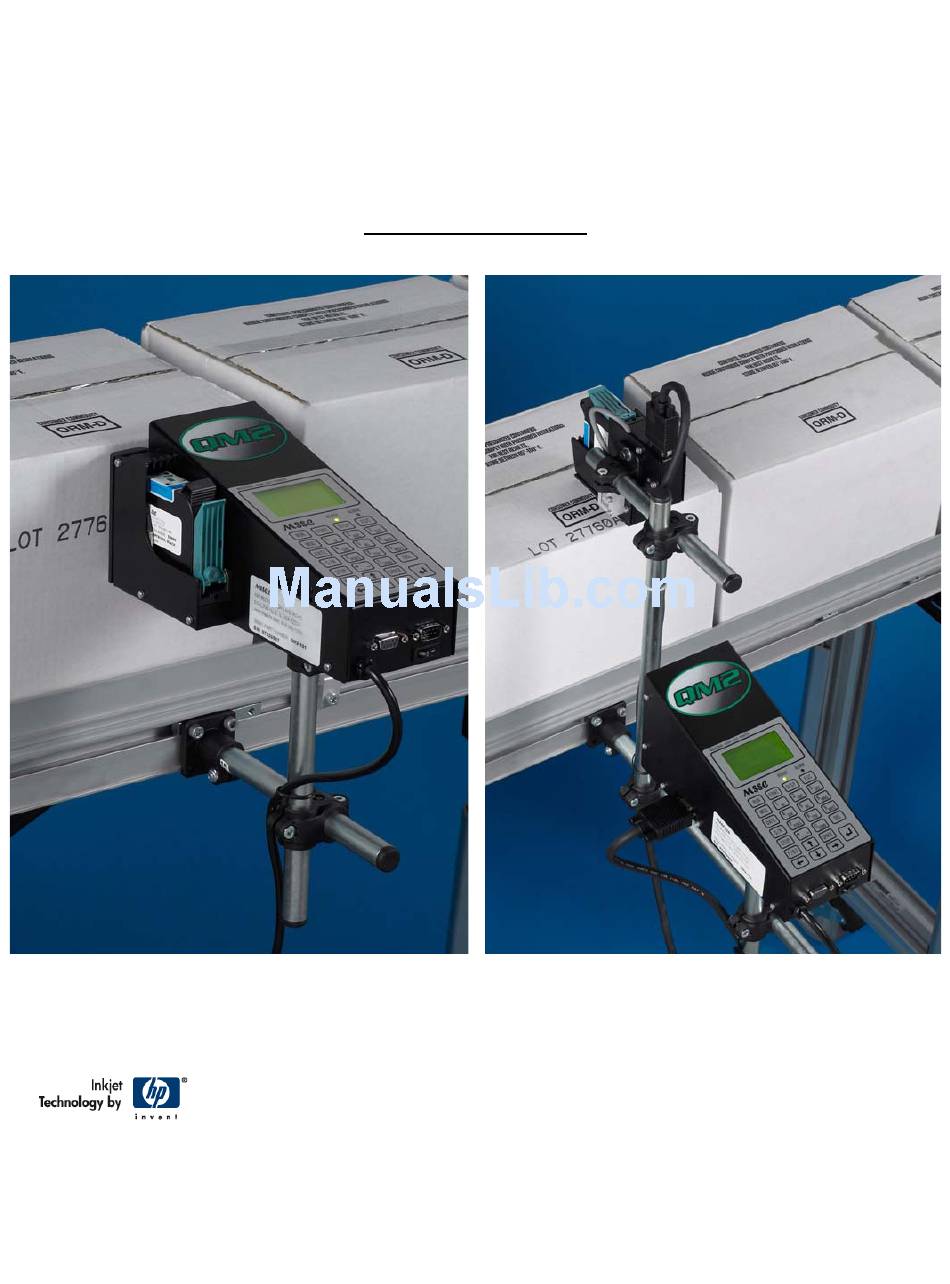

MSSC High Resolution Inkjet Printer Operation Guide QM2-101 QM2-111 Distributed by: American Marking Inc Birmingham, AL USA Tel: 800-964-6275 or 800-685-6275 www.americanmarking.com MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com... -
Page 2: Table Of Contents
Date and Hour Code Table ....................... 21 Key Assignments for Characters ...................... 22 Adjusting the Photo Eye ........................23 Sample Message Instructions......................23 Accessories and Parts........................24 MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com... -
Page 3: Introduction
Introduction Congratulations on the purchase of your new MSSC QM2 Industrial Inkjet Printer from MSSC, LLC. We are confident you will be very pleased with the operation and performance of this durable, quality built machine for many years to come. -
Page 4: Installation
3. Assemble the bracketry to the base clamp. Make sure the bracket is mounted securely. You want to avoid sway and vibration in the print head. This will greatly affect print quality. MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com... - Page 5 14 of the QM2 Operation surges and spikes. For best results, use a dedicated Guide. receptacle on a direct line from the power panel. MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007...
-
Page 6: Key Layout
Lights Run Key Escape Key Message Selection and Editing Date Printing Setup Message Entry Serial Number Setup Keys QM2 setup Alarm Reset Enter Key Navigation Keys MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com... -
Page 7: Startup
AUTO or fire all 600 channels = BOTH), RS485 not used, DRV PULSE not used, SENSR DELAY set in millimeters, GAP 2L adjusts spacing between lines on 2 line special message. Use the arrow keys to navigate and enter key to store changes. MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com... -
Page 8: Operation
Inserts the second digit of a 2 digit month format. 07-20-07 Inserts month number or abbreviation depending on settings in DT TUNE. 07-20-07 or JUL-20-07 Inserts the first digit of a 2 digit day format. 07-20-07 MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007... -
Page 9: Expiration Offset
4. Enter the date in the desired format using the special date characters shown in the previous table. These characters can be found by pressing the FONT key. 5. When finished press ↵ select YES to save and press ↵ again. MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com... -
Page 10: Setup Menu
DIRECT: Sets the direction of conveyor travel as well as mark orientation. • SPEED: Sets the QM2 for the speed the conveyor runs at. This value can be set from 1 to • 60m/min (3 to 200ft/min). MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com... -
Page 11: Dt Tune
INTERVAL: Not used. o S/N COUNT: “COUNT” changes the serial number each time the message is printed. “HOLD” changes the serial number with each activation of the photo eye. MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007... -
Page 12: Serial Numbers
DRV PULSE: This menu controls the print head operating parameters. Parameters in this menu • should only be adjusted under the advice of MSSC, LLC. SENSR DELAY: This setting allows for an overall offset for printing. This setting offsets all •... -
Page 13: Editing And Selecting Messages
Inserts 2 lines of text with adjustable line spacing Inserts the equivalent of 4 spaces Inserts the equivalent of 5 spaces Inserts the equivalent of 10 spaces Inserts the equivalent of 15 spaces MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com... -
Page 14: Creating Or Editing 2 Line Text
4. Select Yes and press ↵. The QM2 will return to the main screen. 5. The unit is ready to print as soon as the green ready light turns on. If STOP is displayed in the upper left corner, press the RUN key. MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com... -
Page 15: Maintenance
Holding the cartridge in any other orientation could cause air to enter the nozzle, causing streaks in printing. Wipe 5. When finished wiping the nozzle, reinstall the print cartridge and test. MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007... -
Page 16: Adjusting Screen Contrast
1. Remove cap plug from right side of machine. 2. Using a small flat blade screwdriver, rotate the adjustment screw clockwise to lighten or counterclockwise to darken. 3. When finished, replace the cap plug. MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007... -
Page 17: Hp Bulk Ink System Setup
Note: Never exceed 10 inches (254 mm) height difference between printer cartridge and reservoir. Never hold reservoir above printer cartridge. Bulk Ink restraint set-up using the flange clamp Bulk Ink restraint set-up using the base clamp MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007... - Page 18 MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com...
- Page 19 MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com...
- Page 20 MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com...
- Page 21 MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com...
-
Page 22: Appendix
24.4 54.9 25.9 56.4 27.4 57.9 29.0 59.4 30.5 61.0 Date and Hour Code Table Date Code Date Code Distance conversion: 1 inch = 25.4 mm MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com... -
Page 23: Key Assignments For Characters
W X Y Z 9 w x y z * . , - / + = : ’ ( ) # 0 ! $ % & [ ] □ ■ MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007... -
Page 24: Adjusting The Photo Eye
↵. Use the arrow keys to select SET and press ↵ to return to the main message editing screen. 6. Select Yes and press ↵ to save changes. MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007... -
Page 25: Accessories And Parts
Ink Cartridge (42 cc); Blue 55904 Ink Cartridge (42 cc); Yellow 55975 Ink Cartridge (42 cc); VB Premium Black 55350 Texwipe Lint-Free Cotton Cloths (25 per pack) MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 55999 21 Dec 2007 www.msscllc.com...
