MSSC Smart-Jet MAX User Manual

Bluetooth tij inkjet printer, bluetooth technology, 1" tall seamless print area
Hide thumbs Also See for Smart-Jet MAX:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Smart-Jet MAX
BLUETOOTH TIJ INKJET PRINTER
Bluetooth Technology, 1" Tall Seamless Print Area
V'·
�. :, ,
�,.
I
•
S
rn a r t -
J
e t
��
-------�
• •

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart-Jet MAX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MSSC Smart-Jet MAX

Summary of Contents for MSSC Smart-Jet MAX

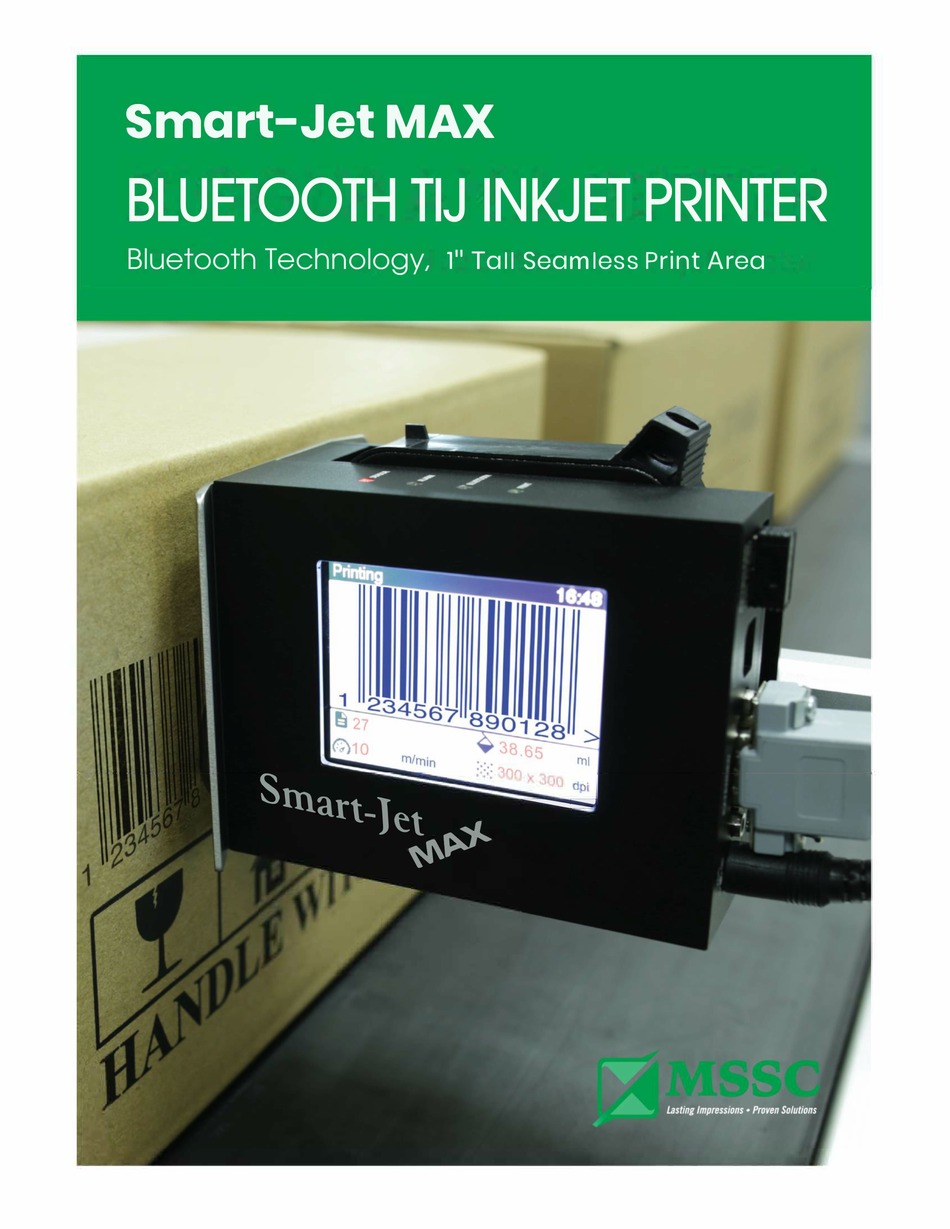

  • Page 1 Smart-Jet MAX BLUETOOTH TIJ INKJET PRINTER Bluetooth Technology, 1" Tall Seamless Print Area -------� rn a r t - • • �� V'· �. :, , �,. •...

  • Page 2: Table Of Contents

    SAFETY INFORMATION ................................4 EMERGENCY CASE ..................................5 ENVIRONMENT PROTECTION ..............................5 PRODUCT WARRANTY................................. 5 ABOUT MACHINE ..................................6 TECHNICAL SPECIFICATIONS ................................7 Machine details .................................... 7 Keyboard ......................................7 MACHINE OVERVIEW ..................................8 Indicator LED ....................................8 Connecting Port ................................... 8 Keyboard ......................................
  • Page 3 Update logo ....................................34 Update font Latin ..................................35 Update font Chinese................................. 35 Machine default ..................................35...

  • Page 4: Safety Information

     Be careful using other external devices such as: ENCODER / SENSOR / ALARM  BEACON / POWER SUPPLY. Do not use other cartridges that are not supplied by MSSC.  Be careful updating firmware and software.  Use gloves to avoid the sharp corners from the mounting brackets.

  • Page 5: Emergency Case

    EMERGENCY IN THE OCCURANCE OF SMOKE, FIRE, EXPLOSIVE SOUND, CONTINUOUS PRINTING OUT OF CONTROL, ETC. PLEASE REMOVE THE POWER SUPPLY IMMEDIATELY! ENVIRONMENT PROTECTION DO NOT THROW PRINTER/ INK INTO RECYCLE BIN PRODUCT WARRANTY Limited warranty. The housing and circuit board for each printer is warranted to be free from defects in materials and workmanship for a period of twelve (12) months from the bill of lading date.

  • Page 6: About Machine

    ABOUT MACHINE Thank you for purchasing the SMART JET MAX Thermal Inkjet Coder, a product of MSSC, USA. This printer is designed for package printing applications powered by Thermal Inkjet Technology. This machine produces crisp text, logos, variable data and barcodes on porous and...

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS Machine details DESCRIPTION SPECIFICATIONS SMART JET MAX Model Display LCD 2.8” automatic rotation Dimensions (LxWxH) 110 x 74.5 x 92.5 mm / 4.33 x 2.93 x 3.64 inches Weight 405g (~1 lb.) Power supply 12V DC - 5A Maximum power consumption Maximum printing resolution 300x300 dpi...

  • Page 8: Machine Overview

    MACHINE OVERVIEW Indicator LED ITEMS DETAIL Default does not recognize black conveyor Internal sensor: Red light [1] SENSORS External sensor: Green light Sensor light is activated when it receives a signal [2] ALARM Remains ON to indicate error [3] BLUETOOTH/PC Remains ON when being connected [4] PRINT Remains ON when in printing mode...

  • Page 9: Keyboard

    ITEMS DETAIL [1] USB FLASH USB 2.0 flash for updating firmware, fonts and logo [2] USB KEYBOARD For USB 2.0 wireless keyboard receiver [3] USB PC For PC connection with USB 2.0 cable A-B [4] DB15 EXTENDED Extend port for external sensor, encoder, alarm, etc… [5] 12VDC Power supply Keyboard...
  • Page 10 Message MENU SUB MENU DESCRIPTION Select type of font you need to use in messages. Supports two kinds of Select font font: Uppercase font and Normal font. Select size of characters: supports up Create new Select size to 6 sizes with Latin font and 5 sizes Latin / Chinese with Chinese font.
  • Page 11 Prevents the print head from clogging due to the extended down Auto Jet time between prints. This will be useful when you print with solvent base ink with shorter decap time Sensor Select External or Internal sensor Set print direction: : left to right, : right to left, : reverse...

  • Page 12: Installation Procedures

    INSTALLATION PROCEDURES See QUICK GUIDE. GETTING STARTED Install the machine on your conveyor according to the installation instructions. See the Quick Guide for more information. Set print direction and appropriate throw distance to obtain best print quality (1-3 mm).  Insert ink cartridge.

  • Page 13: Encoder

    ENCODER An encoder is recommended to ensure the best print quality if a conveyor has any speed variations. To calculate wheel diameter (D) depend on resolution (R) is: D = R/( x 600) (inches). Example: Encoder has R = 3600 (PPR), D = 1.90985 inches ~ 48.5 mm.

  • Page 14: Combine External Sensor And Encoder

    COMBINE EXTERNAL SENSOR AND ENCODER In some cases you may need to use an external sensor and encoder to get perfect printing results but the machine only has one extended port. Please connect per the following instructions to make external sensor and encoder work together with machine. See picture for this situation.

  • Page 15: Alarm

    ALARM Allow users to monitor operation of Machine from distance via the light signals from the Alarm. This table below will show details of each pin on DB15 port that the alarm beacon will use: PIN ON DB15 PORT VALUE DESCRIPTION The printer may Stop print because of the reasons below:...

  • Page 16: Input And Output

    The value of Ink Level (Setting  Cartridge  Ink Level) on machine is lower than 5.0 ml. Ink Low The smart card was implemented onto each cartridge to allow the printer and software to recognize the current ink volume inside each cartridge. Ink Out The value of Ink Level on machine is lower 0.4 ml.

  • Page 17: Keyboard Setup

    Keyboard setup Insert the receiver of wireless keyboard to USB port (port 2) on machine, remove the  protected stamp in the battery slot and turn on the button on the back of the keyboard to begin operating the machine with a wireless keyboard. From the main screen of machine, use ...

  • Page 18: Firmware Introduction

    Press “ESC” to exit. Select Press “Insert” to insert more data, “Save” and input name to variable, barcode, logo, … save your messages 2. Create Chinese message Select Create Chinese Select Normal/Custom font Input "ni". Press 1 - 5 to select Select font size and lines Press “Insert”...
  • Page 19 While doing this, please be sure printing has been stopped . Create new messages Go to Create Latin to select your desired fonts: Normal font or Uppercase font. Select Normal font to create your message with lower and uppercase characters. Then select your desired font size, number of lines and insert fields into message.
  • Page 20 @ [ \ { | } Logo Insert logo or image from Machine into message. Your logo should be updated or setup in the Settings menu. In the input section, press Insert and use  or  arrow keys to move your cursor to Logo and press Enter.
  • Page 21 Example To print the following counter on each object: 001, 003, 005….101, 001, 003, 005 … Start: 1  Current: 1  Reset: 101  Step: 2  Repeat: 1  Up/Down: Up  Fill zero: Enable  Add counter here ...
  • Page 22 Up/Down: Up Up/Down: Up   Fill zero: Enable Fill zero: Enable   Add counter here Add counter here  The two counters will be printed as below: NOTES: Press Enter to apply each setting.  Setup Counter 1, then Counter 2. ...
  • Page 23 In the input section of Edit Messages, press Insert and use  or  arrow keys to move the cursor to Expired and press Enter. Input the format of the expired date in Format (similar format as the current date). ...
  • Page 24 Text: Select Enable to display barcode value, otherwise select Disable.  Value: Input value for your barcode.  Use  or  arrow keys to move to the cursor to your desired object and change the value. Press Enter after each value change to save and apply settings. Sample prints: First print Second print...

  • Page 25: Operation

    Shiftcode Insert a Shiftcode into the message. From the designing section, use the arrow keys to move the cursor to your desired position in the message and press Insert. Then use  or  arrow keys to move to Shiftcode and press Enter.

  • Page 26: Settings

    ITEMS DETAIL Prints Number of prints that have been made Ink levels Current amount of ink in the cartridge (ml) Speed Current speed (m/min) Resolution Current resolution (dpi) Stop Change the status of machine from start printing to stop. To stop print, press ESC to go back to the main screen. Use  or  arrow keys to go to Operation, select Stop to stop printing.
  • Page 27 Resolution Set the amount of ink drops per inch. From the Settings menu, use  or  arrow keys to go to Resolution, press Enter. Select your desired resolution and press Enter. Optional resolutions with standalone mode: 300x300 dpi.  300x150 dpi.
  • Page 28 Update logos or images from USB flash to the machine memory. Be sure your new logos are available on your USB flash. Logos stored on your USB flash must be processed by our application (See Convert logo). Machine accepts logo with .hex format only. All logos must be named in order as LOGO1, LOGO2, LOGO3, LOGO4….
  • Page 29 Select Disable to disable random jetting.  NOTES: Time for jetting varies from 10 to 60 , 000 seconds.  This function is useful for Solvent base ink s . W e recommend any user enable this function  with an approximate time of 15-30 seconds to help printing quality when using solvent inks . Sensor Select External or Internal sensor.
  • Page 30 Update different fonts and character sizes for Machine. There can be one font style on the machine at a time. Machine supports the following fonts while working with wireless keyboard. Lines Font 25.4 mm 12.7 mm 8.00 mm 5.92 mm 3.89 mm 2.54 mm Steps to update different font/size:...
  • Page 31 Set time and date for your system clock. From the Settings menu, use arrow keys to go to System clock and press Enter. Go to Date, use  and  arrow keys to change date value and press Enter to apply. Go to Time, use ...
  • Page 32 Step 1 Copy all file of the machine’s firmware to the ROOT FOLDER of USB flash. See table below for more information. Languages File name Index Update 00SC.txt Finnish 01SC.txt Spanish 02SC.txt German 03SC.txt French 04SC.txt Russian 05SC.txt Vietnamese 06SC.txt Chinese 07SC.txt Korean...

  • Page 33: Update Firmware Instructions

    IO signals Select to start/ stop the coder from a button. From the Settings menu, select IO signals and press Enter. Then select input to activate Start/ Stop. Reset Reset the memory of the Counter variable within the machine. The memory of the Counter will help you save the current value of Counter even if you stop print or the machine is turned off.

  • Page 34: Update Firmware

    Extract firmware folder (.RAR file) to ROOT folder of USB flash disk.  Insert USB flash disk into USB port 1 on machine.  Update firmware From the main menu, use the arrow keys to go to Settings  About  Update Firmware ...
  • Page 35 Update Logo  Logo 2.  Update Logo  Logo 3.  ……  Update Logo  Logo 20.  Select All to update all logo.  You can skip this step if it is not need for you. Update font Latin This process will take 10 - 15 minutes.
