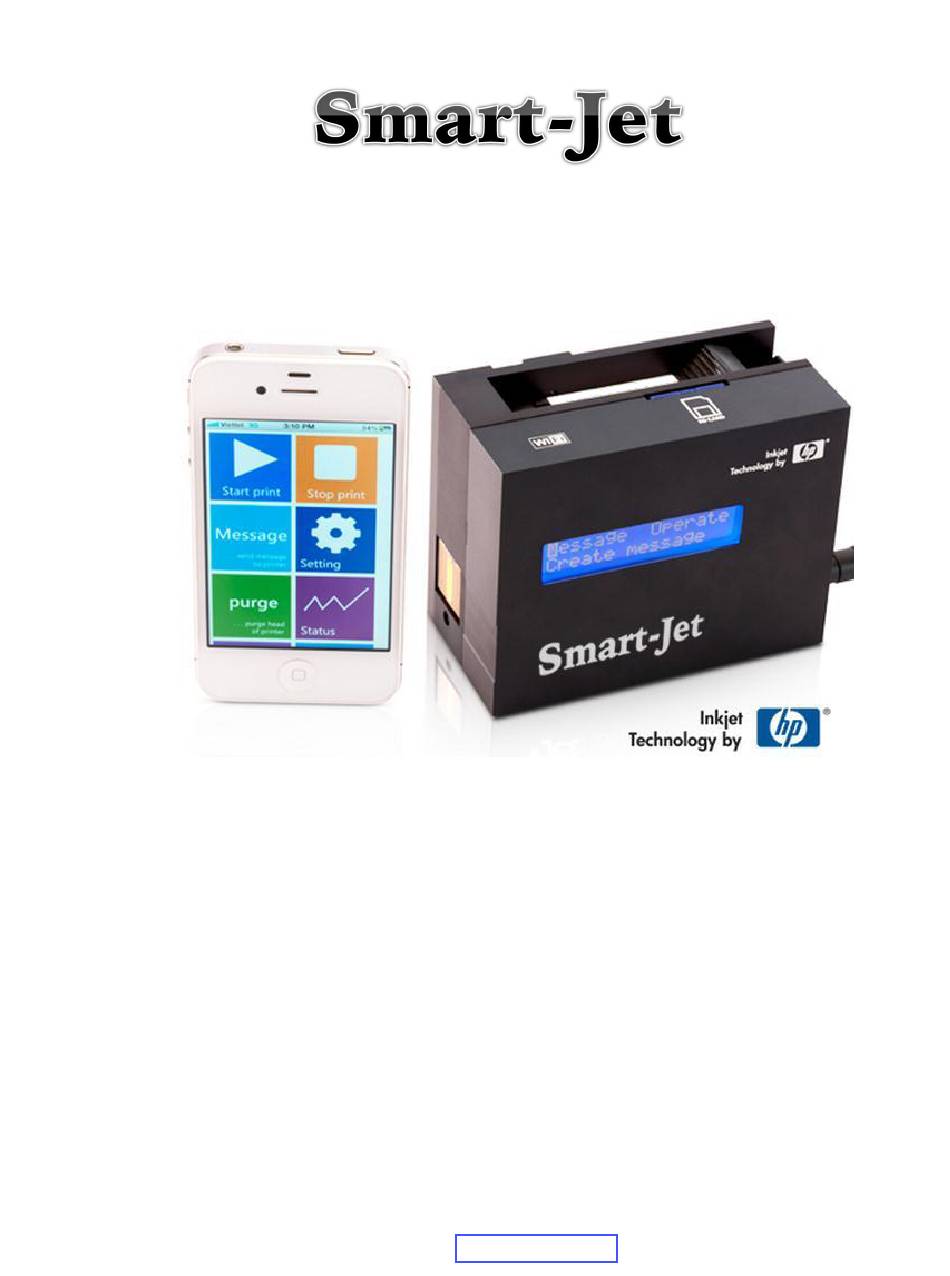

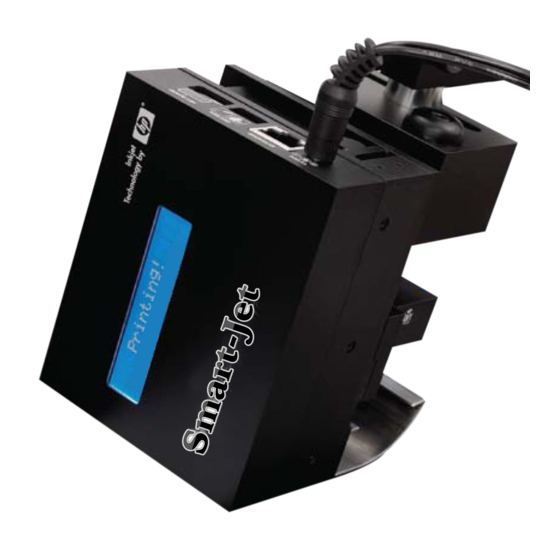

USER MANUAL
80100
MSSC, LLC.
926 McDonough Lake Road.
Collinsville, IL 62234
Telephone: 618-343-1006
Fax: 618-343-1016
Website: www.msscllc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart-Jet and is the answer not in the manual?

Questions and answers

Related Manuals for MSSC Smart-Jet

Summary of Contents for MSSC Smart-Jet

  • Page 1 USER MANUAL 80100 MSSC, LLC. 926 McDonough Lake Road. Collinsville, IL 62234 Telephone: 618-343-1006 Fax: 618-343-1016 Website: www.msscllc.com...

  • Page 2: Table Of Contents

    Specifications .......................... 5 Keyboard Definition ........................ 5 Layout ............................6 Installation ..........................7 External sensor connection ....................11 Feature menu .........................12 First run of your Smart-Jet .....................13 Message ..........................13 10. Operate ..........................14 10.1. Install Ink Cartridge ......................14 10.2. Stop printing ........................17 10.3.
  • Page 3 11.19.2. Ink Level ..........................25 11.20. Default ..........................25 12. Update firmware ........................26 13. Important handling cautions ....................27 14. Product Warranty ........................27 15. Ink Cartridges Maintenance ....................28 15.1. Printhead cleaning: ......................28 15.2. Storage procedure: ......................30 16. Appendix ................................31 Accessories &...

  • Page 4: Introduction

    Note: Smart-Jet can be controlled over Wi-Fi using Apple or Android devices. To download MSSC, LLC App on the Apple App store, search for keywords MSSC or SmartJet. For the Apple device the username to log into the app is Administrator and the password is mssc@smartjet. For Android devices, the username to log into the app is Administrator and the password is mssc@smartjet2012.

  • Page 5: Specifications

    Specifications No. Description Functions Model Smart-Jet Printhead Drop-On-Demand Thermal Inkjet: TIJ2.5 Printing Technology Drop-On-Demand Thermal Inkjet 300 dpi @ 75 m/min Resolution & Print Speed 150 dpi @ 150 m/min 100 dpi @ 230 m/min Ink Type Water-based and solvent-based inks...

  • Page 6: Layout

    Layout Skid plate Note: For a detailed drawing including sizing, please see appendix of this manual MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...

  • Page 7: Installation

    Installation Step 1: The skid plate guide MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...
  • Page 8 Step 2: Install base clamp to the side of the conveyor Step 3: Installing the clamps to the round bar MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...
  • Page 9 Step 4: Installing the printer, select the suitable bar length for each case  Case A  Case B MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...
  • Page 10 # 80805 needs to be purchased separately. See page 31 Step 5: Installing the skid plate Notes: Push the cover plate fit to the printer when assembling the skid plate MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...

  • Page 11: External Sensor Connection

    Appropriate power supply: 24 VDC 4 3 2 1  Using onboard 12VDC (for 5VDC use pin 2 instead of pin 1)  Using external power supply MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...

  • Page 12: Feature Menu

    “advance” Enter password: Press Ctrl Wave form setting Water Solvent Voltage Time Notes:  ContPrint: Continuous print  Res: Resolution  Dens: Density  ProdCount: Product count MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...

  • Page 13: First Run Of Your Smart-Jet

    See Section 11 “Setting” Notes  The Smart-Jet printer can print 2 lines for small fonts and 1 line (as Line 1) for big fonts. Each message contains up to 60 characters/ line for small fonts and up to 60 ...

  • Page 14: Operate

    - Step 1 to 5 and step 8 apply for ink cartridges - Step 1 to 8 apply for bulk system 1. Be sure you turn off Smart-Jet printer before inserting. 2. Pull to open the latch 3. Remove the old/empty ink cartridge 4.
  • Page 15 Too high nozzle-to-substrate spacing will degrade print quality (fuzzy text), because the ink droplet is less likely to hit the targeted position of the printed substrates. MSSC, LLC recommends a nozzle-to- substrate spacing of 1.0mm to 1.5mm when using the water-based inks.
  • Page 16 Printhead removal The ink cartridge/bulk without ink 1. Be sure you turn off the Smart-Jet printer before inserting. 2. Pull to open the latch. 3. Grasp both sides of the print head to remove it from the printer stall. Do not pull on the...

  • Page 17: Stop Printing

    230 m/min at 100 dpi, density = 1 11.2. Resolution Resolution is the number of dots per inch (Unit: DPI) On the “Setting” menu, move the cursor to “Res” and press Enter MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...

  • Page 18: Density

    Density level is set to change the optical density of the print. Higher density level may result in bold font. Smart-Jet supports 5 levels of density (from 1 to 5) On the “Setting” menu, move the cursor to “Dens” and press Enter Use the Up ...

  • Page 19: Counter

    The maximum value for Count Step is 250  Current Count will be automatically backed up in case of power failures  To reset counter, go to the count setting and set again MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev32913 www.msscllc.com...

  • Page 20: Logo

    Suff: Add logo at the end of the message Notes:  Logos are formatted by your smartphone and tablet (Android and iOS) and sent to SD card in the Smart-Jet printer Maximum size of logo (W x H): 400 x 150 pixels  11.7. Time Allow user to format, edit and display time.

  • Page 21: Font

    11.10. Print Side Allows user to select the side of nozzles on the printhead to print: Odd or Even side. Smart-Jet printer only prints on one side at a time. On the “Setting” menu, move the cursor to “PrintSide” and press Enter Select your print side by using Left ...

  • Page 22: Sensor

    On the “Setting” menu, move the cursor to “WiFi” and press Enter Connect Smart-Jet to Wi-Fi network to operate it by the smartphone or tablet devices Note: Smart-Jet Wi-Fi is case sensitive. Be sure to type in SSID exactly as it is set up on router Connect ...

  • Page 23: Direction

    11.14. Direction Set the print direction for Smart-Jet printer correlating to the direction of the conveyor On the “Setting” menu, move the cursor to “Direction” and press Enter Select the print format for your message by using Left  or Right  arrow keys. Press enter to save your setting 11.15.

  • Page 24: Shift Code

    Change value of the rollover time by using Up  or Down  arrow keys. Press enter to save your setting. 11.19. Printer Information From the “Setting” screen, move the cursor to “Info” and press Enter. MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...

  • Page 25: Product Count

    82706, set this value at 42mL. For 80375 (Bulk Ink) set this value to 400mL.  Alarm is triggered when 95% of the ink has been used. However, Smart-Jet printer will also print with only 5% of ink left. When inserting a new cartridge, you are required to reset the ink level from ...

  • Page 26: Update Firmware

    Step 2: Copy all data from “SmartJetFirmwareV1.4.1.8” to your SD Card (This can be found at www.msscllc.com). MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816...

  • Page 27: Important Handling Cautions

    Never disassemble Smart-Jet. This will automatically VOID the warranty Product Warranty The Product Warranty for Smart-Jet is effective for 12 months from delivery date. Brackets, keyboard, power supply, and anti-shock mechanism are excluded from the warranty. Please retain these warranties, along with the shipping documents, for future reference.

  • Page 28: Ink Cartridges Maintenance

    5. The use of unapproved, wrong or unstable power supply are used. Ink Cartridges Maintenance 15.1. Printhead cleaning: As Smart-Jet printer is working, if the print quality is degraded, please check on the ink level in the cartridge:  If the cartridge is out of ink, change the new cartridge.
  • Page 29 4. Finally, check the printed image. If the print quality can’t be recovered, repeat this procedure several times. If it still doesn’t work, change the print cartridge. MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev...

  • Page 30: Storage Procedure

    Never hold the printhead more than 10 inches above the ink reservoir when removing the system for storage to avoid getting air in it.  Never hold the printhead below the reservoir to avoid ink leakage. MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...

  • Page 31: Appendix

    16.1. Accessories, Parts, and Inks Smart-Jet Smart-Jet Power Supply: Print Down Kit: 80810 80805 1 Cross Block 1 300mm (12" Bar) Smart-Jet Smart-Jet Latch & Pin: Skid Plate: 80820 80815 MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...
  • Page 32 Mounting Assembly: 80825 80830 2 Cross Blocks 1 Base Clamp 2 200mm (8" Bars) 1 300mm (12" Bar) Smart-Jet Smart-Jet Display and Board: Front Cover: 80841 80835 MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...
  • Page 33 Smart-Jet Pen Driver Board Smart-Jet Bulk Ink with Photocell: Restraint & Bracketry: 80955 80846 Smart-Jet Smart-Jet Remote Mount Bulk Ink: Photocell with Bracket 2 80375 Meter Integrated Cable: 80600 MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 www.msscllc.com...
  • Page 34 Manual Potentiometer and 5 Meter Quick Disconnect Cable and Bracket: Quick Disconnect Cable and Bracket: 80610 80605 Smart-Jet Spring, Slide Mechanism: Smart-Jet Keyboard with USB Cord End: 80855 80850 MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 80100 Rev 28816 34 www.msscllc.com...
  • Page 35 41.1 12.2 42.7 13.7 44.2 15.2 45.7 16.8 47.2 18.3 48.8 19.8 50.3 21.3 51.8 22.9 53.3 24.4 54.9 25.9 56.4 27.4 57.9 29.0 59.4 30.5 61.0 MSSC, LLC Collinsville, IL USA Tel: 618-343-1006 Fax: 618-343-1016 Rev 28816 80100 www.msscllc.com...
  • Page 37 If the keyboard still does not work, it may have been zapped by high voltage and needs to be replaced. P/N: 80850 2. Can I use an encoder? a. No, only the Smart-Jet Plus can use an encoder 3. How far away can it print? a. 2-4mm 4.
  • Page 38 1. The router must use either no security, or WPA/WPA2 iv. Go to the Smart-Jet printer now and then Settings  Wi-Fi  SSID  and then type in the SSID of the router 1. If there is a password, insert it now v.
  • Page 39 6. Can I remove the cartridge with the power on? a. No 7. Why is my screen showing an EEPROM Failure? a. There is a faulty circuit board. Determine the Serial Number and contact MSSC for the correct part number and replacement board 8. Can I name a message? a.
