Summary of Contents for Crestron Adagio ABVR-1
- Page 1 Crestron ABVR-1 Adagio Balanced Video Receiver ® Operations Guide...
-
Page 2: Table Of Contents
® Adagio Balanced Video Receiver Crestron ABVR-1 Contents ® Adagio Balanced Video Receiver: ABVR-1 Introduction ..........................1 Features and Functions ....................1 Applications......................... 2 Specifications ......................2 Physical Description....................3 Industry Compliance ....................7 Setup ............................8 CAT5 Wiring....................... 8 Installation ........................ -
Page 3: Adagio ® Balanced Video Receiver: Abvr-1
, CEN-ISERVER Crestron iServer™ Network Audio Server, CEN-IDOCV-DSW Wall Mount Interface for Apple iPod or other Crestron Home CAT5 balanced video source to be installed up to 500 feet (152 m) from the central equipment location. Features and Functions •... -
Page 4: Adagio ® Balanced Video Receiver: Abvr
® Adagio Balanced Video Receiver Crestron ABVR-1 Applications The following diagram shows an ABVR-1 and an ABAR-1 in a residential application. ABVR-1 and ABAR-1 in a Residential Application Specifications Specifications for the ABVR-1 are listed in the following table. ABVR-1 Specifications... -
Page 5: Physical Description

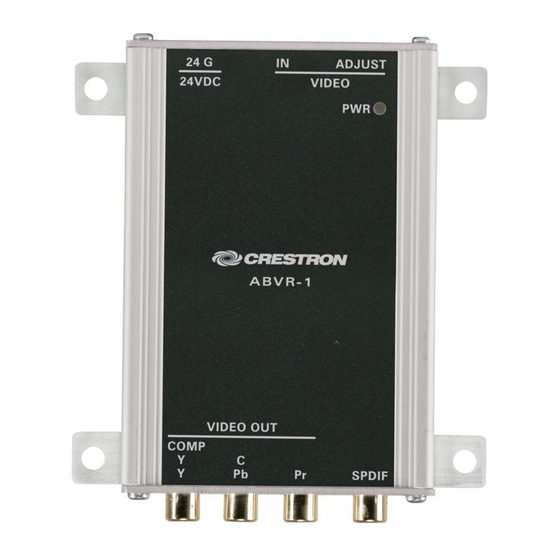

* Actual output signals dependent upon the output capabilities of the CH source device. Physical Description This section provides information on the connections, controls and indicators available on your ABVR-1. ABVR-1 Physical View Balanced Video Receiver: ABVR-1 • 3 ® Operations Guide – DOC. 6792A Adagio... - Page 6 Connectors, Controls & Indicators CONNECTORS DESCRIPTION CONTROLS & INDICATORS 24VDC (1) 2-pin 3.5 mm detachable terminal block 24 Volt DC power input (power supply not included) (Continued on following page) 4 • Adagio ® Balanced Video Receiver: ABVR-1 Operations Guide – DOC. 6792A...
- Page 7 (1) RCA female comprising (1) coaxial digital audio output Output Impedance: 75 ohms Output Level: 0.5 V nominal 1. Interface connector for the 24VDC port is provided with the unit. Balanced Video Receiver: ABVR-1 • 5 ® Operations Guide – DOC. 6792A Adagio...
- Page 8 2. This eight-pin RJ-45 port provides connectivity to a device with a CH input port or a Crestron device with a CAT5 video input. This port provides component or composite balanced output over CAT5 wiring. Refer to the following table for connector pinouts.
-
Page 9: Industry Compliance
Adagio Balanced Video Receiver Industry Compliance As of the date of manufacture, the ABVR-1 has been tested and found to comply with specifications for CE marking and standards per EMC and Radiocommunications Compliance Labelling. Federal Communications Commission (FCC) Compliance Statement This device complies with part 15 of the FCC rules. -
Page 10: Setup
Wiring Reference Guide (Doc. 6137), which is available for download from the Crestron website (www.crestron.com/manuals). Installation The ABVR-1 can be mounted in a rack or to any surface using the integral mounting flanges. Mounting hardware is not provided. Hardware Hookup... - Page 11 ® Crestron ABVR-1 Adagio Balanced Video Receiver Hardware Connections for the ABVR-1 NOTE: For CAT5 connections use Crestron Certified Wire. Balanced Video Receiver: ABVR-1 • 9 ® Operations Guide – DOC. 6792A Adagio...
- Page 12 Balanced Video Receiver Crestron ABVR-1 Fine Tuning The output of the ABVR-1 can be adjusted for optimum picture quality using the VIDEO ADJUST control located at the top of the ABVR-1. To adjust the output of the ABVR-1: 1. Connect a video source with a “CH” video output to the VIDEO IN port of the ABVR-1.
-
Page 13: Problem Solving
® Crestron ABVR-1 Adagio Balanced Video Receiver Problem Solving Troubleshooting The following table provides corrective action for possible trouble situations. If further assistance is required, please contact a Crestron customer service representative. ABVR-1 Troubleshooting TROUBLE POSSIBLE CORRECTIVE CAUSE(S) ACTION Device does not... -
Page 14: Reference Documents
Crestron at 1-888-CRESTRON [1-888-273-7876]. You can also log onto the online help section of the Crestron website (www.crestron.com/onlinehelp) to ask questions about Crestron products. First-time users will need to establish a user account to fully benefit from all available features. -
Page 15: Return And Warranty Policies
Purchasers should inquire of the dealer regarding the nature and extent of the dealer's warranty, if any. CRESTRON shall not be liable to honor the terms of this warranty if the product has been used in any application other than that for which it was intended or if it has been subjected to misuse, accidental damage, modification or improper installation procedures. - Page 16 Crestron Electronics, Inc. Operations Guide – DOC. 6792A 15 Volvo Drive Rockleigh, NJ 07647 (2023828) Tel: 888.CRESTRON 06.09 Fax: 201.767.7576 Specifications subject to www.crestron.com change without notice.
