Crestron HD-XSPA Quick Start Manual

HD(I)-XSPA

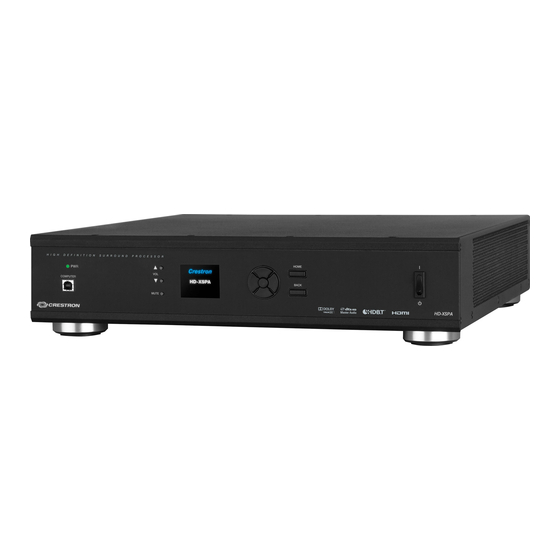

4K Ultra High-Definition 7.1 Surround Sound AV Receiver
The Crestron® HD-XSPA and HDI-XSPA
surround sound processor, high-efficiency eight-channel power amplifier,
4K video switcher, 4K DigitalMedia™ receiver, and Crestron control
interface in a compact 2-space package.
The HD-XSPA and HDI-XSPA are functionally identical. For simplicity
within this guide, the term "HD-XSPA" is used except where noted.
In the Box
1 HD(I)-XSPA, 4K Ultra High-Definition 7.1 Surround Sound AV
Receiver
Additional Items
2 Bracket, Rack Ear, 2U (P/N 2034434)
8 Connector, 2-Pin (P/N 2012361)
1 Connector, 4-Pin (P/N 2003576)
3 Connector, 5-Pin (P/N 2003577)
1 Connector, 8-Pin (P/N 2003580)
HD-XSPA Only
1 Power Cord, 6 ft 7 in. (2 m) (P/N 4512528)
1 Fuse, 10.0 A, Time Lag, 1.25 in. x 0.25 in., Ceramic Cartridge,
250 V (P/N 2017577)
HDI-XSPA Only
1 Power Cord (P/N Varies by country)
1 Fuse, 5.0 A, Time Lag, 5 x 20 mm, Ceramic Cartridge, 250 V
(P/N 2017578)
provide a professional-grade 7.1
Install
Refer to the Safety Instructions
The HD-XSPA can be installed in a rack or placed on a table.
Rack Installation
NOTE: Four feet are preinstalled for tabletop mounting or stacking. If
the unit is to be rack mounted, the feet are not required and can be
removed with a #1 Phillips screwdriver.

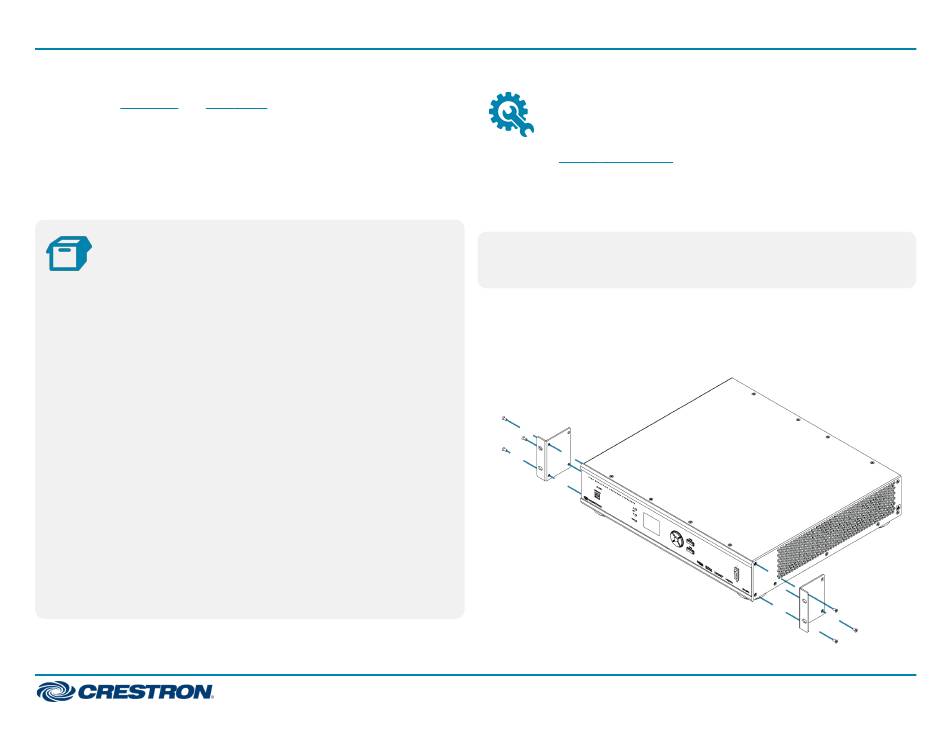

The HD-XSPA occupies 2U of rack space. Use the three screws from the
front part of each side panel, and a # 1 Phillips screwdriver to attach the
two included rack ears to the device, as shown in the following illustration.
Then mount the device into the rack using four rack mounting screws (not
included).
Quick Start
(Doc. 6607) prior to installation.
1
