DO GUIDE
HD(I)-XSPA
4K Ultra High-Definition 7.1 Surround Sound AV Receiver
DO Install the Device
The HD(I)-XSPA can be mounted in a rack or stacked with
other equipment. Two "ears" are provided so that the unit
can be rack mounted. These ears must be installed prior
to mounting. The only tool required is a #1 or #2 Phillips
screwdriver.
WARNING: To prevent bodily injury when mounting or
servicing this unit in a rack, observe the following guidelines:
• When mounting this unit in a partially filled rack, load
the rack from the bottom to the top with the heaviest
component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the
stabilizers before mounting or servicing the unit in the
rack.
CAUTION: To prevent equipment damage, use only the rack
ears Crestron provides for this device.
®
NOTE: If rack mounting is not required, remove the feet from
the bottom of the unit with a screwdriver.

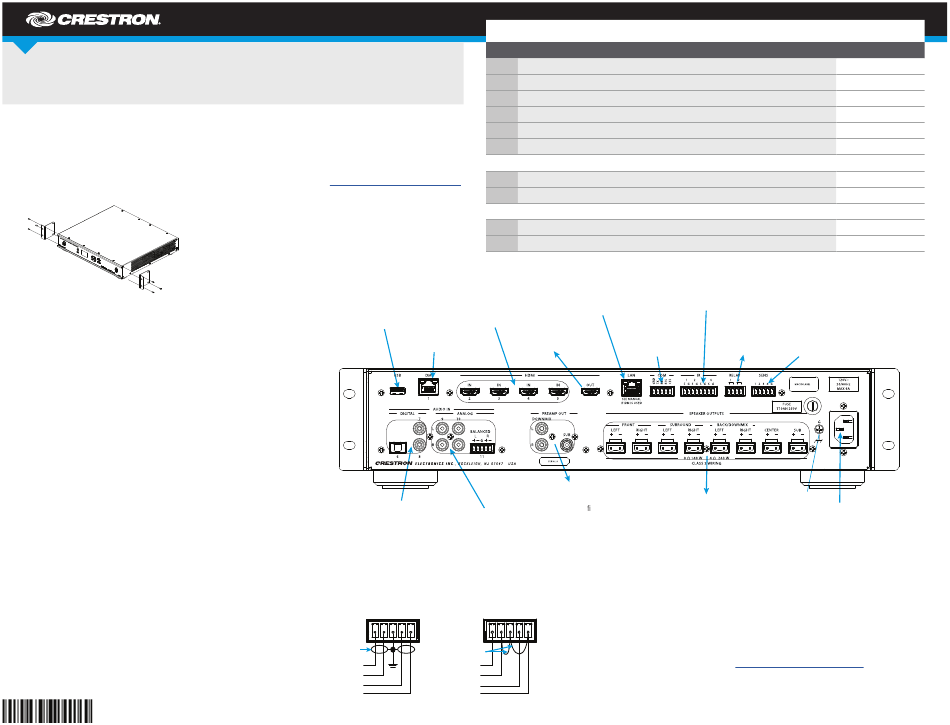

DO Make Connections to the Device
Make the necessary connections to the device as called out
in the diagram to the right. Connect the power last.
CAUTION: Keep the device unplugged until all of the input,
network, and speaker wiring is complete.
CAUTION: Check the speaker wires for shorts and frayed
wiring around the SPEAKER OUTPUTS connectors.
NOTE: The DM and LAN ports are for intra-building use only
and should not be connected to lines that run outside of the
building in which the unit is located.
NOTE: If the DM port is connected to a DM
port should not be connected to the local area network.
Additionally, the DM switch
can be used to configure the
network settings. Refer to
the DigitalMedia™ Design
Guide (Doc. 4546) at
www.crestron.com/manuals
for details.
NOTE: Ensure the unit is
properly grounded by con-
necting the chassis ground
lug to an earth ground
(building steel).
USB:
To HID-Compliant Keyboard or
Mouse
From DigitalMedia Source
AUDIO IN (DIGITAL):
From Digital Audio Sources
One balanced/unbalanced audio input is provided, utilizing a 5-pin terminal block connector. Refer to the following diagrams for
connecting a source.
Wiring for Balanced Input
L
+ - G + -
Shield
+
switch, the LAN
®
Left
+
Right
DO Check the Box
QTY PRODUCT
2 Bracket, Rack Ear, 2U
8 Connector, 2-Pin
1 Connector, 4-Pin
3 Connector, 5-Pin
1 Connector, 8-Pin
1 Cable, USB 2.0, A - B, 6' (1.83 m)
Items for HD-XSPA
1 Power Cord, 6' 7" (2 m)
1 Fuse, 10.0 A, Time Lag, 1.25" x 0.25", Ceramic Cartridge, 250 V
Items for HDI-XSPA
1 Power Cord
1 Fuse, 5.0 A, Time Lag, 5 x 20 mm, Ceramic Cartridge, 250 V
HDMI ® IN: 10BASE-T/100BASE-TX Ethernet to
From HDMI
Sources
HDMI OUT:
DM:
To
HDMI Device
PREAMP OUT:
To Audio
Ampli er
AUDIO IN (ANALOG):
From Analog Audio Sources
Wiring for Unbalanced Input
DO
R L R
While the HD(I)-XSPA can be used right out of the box, the device can be
+ - G + -
further customized with Crestron Toolbox™ or the front panel controls.
For details on using Crestron Toolbox, refer to the Crestron Toolbox help
Jumpers file. For details on using the front panel controls, refer to the HD-XSPA
+ supplemental guide (Doc. 7448) at www.crestron.com/manuals.
Left
+
Right
LAN:
IR:
To IR Controlled Devices
LAN
COM:
To
RELAY:
RS-232 Device
To Controllable Device
SPEAKER OUTPUTS:
To Speakers
Configure the Device
PART NUM.
2034434
2012361
2003576
2003577
2003580
2014966
4512528
2017577
Varies by country
2017578
SENS:
From Sensors
Ground
POWER:
From Line Voltage
