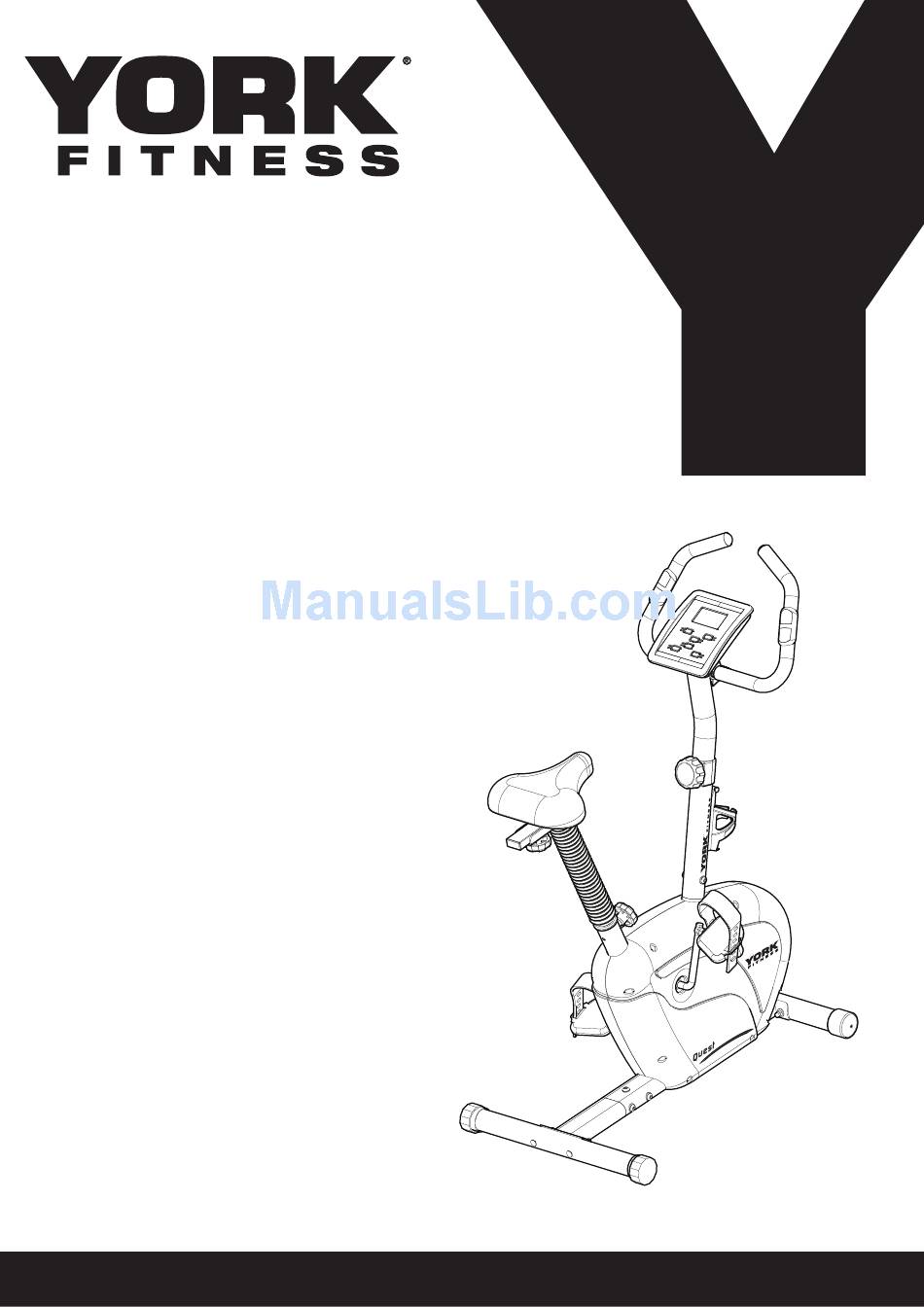

  • Page 1 Owner’s Manual Quest Exercise Cycle 53067 V1.1 27APRIL2012 www.yorkfitness.com...
  • Page 2: Table Of Contents

    Table of contents Congratulations on CONTENTS purchasing your exercise equipment from Safety information Customer support Assembly instructions Operational instructions You have chosen a high quality, safe and innovative piece of equipment as your training partner and we are certain it will keep you Fitness guide motivated on the way to achieving your personal fitness goals.
  • Page 3: Safety Information

    • Due to our continuous policy of product • Replace defective components immediately and development, York Fitness reserves the right to keep the equipment out of use until it is repaired. change specifications without notice. • Use only the adjustment setting as described in the instructions.
  • Page 4: Customer Support

    Underside of the you have bought. main body. IMPORTANT!! - Please retain your sales receipt, York Fitness Customer Care may request proof of purchase to validate eligibility for warranty service. Warranty cover starts from the date shown on the proof of purchase.
  • Page 5: Assembly Instructions

    Assembly instructions PREPARE YOUR WORK AREA - It is important you assemble the product in a clean and uncluttered space. WORK WITH A FRIEND - We recommend you have someone assist you with the assembly as some of the components are quite heavy. OPEN THE CARTON - Check any warnings on the carton and make sure you have it the right way up.
  • Page 6 Assembly instructions STEP 1 L-10 L-9 x 1 L-2 x 4 L-10 x 5 STEP 2 L-3 x 4 L-2 x 4 L-1 x 4 www.yorkfitness.com...
  • Page 7 STEP 3 STEP 4 C-3 x 4 C-4 x 4 Pre-installed screw www.yorkfitness.com...
  • Page 8 Assembly instructions STEP 5 STEP 6 L-8 x 1 L-7 x 1 L-6 x 1 L-4 x 1 www.yorkfitness.com...
  • Page 9 STEP 7 C-7 x 2 A-2 x 4 Pre-installed screw Final Check Your exercise cycle is now assembled. Please make the following final checks: • Make sure all screws / bolts are tightened. • Make sure the equipment is on a flat, level surface. www.yorkfitness.com...
  • Page 10: Operational Instructions

    Operational instructions Console: Batteries Replacement Instructions: Remove the meter from the exercise cycle. Open the battery compartment cover. Remove battery by pulling the battery in direction of spring and lift opposite end upwards. Insert 2 AA batteries ensuring you match the polarity markings (+ and -) on the batteries with the indicators in the battery compartment. Push flat end ( - ) against spring and when clear push other end into holder.
  • Page 11: Display Function

    Key Function: DESCRIPTION • During setup, press RESET button once to reset current setting value. • Press and hold the RESET button for 2 seconds (the monitor will beep) to reset all function values. • Press the button once to add one increment to the current setting value. • TIME setting range: 00:00~99:00 (Each increment is 1:00) • CALORIES setting range: 0~9990 (Each increment is 10) • DISTANCE setting range: 0.00~99.50 (Each increment is 0.5)
  • Page 12 Operational instructions Power On: When power on, the LCD monitor will beep and display all segments. Stand-by Mode: The LCD monitor will enter stand-by mode after 4 minutes of inactivity. Press on any key to wake the monitor. Operation: After power on the monitor for the first time, the user will be prompted to setup the clock and calendar setting.
  • Page 13: Adjusting The Resistance

    Hand Pulse Sensors This exercise cycle is fitted with 2 hand pulse sensors. To obtain a pulse reading you must have both your left and right hands on the sensors at the Hand Pulse Sensor same time. Do not grip the hand sensors too tight and allow the computer a few seconds to display the reading.
  • Page 14: Fitness Guide

    Fitness guide Starting and Finishing Your Workout Begin and end each workout with a Warm Up / Down session - a few minutes of stretching to help prevent strains, pulls and cramps. Correct Cycling Form • Sit on the cycle, with your feet on the pedals and inside the pedal straps. • Ensure that the seat height is adjusted correctly - you should be stable and balanced whilst on the saddle.
  • Page 15: Part List

    How Long Should I Exercise For? That really depends on your current level of fitness. If you’re just starting out on a new exercise program, you should start gradually and build up - do not try to do too much too quickly. 30 minutes, 3 times a week should be enough.
  • Page 16: Troubleshooting

    Troubleshooting If you have a problem with your exercise equipment, before you do anything else please check that all the cables have been connected correctly. Loose cables are very common and many problems can be solved by making sure the cables are properly connected. The following table details the most common problems and how to fix them.
  • Page 17: Part List

    Part list YORK REF. REF. DESCRIPTION QTY. YORK REF. REF. DESCRIPTION QTY. 53067A00 CONOSLE SET 1SET 53067G04 SCREW (M6 X P1.0 X 16L) 2PCS 53067A01 CONOSLE 1PCS 53067G05 SPRING (Ø12 X Ø1.4 X 9T) 1PCS 53067A02 SCREW (M5 X 10L) 4PCS 53067G06 MAGNET...
  • Page 18: Exploded Drawing

    Exploded drawing L-10 www.yorkfitness.com...
  • Page 19 *No. Z - contains the E, F, G, M & H E-14 E-15 E-13 E-12 E-11 E-10 H-13 H-11 H-12 H-10 www.yorkfitness.com...
  • Page 20 www.yorkfitness.com...
