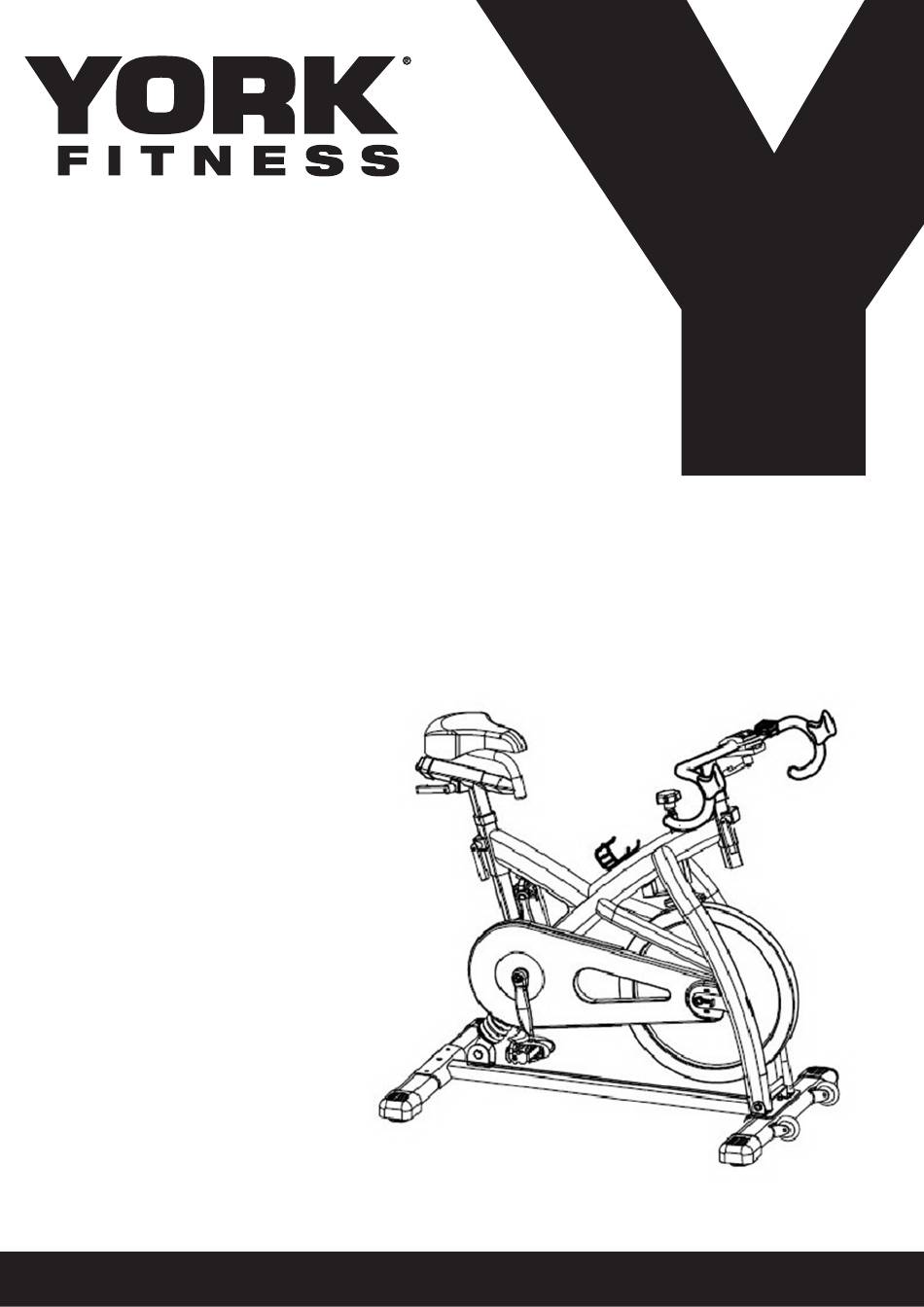

- Page 1 Owner’s Manual 5000SC Indoor Training Cycle Item #53094 September 24, 2014 www.yorkfitness.com...
-
Page 2: Table Of Contents
Table of Contents Congratulations on CONTENTS purchasing your exercise equipment from Safety information Customer support Assembly instructions Maintenance Chart You have chosen a high quality, safe and innovative piece of equipment as your training partner and we are certain it will keep you motivated on the way to achieving your Exploded drawing personal fitness goals. -
Page 3: Safety Information
• Never leave any adjustment devices projecting from the • Due to our continuous policy of product development, equipment. York Fitness reserves the right to change specifications • Always consult your doctor before undertaking any without notice. exercise program. •... -
Page 4: Customer Support
Underside of the main body. IMPORTANT!! - Please retain your sales receipt, York Fitness Customer Care may request proof of purchase to validate eligibility for warranty service. Warranty cover starts from the date shown on the proof of purchase. -
Page 5: Assembly Instructions
Assembly Instructions Prepare your work area - It is important you assemble the product in a clean and uncluttered space. Work with a friend - We recommend you have someone assist you with the assembly as some of the components are quite heavy. Open the carton - Check any warnings on the carton and make sure you have it the right way up. - Page 6 Assembly Instructions Attach the front (16) and rear feet (12) to the frame using the nuts (8), washer (9) and bolts (10). #8 x 4 #9 x 4 #10 x 4 Attach the handlebar post (23) by inserting it into the head tube on the frame. Use the release lever to adjust and tighten the height to the desired position.
- Page 7 Insert the seat post (42) into the seat tube on the frame. Attach the saddle (1) into seat slider (41). Make sure the saddle clamp screw tighten security. Insert the seat slider (41) into the seat post (42) and x. Using release lever (4) adjusts and tightens the height in the desired position.
-
Page 8: Maintenance Chart
Maintenance Chart DESCRIPTION DAILY WEEKLY MONTHLY QUARTERLY ANNUALLY Keep machine clean: Wipe dirty & sweat after use. Wipe anti-rusty oil on handle bar post & seat post set to avoid rust. Visual check Check security of handlebar post & seat clamp Check security of saddle Remove handlebar post and clean tube Remove seat post and clean tube... - Page 9 Notes www.yorkfitness.com...
-
Page 10: Exploded Drawing
Exploded Drawing www.yorkfitness.com... -
Page 11: Part List
Part List YORK REF. REF. DESCRIPTION QTY. YORK REF. REF. DESCRIPTION QTY. 53094-001 SADDLE 53094-035 FLYWHEEL SECURITY NUT 2PCS 53094-002 ALLOY BIND CLAMP ( R/L ) 3 PCS 53094-036 OUTER CHAIN GUARD BOLT (M6) 4PCS 53094-003 RELEASE LEVER SPRING 53094-037 BOLT AND WASHER FOR SPRING BRACKET 2PCS 53094-004... - Page 12 www.yorkfitness.com...
