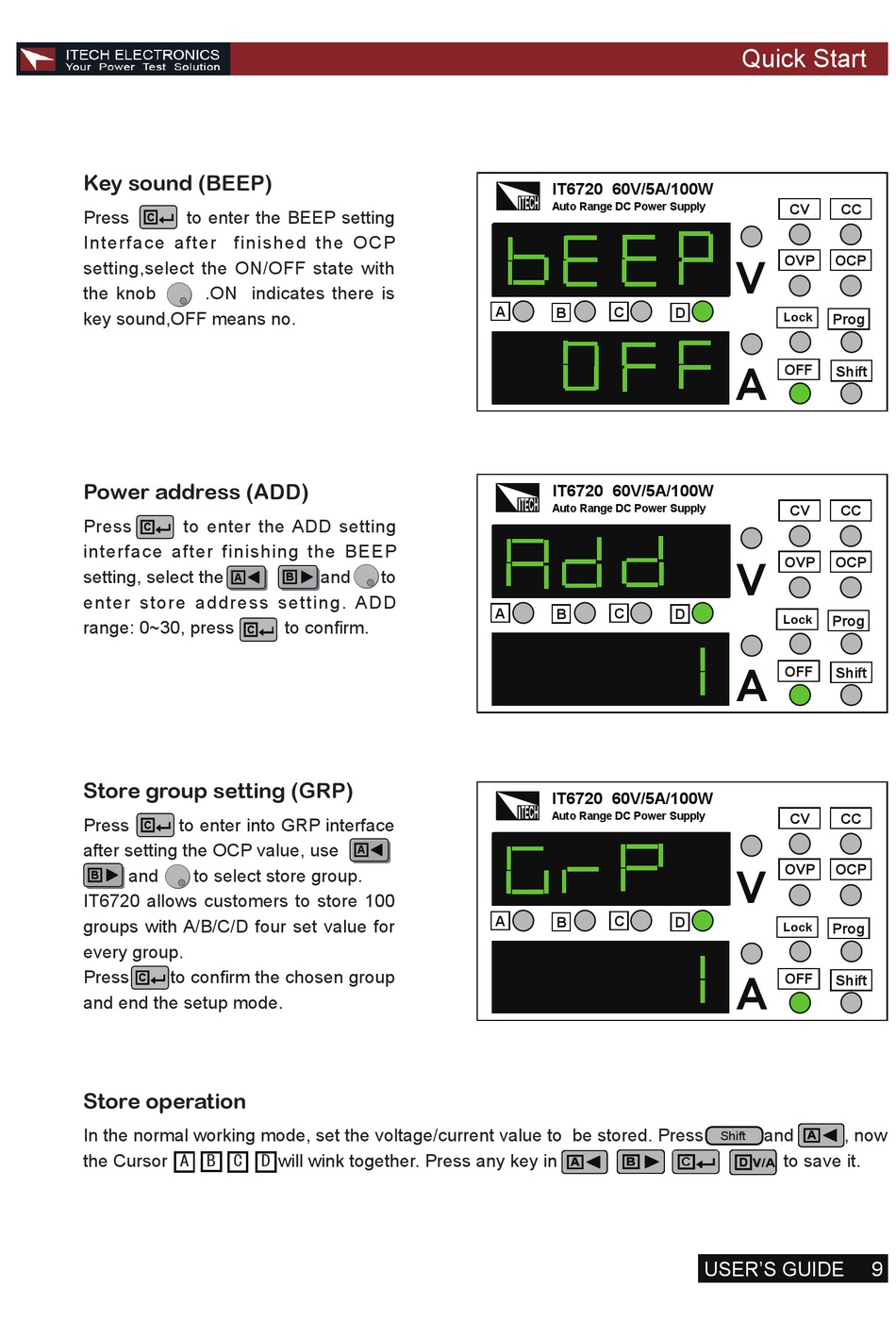

Key sound (BEEP)

Press
to enter the BEEP setting
C
C
C
Interface after finished the OCP
setting,select the ON/OFF state with
the knob
.ON indicates there is
key sound,OFF means no.

Power address (ADD)

Press
to enter the ADD setting
C
C
C
interface after finishing the BEEP
setting, select the
A A
enter store address setting. ADD
range: 0~30, press
C
C
C

Store group setting (GRP)

Press
to enter into GRP interface
C
C
C
after setting the OCP value, use
and
to select store group.
B B
IT6720 allows customers to store 100
groups with A/B/C/D four set value for
every group.
Press
to confirm the chosen group
C
C
C
and end the setup mode.
