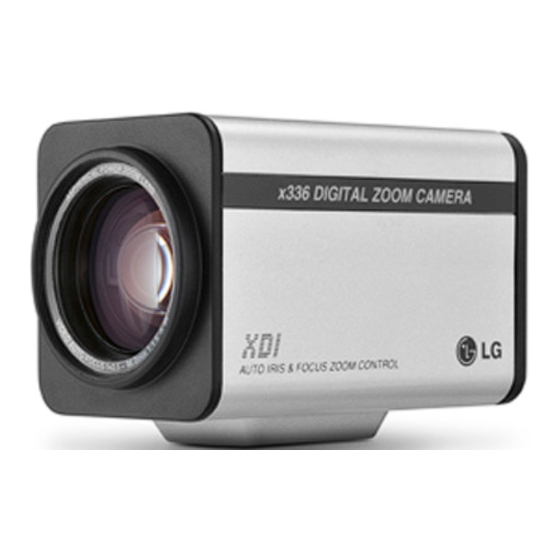

- Page 1 OWNER'S MANUAL Color Video Camera Please read this manual carefully before operating your set and retain it for future reference. MODEL LCZ2850-DN/LCZ2850-DP LCZ2850 series...
- Page 2 FCC WARNING: This equipment may generate or use radio CAUTION frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction RISK OF ELECTRIC SHOCK manual. The user could lose the authority to operate this DO NOT OPEN equipment if an unauthorized change or modification is made.
- Page 3 Caution • Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent • This installation should be made by a qualified service type recommended by the manufacturer. Dispose person and should conform to all local codes. of used batteries according to the manufacturer’s •...
- Page 4 LG Electronics hereby declares that this/ Disposal of your old appliance these product(s) is/are in compliance with the essential requirements and other relevant When this crossed-out wheeled bin provisions of Directive 2004/108/EC, 2006/95/ symbol is attached to a product it means EC, and 2009/125/EC.
-
Page 5: Important Safety Instructions
Important Safety Instructions Read these instructions. and the point where they exit from the apparatus. Keep these instructions. 11. Only use attachments/accessories specified by the manufacturer. Heed all warnings. 12. Use only with the cart, stand, tripod, bracket, or Follow all instructions. table specified by the manufacturer, or sold with the Do not use this apparatus near water. -
Page 6: Cautions For Safe Operation
Cautions for Safe Operation Power Supply Operating and storage location This camera must always be operated a DC 12 V Certified/ Avoid viewing a very bright object (such as light fittings) Listed, class 2 power supply only. during an extended period. Avoid operating or storing the unit in the following locations. -
Page 7: Table Of Contents
Contents Features ..............8 Reset settings ..............32 Reference ............33 Part Names and Functions ........9 On Screen Display ............33 Connections ............11 RS-485 Protocol (Optional) ........35 Specifications ..............37 Power connection............11 Connecting Monitor ............11 Menu Opertaion ..........16 General Operation ............18 Focus settings ..............19 Exposure Settings ............21 White Balance setting ..........23... -
Page 8: Features
Features This color video camera is designed for use in monitoring system. • High resolution and high sensitivity with a 4.5 mm (1/4 Type) Super HAD CCD II. • High magnitude of zoom lens with optical x28, Digital x12 (MAX x336) •... -
Page 9: Part Names And Functions
Part Names and Functions S - VIDEO POWER VIDEO a Camera installation bracket The bracket can be fixed at the top or bottom of the camera. S - VIDEO POWER CONTROL + 12V DC - b Lens mount cap The cap is installed to protect the lens mount section. Remove the lens mount cap before install the camera. - Page 10 Part Names and Functions near. • M(MENU) button: If you want to set up a diverse function, you can push this button. • W(WIDE) button: When push, picture is wide angle. • F(FAR) button: In a manual situation, focus get far. •...
-
Page 11: Connections
Connections Power connection Connecting Monitor Remove the insulation on the power cable as The video signal connection between the camera and the illustrated. monitor or DVR. Attach the terminal tips. Connect to the 12V DC UL Listed, Class 2 Power Supply only on the camera. - Page 12 Connections You can control the PTZ and RS-485 by a pin terminal on the CN 312 * Wire color back side of the camera. ZOOM Green Zoom & Focus Yellow DC Control FOCUS White MENU/HOT A/D Key 2 input Blue A/D Key 1 input Brown S - VIDEO...
- Page 13 Orange Orange Purple Purple CN 312 Gray Gray Connections Black Black • RS-485 Connect • Zoom & Focus DC Control connect CN 312 CN 312 Voltage Range CN 312 ZOOM ZOOM ( + : Tele, - : Wide ) COMMON Vcom + ( 6V~12V) FOCUS ( + : Near, - : Far ) FOCUS...
- Page 14 Connections Schematic diagram of wired remote-control. Function AD(1) Menu S - VIDEO POWER AD(2) TELE AD(3) WIDE AD(4) FOCUS NEAR AD(5) FOCUS FAR VIDEO AD(6) AD(7) AD(8) CONTROL + 12V DC - Function AD(1) AD(2) AD(3) AD(4) AD(5) AD(6) AD(7) AD(8)
- Page 15 Connections The bracket can be installed to either the top of the camera as desired. When changing the position of the camera mounting bracket, you should always reuse the screws that have been removed. Note: If using a camera mounting bracket, select a location that is strong enough to bear the full weight of the camera and the mounting bracket for long periods, and install the camera and mounting bracket securely.
-
Page 16: Menu Opertaion
Menu Opertaion The following table shows the list of menu items and Main Menu Sub Menu Contents options. You can adapt the camera to your requirements by AUTO setting up the respective items in these menus. ONE PUSH INDOOR, Main Menu Sub Menu Contents COLOR TEMP... -
Page 17: Menu Operation
Menu Operation Main Menu Sub Menu Contents Main Menu Sub Menu Contents SMART MD OFF / ON MASK MASK1 to MASK8 NUMBER ZONE ZONE1 to NUMBER ZONE4 MASK OFF / ON STATE ZONE ON, OFF STATE RED, GREEN, 0 to 255 BLUE WIDTH 2 to 8... -
Page 18: General Operation
RESET REBOOT Select [EXIT] option then press [M] to exit the setup PROTOCOL LG / PELCO-D / PELCO-P menu. In the submenu, use [T] or [W] button to select EXIT RET / TOP / END the [EXIT] then use [N] or [F] button to select a mode... -
Page 19: Focus Settings
Menu Operation Focus settings and press [M] to exit the setup menu. • RET: Return to the previous. • TOP: Return to the CAMERA SETTING menu screen. • END: Exit the setup menu. Notes: • [T] button: Use to move upper direction on the menu screen. - Page 20 Menu Operation • ZOOM TRIG: The focus is activated manually. If you Zoom End setting change the zoom, the focus is activated Automatically You can set the zoom end position of the camera. If you and then the focus mode is automatically changed to set the zoom end position, the zoom is operated up to the manual mode.
-
Page 21: Exposure Settings
Menu Operation Exposure Settings AGC (Automatic Gain Control) setting If the images are too dark, change the maximum [AGC] value to make the images lighter. Select [AGC] option on the [EXPOSURE] menu. Use [N] or [F] button to select a value. WDR/BLC setting Use WDR/BLC option to set the options for BLC or WDR camera. - Page 22 Menu Operation • BLC: Camera’s backlight compensation feature helps BRIGHTNESS setting alleviate issues of visibility in high contrast areas. Set You can increase the brightness of the darkened video. the BLC limit. If you set the brightness to lower value, the image is •...
-
Page 23: White Balance Setting
Menu Operation White Balance setting SENS-UP setting If pictures are not clear due to darkness, use for increase the Select the method by which the camera shifts its output sensitivity of picture. colors to compensate for the color of a light source. Select [SENS-UP] option on the [EXPOSURE] menu. - Page 24 Menu Operation When the scene contains mostly high color the proper white balance is approximately temperature objects, such as a blue sky or sunset. 3,200°K. When the scene is dim. > OUTDOOR: The color temperature range for the proper white balance is approximately •...
-
Page 25: Day/Night Setting
Menu Operation Day/Night setting DWELL TIME: Use [N] or [F] button to select a dwell time. BURST MODE: Select [ON] or [OFF] to set the color burst in Night status. • DAY: Color mode enabled. • NIGHT: Black-and-white mode enabled. •... -
Page 26: Motion Detection Setting
Menu Operation Motion Detection setting Use [N] or [F] button to select a zone number on the [ZONE NUMBER]. The motion detection detects the moving objects in the Use [N] or [F] button to set up the ON or OFF on scene by monitoring changes in brightness level. -
Page 27: Privacy Mask Setting
Menu Operation motion is detected. [MASK STATE] option. If you already registered the mask zone and set to ON, the mask zone box appears Privacy Mask setting on the monitor. Select [RESET MASK] and press [M]. If you register the mask zone for the first time, the mask zone box appears on the center of the monitor. -
Page 28: 3D-Dnr Setting
Menu Operation 3D-DNR setting Notes: • If you want to reset the mask zone position, select RESET MASK option and press [M] button. • The parts with the registered mask numbers from MASK1 to MASK4 have the same color. (So do the parts with the numbers from MASK5 to MASK8.) If you change the mask color, the registered mask color will be changed automatically with the same color for... -
Page 29: Special Menu Settings
Menu Operation Special menu settings D-EFFECT (Digital effect) setting You can select the digital effect. Select [D-EFFECT] option on the [SPECIAL] menu. Use [N] or [F] button to select a digital effect. • V-FLIP: Flip the picture vertically. • MIRROR: Turn on the mirror effect. •... - Page 30 Menu Operation Freeze setting Stabilizer setting Select [FREEZE] option on the [SPECIAL] menu. The image stabilizer function minimizes the appearance of shaky images caused by low-frequency vibration. This Use [N] or [F] button to set up the ON or OFF. function is useful for outdoor surveillance.
- Page 31 Menu Operation OSD setting You can set the Function On-Screen Display options using the [OSD] menu. The Function On-Screen Display of this camera can be turned on or off. Select [OSD] option on the [SPECIAL] menu. Use [N] or [F] button to select a [ON] and press [M]. The OSD menu appears.
-
Page 32: Reset Settings
FACTORY RESET: Clear certain settings and information and return to factory default settings. • S/W VERSION: Displays the software version on the monitor. • REBOOT: Reboot the camera system. • PROTOCOL: Select the protocol for the camera communication among the LG, PELCO-D and PELCO-P. -
Page 33: Reference
Reference TITLE TITLE On Screen Display Function Description Format Some of these functions will be displayed every time the None Display Zoom Trigger Mode camera is operated. Auto Mode b c d e f g i j k l Manual Mode Focus Mode TITLE... - Page 34 TITLE TITLE Reference Function Description Function Description Format Format None Display Auto or ATW Mode None Display 3D-DNR is turned off. 3D-DNR White Manual Mode 3D-DNR is turned on. Balance Mode Text: A~Z, One Push Mode User Title User Title 0~9, ‘-’...
-
Page 35: Rs-485 Protocol (Optional)
Reference RS-485 Protocol (Optional) Data Communication Format • Data Length: 1 Byte (8 Bit) • Start/Stop Bit: 1 Bit • Parity Bit: None • Baud rate: 9,600 bps Format Byte 1 Byte 2 Byte 3 Byte 4 Byte 5 Byte 6 Byte 7 Key In or 0xE5... - Page 36 Reference Commands Function Command Description OSD On Key Action Key In E5 87 ID 60 00 14 CS Menu When OSD is being displayed, Enter into the Key Out E5 87 ID 60 FF 14 CS submenu or execute the menu item. Menu Defined Speed Tele Key Action Key In E5 87 ID 60 00 08 CS...
-
Page 37: Specifications
Reference Specifications ITEM LCZ2850-DN LCZ2850-DP Signal System NTSC Total Pixels Number 520 000 Pixels 610 000 Pixels Effective Pixels Number 480 000 Pixels 570 000 Pixels Image Device 4.5 mm (1/4 Type) Super HAD CCD II XDI-II Lens x28 Zoom, F 1.5 (Wide End), F 3.7 (Tele End) - Page 38 Reference ITEM LCZ2850-DN LCZ2850-DP S/N Ratio 52 dB (AGC Off ) 0.01 lx (Sens-up OFF), 0.000 01 lx (Sens-up ON) Minimum Illumination Color 0.2 lx (Sens-up OFF), 0.003 lx (Sens-up ON) Video Output Signal 1 Vp-p Composite (75 Ω) Day & Night...
- Page 39 Reference ITEM LCZ2850-DN LCZ2850-DP Operation Temperature -10 ºC to 50 ºC Storage Temperature -20 ºC to 60 ºC Operation Humidity 0 % RH to 80 % RH Storage Humidity 0 % RH to 85 % RH Weight 420 g Dimension (H x V x D)
