Osburn Matrix Installation and Operation Manual

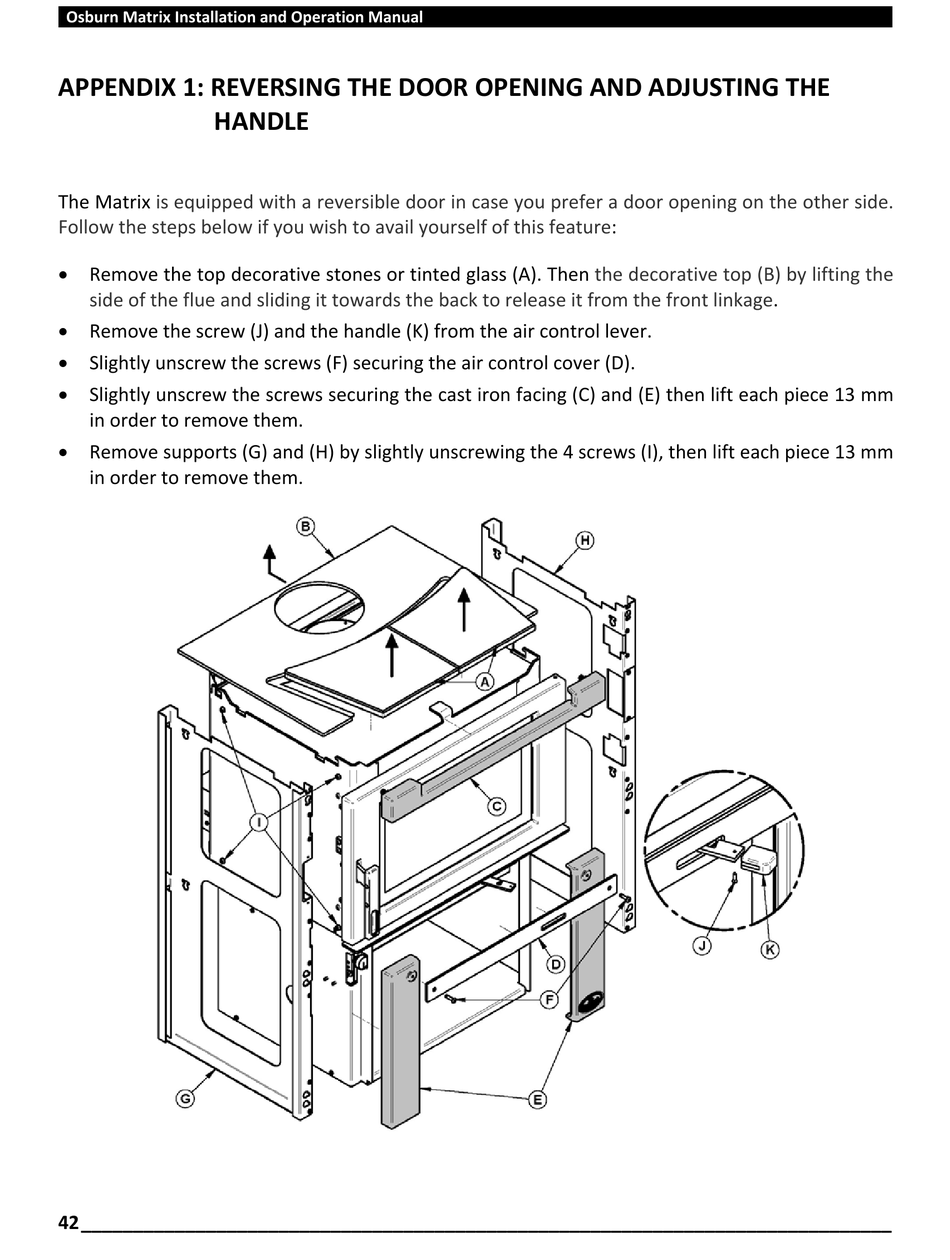

APPENDIX 1: REVERSING THE DOOR OPENING AND ADJUSTING THE
HANDLE
The Matrix is equipped with a reversible door in case you prefer a door opening on the other side.
Follow the steps below if you wish to avail yourself of this feature:

Remove the top decorative stones or tinted glass (A). Then the decorative top (B) by lifting the
side of the flue and sliding it towards the back to release it from the front linkage.
 Remove the screw (J) and the handle (K) from the air control lever.
 Slightly unscrew the screws (F) securing the air control cover (D).
 Slightly unscrew the screws securing the cast iron facing (C) and (E) then lift each piece 13 mm
in order to remove them.
 Remove supports (G) and (H) by slightly unscrewing the 4 screws (I), then lift each piece 13 mm
in order to remove them.
