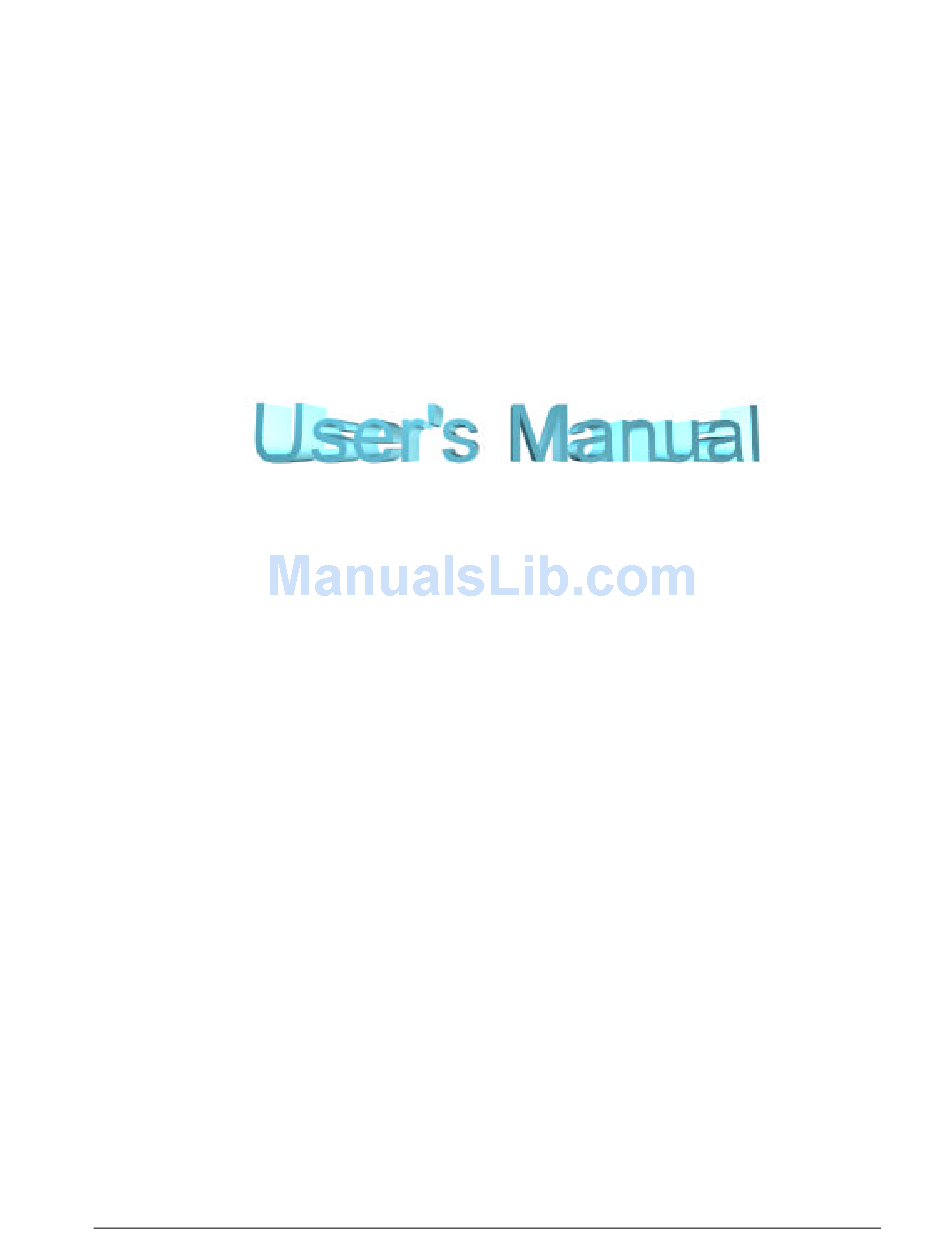

- Page 1 Advanced Pentium II Motherboard IN440EX USER’S MANUAL Copyright © 1998 GVC CORPORATION. ALL RIGHTS RESERVED BCM Advanced Research...
- Page 2 GVC “Corporation or BCM Advanced Research, Inc. Products and corporate names appearing in this manual may or may not be registered trademarks or copyrights of their respective companies and are used only for identification or explanation purposes without intent to infringe.
- Page 3 In normal operation, there shall be no harmful interference caused by this device nor shall this devise accept any interference received, including interference that may cause undesired operation of this product. Microsoft Windows Compliance: Microsoft, Windows NT, Windows, and the Windows Logo are registered trademarks of Microsoft Corporation. BCM Advanced Research...
-
Page 4: Easy Installation
Please recheck all steps to ensure no mistakes H D D , F D D … have been made and then plug in the power cord and turn on the power to enter the BIOS setup, Chapter 4. BCM Advanced Research... -
Page 5: Table Of Contents
SLOT-1 Processor Socket Pinout Processor Upgrade Processor Heat Sink Memory Subsystem DRAM Subsystem DRAM (DIMM) Sockets System BIOS L2 Cache Subsystem Cacheable and Non-Cacheable Regions Address Maps Memory Map I/O Address Map Interrupt Allocation DMA Channels Video Subsystem BCM Advanced Research... - Page 6 Non-volatile CMOS Memory Battery IR (Infra-Red) Support IRDA Header (J19) Miscellaneous Connectors PC Speaker Connector CPU Fan Connector Hard Drive LED Connector Suspend (Sleep) Connector (J27) Power Button Switch (J29) Green/Power-on LED Connector Reset Button Connector (J30) CONFIGURATION Product Configuration BCM Advanced Research...
- Page 7 User password Save & Exit Setup ELECTRICAL AND MECHANICAL SPECIFICATIONS Absolute Maximum Ratings Electrical DC Specifications for 5V and 3.3V Signals Power Supply Power Supply Connectors Input Power Budget Mechanical System Interfaces User-Accessible Sockets Back-Panel Interfaces Manufacturability/Serviceability Regulatory BCM Advanced Research...
- Page 8 Photo Of the Motherboard Drawing of Motherboard I/O Back Plane PS/2 Key/Mouse Parallel GAME Key/Mopuse Serial Line Line BCM Advanced Research...
-
Page 9: Features
PS/2 (Integrated in the FDC37C77X) Mouse Port PS/2 (Integrated in the FDC37C77X) Real Time Clock Integrated in the PIIX4 (DS1287 Compatible) System Monitor Winbond W83781D; Voltage/Temperature/Fan Speed/Chassis Intrusion External Communication Ports Serial Bus Universal Serial Bus (USB), integrated with Core Logic BCM Advanced Research... -
Page 10: System Bios
Floppy. IDE 1&2. CD-Audio In. Modem Audio. Aux-In. Reset switch. Speaker. Suspend/Resume Button. HDD & Power LED. Chassis Fan. Mechanical Board Style MicroATX Form Factor Board Size/Type 9.6” x 9.0”, Four Layer Board Expansion Slots Description Two PCI Expansion connectors and two ISA Expansion connectors BCM Advanced Research... -
Page 11: Introduction
Back-Side-Bus (BSB) and is included within the CPU cartridge. The IN440EX can accept either the Pentium® II cartridge with 512KB of second level (L2) Pipelined Burst SRAM cache. The Pentium® II second level cache supports a direct mapped organization with a write-back policy, providing all necessary snoop functions and inquire cycles. -
Page 12: Memory Subsystem
The A.G.P. is a high performance, component level interconnect targeted at 3D graphics applications and is based on a set of performance enhancements to PCI. The IN440EX is designed to support the A.G.P. Interface. The A.G.P. implementation is compatible with the Accelerated Graphics Port Specification. The system supports only a synchronous A.G.P. -
Page 13: Embedded Pci Devices
PCI Add-in Cards High Performance PCI I/O cards can be used in the IN440EX through the PCI connector slots. The PCI bus is specified to support 10 loads. Each embedded controller or bridge (Video, PCI to ISA Bridge) count as 1 load, each PCI expansion slot used counts as 2 loads. - Page 14 The IN440EX supports the ACPI specification and its key elements; The Operating System Directed Power Management (OSPM). ACPI evolves the existing collection of power management BIOS code, APM APIs, PNP BIOS APIs, and so on into a well-specified power management and configuration mechanism. It provides support for an orderly transition from existing (legacy) hardware to ACPI hardware, and it allows for both mechanisms to exist in a single machine and be used as needed.
-
Page 15: Functional Architecture
The Pentium™ II processor maybe removed and replaced to accommodate Kamath or “Deschutes”. Changes to the VCORE (Core Voltage Selection) are automatically adjusted. Processor Heat Sink The IN440EX M/B provides 12V power for the cooling fan through a 3-pin header with Fan-On control and Fan Speed detection. Memory Subsystem... -
Page 16: Dram (Dimm) Sockets
All system memory, including 0 to 640 KB and all memory present above 1 • MB up to 1GB. System and integrated video controller BIOS. • The system does not cache the following regions: • The video memory block from A0000 to BFFFF. BCM Advanced Research... -
Page 17: Address Maps
PCI memory space on top of main memory. Any access to the PCI or AT bus. • Address Maps Memory Map The following table describes the breakdown of the IN440EX memory areas and how they are assigned. Table 2.5. Memory Map LOCATION SIZE... -
Page 18: Features
Built-in continuous brightness and gamma correction to correct 'dark' images Chroma keying for effective overlay of video on graphics • • Overlay true color video regardless of the current graphics mode New buffer and frame synchronization modes to reduce display tearing • BCM Advanced Research... -
Page 19: 2D Accelerator
128-level command FIFO assures fast response to host command transfers for • maximum CPU/host bus/controller efficiency and concurrent operation Additional 64 entry FIFO dedicated to Bus mastering • • Programmable flat or paged memory model with enhanced host access to a linear frame buffer BCM Advanced Research... -
Page 20: Video Modes
√ √ √ √ √ √ 1024x768 76.2 √ √ √ √ √ √ 1024x768 79.0 √ √ √ √ √ √ 1024x768 96.7 √ √ √ √ √ √ √ √ √ √ 1152x864 45.9 65.0 BCM Advanced Research... -
Page 21: Video Memory
VMA0 DQM#7 DQM#6 VMD31 VMD30 DQM#5 DQM#4 VMD29 VMD28 VMD27 VMD26 VMD47 VMD46 VMD25 VMD24 VMD45 VMD44 VMD43 VMD42 VMD23 VMD22 VMD41 VMD40 VMD21 VMD20 VMD19 VMD18 VMD39 VMD38 VMD17 VMD16 VMD37 VMD36 VMD35 VMD34 DQM#3 DQM#2 BCM Advanced Research... -
Page 22: Video (Monitor) Connector
Description GREEN BLUE LOGIC-GROUND RED GROUND RETURN GREEN GROUND RETURN BLUE GROUND RETURN +5V PULL-UP LOGIC GROUND DDC DAT HORIZONTAL-SYNC VERTICAL-SYNC DDC CLK LOGIC-GROUND LOGIC-GROUND Pins 16 and 17 are connector mounting holes connected to logic ground. BCM Advanced Research... -
Page 23: Sound Subsystem
Sound Subsystem The IN440EX uses the ESS Solo-1 (ES1938), which is a single chip multimedia audio system controller. It includes an integrated FM synthesiser and a Plug and Play PSI interface. The ES1938 is compatible with the Microsoft Windows Sound System standard and will run software written to the Sound Blaster and Sound Blaster Pro interfaces. -
Page 24: 3D Sound
PCI/ISA Expansion Slots ISA Interface The IN440EX incorporates a fully ISA (AT) bus compatible master and slave interface that is compatible with the IEEE 996 specification. The ISA interface also provides byte swap logic and I/O recovery support. The ISA interface supports the following types of cycles: •... -
Page 25: Isa Bus Speed
The IN440EX motherboard support ISA and PCI expansion buses to implement up to two (2) ISA and two (2) PCI slots. The IN440EX will support one (1) ISA, one (1) PCI and one (1) shared ISA/PCI NLX slot. ISA Bus Speed Dividing the PCI clock by 4 generates the ISA system clock. -
Page 26: I/O Subsystem
I/O Subsystem The I/O Subsystem consists of a single component from Winbond. The IN440EX uses the Plug and Play Compatible Ultra I/O Controller “W83977TF”, this device provides support for the ISA Plug-and-Play version 1.0a and includes the recommended functionality to support Windows 95. Through internal configuration registers, each of the W83977TF’s logical device’s I/O address, DMA channel and IRQ channel may be... -
Page 27: Parallel Port
ChipProtect circuitry for protection against damage due to printer Power-On. Reference: J7 (PARALLEL) Connector Type: female, 25 pin metal shell D-SUB Connector Part Number: AMP 750096-3 or equivalent Table 2.18. Printer Port Connector Pinout DESCRIPTION STROBE* BCM Advanced Research... -
Page 28: Keyboard Interface
6-pin metal shield mini-DIN Connector Part Number: AMP 749231-1 or equivalent Table 2.19. Keyboard Connector Pinout DESCRIPTION KEYBOARD-DATA LOGIC-GROUND KEYBOARD-Vcc KEYBOARD-CLOCK SHELL-GROUND SHELL-GROUND SHELL-GROUND Pins 7-9 are, connector-mounting hole pins connected to the metal connector housing Mouse Interface BCM Advanced Research... -
Page 29: Universal Serial Bus Connectors
Mass storage More classes will be identified as the USB Standard matures. The IN440EX is equipped with two USB Serial Ports. This permits connection of two USB peripheral devices directly to the system without an external hub. If more devices are needed, an external hub can be connected to either of the built-in ports. -
Page 30: Real-Time Clock
An external coin-cell style battery provides power to the RTC and CMOS memory when system power is removed. The battery has an estimated lifetime of five to seven years and is socketed for easy replacement. Reference: Socket Type: COIN TYPE BCM Advanced Research... -
Page 31: Ir (Infra-Red) Support
IR (Infra-Red) Support The IN440EX I/O subsystem incorporates an IR interface supporting the following industry standards; Fast IR, IRDA (HP-SIR), ASK-IR. The IR header provides the necessary signal interface allowing a two-way wireless communication port using infrared as the transmission medium. The user can transfer files to/from portable devices such as laptops, PDA’s and printers using application software such as... -
Page 32: Suspend (Sleep) Connector (J27)
Green LED or Power-on indicator (J23). Reset Button Connector (J30) A header is available on the Reset header (J30) for connecting a momentary contact switch on the front panel, which can be used to reset the system. BCM Advanced Research... -
Page 33: Configuration
To select the processor speed install the jumper as follows: Table 3.1. CPU Speed Selection Klamath CPU Speed (MHz) DRAM Subsystem Configurations The IN440EX supports 8 MB to 256MB of system RAM. The allowable memory configurations are shown below: Table 3.2. DIMMs Configurations DIMM0 DIMM1 Total Memory... - Page 34 64MB 16MB 80MB 64MB 32MB 96MB 64MB 64MB 128MB 128MB EMPTY 128MB 128MB 136MB 128MB 16MB 144MB 128MB 32MB 176MB 128MB 64MB 192MB 128MB 128MB 256MB For simplicity other memory configurations were not included on this table. BCM Advanced Research...
-
Page 35: Bios
Different OEMs will require certain user access to advanced functions while other OEMs may not allow the user any access at all. The exact BIOS Menu representation can be extracted from the BIOS supplied with your platform. BCM Advanced Research... -
Page 36: The Main Menu
BIOS FEATURES SETUP SUPERVISOR PASSWORD POWER MANAGEMENT SETUP USER PASSWORD LOAD BIOS DEFAULTS SAVE & EXIT SETUP Esc : Quit : Select Item F10 : Save & Exit Setup (Shift)F2 : Change Color Time, Date, Hard Disk Type... BCM Advanced Research... -
Page 37: Main Menu Selection
Setting a User Password restricts access to the Password BIOS Setup menus or the System Save & Exit Save all changes to CMOS and Exit the Setup Setup Utility Use the “←↑→↓” arrow keys to make a selection. BCM Advanced Research... -
Page 38: Standard Cmos Setup
: EGA/VGA Extended Memory : 15360K Halt On : All Errors Other Memory : 384K Total Memory : 16384K Esc : Quit : Select Item PU/PD/+/- : Modify F10 : Save & Exit Setup (Shift)F2 : Change Color BCM Advanced Research... - Page 39 ° IDE drives do not require setting Landing Zone and Write Precomp. ∗ These settings can only be changed when the Hard Disk Type is set to ‘USER’. WARNING: Incorrect settings can cause your system to malfunction. BCM Advanced Research...
-
Page 40: Bios Feature Setup
Boot Sequence : A,C Security Option : Setup PS/2 mouse function control : Enabled Esc : Quit : Select Item F1 : Help PU/PD/+/- : Modify (Shift)F2 : Color F5 : Old Values F6 : Load BIOS Defaults BCM Advanced Research... - Page 41 CMOS Setup, without entering the correct password. When ‘System’ is selected, the system will boot, but access to the CMOS Setup is restricted by password. PS/2 Mouse Enabled Enables or Disables the on-board PS/2 Mouse Function Disabled functionality. Control BCM Advanced Research...
-
Page 42: Power Management Setup
IRQ15 (Reserved) : OFF IRQ8 (Wake-Up Event) : ON IRQ12(Wake-Up Event) : ON Esc : Quit : Select Item F1 : Help PU/PD/+/- : Modify (Shift)F2 : Color F5 : Old Values F6 : Load BIOS Defaults BCM Advanced Research... -
Page 43: Load Bios Defaults
IRQ 3 - 15 power Load BIOS Defaults This feature allows the CMOS Settings to be reset to the original default values. The values in the Standard CMOS Setup Menu, such as date, time and disk drive parameters are unaffected. BCM Advanced Research... -
Page 44: Integrated Peripherals
Onboard Parallel Port : 378/IRQ7 Parallel Port Mode : ECP ECP Mode Use DMA Esc : Quit : Select Item F1 : Help PU/PD/+/- : Modify (Shift)F2 : Color F5 : Old Values F6 : Load BIOS Defaults BCM Advanced Research... - Page 45 1, 3 Select the Dynamic Memory Address (DMA) channel to be used by the parallel port. Only available when ECP mode is selected. Onboard Audio Enabled Enable or Disable the audio chip on the Chip Disabled motherboard. BCM Advanced Research...
-
Page 46: Supervisor Password
If a supervisor password is also set up the CMOS Setup Utility program will be unavailable unless the supervisor password is entered. Save & Exit Setup This feature allows the changes to be made to the CMOS setup to be saved. The system will resume booting after a successful save. BCM Advanced Research... -
Page 47: Electrical And Mechanical Specifications
-0.3 to +5.5 V Supply Voltage with Respect to VSS (3.3V) -0.3 to +4.0 V The topics in this section specify the normal operating conditions for the IN440EX motherboard. Exposure to absolute maximum rating conditions for extended periods may affect the system reliability. -
Page 48: Dc Specifications For 5V And 3.3V Signals
3.0A per slot. The average current consumption may not exceed 3A per slot. The system integrator must also guarantee that worst-case power consumption does not exceed the maximum allowed by the motherboard power connector. BCM Advanced Research... -
Page 49: Mechanical
Table 5.5. IN440EX Motherboard Power Budget Voltage Current Load(A) Input Tolerance Minimum Maximum -12V +/-5% 0.1 amp +/-5% 0.1 amp +/-5% 9 amp +12V +/-5% 0.8 amp +/-4% 5 amp Mechanical System Interfaces User-Accessible Sockets The following user accessible sockets are located on the top of the system PWA: Table 5.9. -
Page 50: Manufacturability/Serviceability
Manufacturability/Serviceability IN440EX is designed to be both easy to manufacture and service. The items specifically related to the system PWA are: • Connector location & labeling Jumper location & labeling • • PWA bar code label (part number and revision) •...
