Integrated Peripherals

Selecting "Integrated Peripherals" from the Main Menu displays a menu like the one shown here.
Use the table on the following page to specify your settings for Integrated Periph
On-Chip Primary
On-Chip Secondary PCI IDE : Enabled
USB Controller
Onboard FDC Controller
Onboard Serial Port 1
Onboard Serial Port 2
UART2 Mode
Duplex Select
TxD , RxD Active
Onboard Parallel Port
Parallel Port Mode
ECP Mode Use DMA
BCM Advanced Research

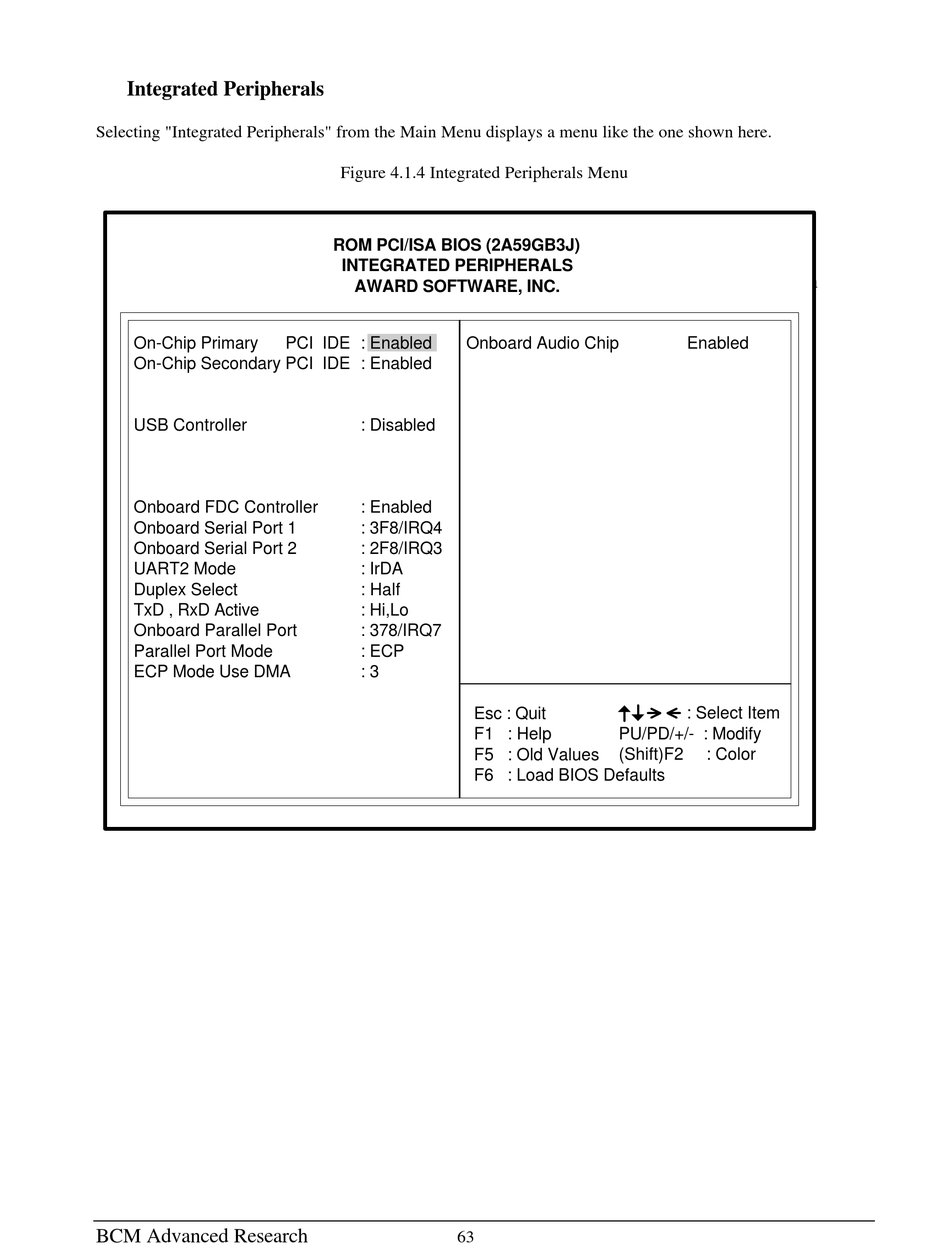

Figure 4.1.4 Integrated Peripherals Menu
ROM PCI/ISA BIOS (2A59GB3J)
INTEGRATED PERIPHERALS
AWARD SOFTWARE, INC.
PCI IDE : Enabled
: Disabled
: Enabled
: 3F8/IRQ4
: 2F8/IRQ3
: IrDA
: Half
: Hi,Lo
: 378/IRQ7
: ECP
: 3
63
Onboard Audio Chip
Esc : Quit
F1 : Help PU/PD/+/- : Modify
(Shift)F2
F5 : Old Values
F6 : Load BIOS Defaults
Enabled
: Select Item
: Color
