SmartNode 4830 DSL Series
Analog VoIP Integrated Access
Device
User Manual
Approval
Models that are equipped with telecom interfaces have been approved for connection to the public
telecommunication network as listed under PSTN regulatory compliance.
Important
This is a Class A device and is intended for use in a light industrial environment. It is not intended
nor approved for use in an industrial or residential environment.
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com
Part Number: 07MSN4830DSL-UM, Rev. C
Revised: November 21, 2013
Advertisement
Table of Contents
Related Manuals for Patton SmartNode 4830 DSL Series
Summary of Contents for Patton SmartNode 4830 DSL Series
- Page 1 SmartNode 4830 DSL Series Analog VoIP Integrated Access Device User Manual Approval Models that are equipped with telecom interfaces have been approved for connection to the public telecommunication network as listed under PSTN regulatory compliance. Important This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial or residential environment.
- Page 2 Under no condition shall Patton Electronics be liable for any damages incurred by the use of this product. These damages include, but are not limited to, the following: lost profits, lost savings and incidental or consequential damages arising from the use of or inability to use this product.
-
Page 3: Summary Table Of Contents
Summary Table of Contents General information............................16 Hardware installation ............................22 Getting started with the SmartNode.........................32 DSL Basic Configuration...........................41 Contacting Patton for assistance........................46 Compliance information ...........................49 Specifications ..............................53 Cabling ................................60 Port pin-outs ..............................66 Installation checklist ............................69... -
Page 4: Table Of Contents
Table of Contents Summary Table of Contents ..........................3 Table of Contents ..............................4 List of Figures ..............................7 List of Tables ................................8 About this guide ..............................9 Audience................................9 Structure ................................9 Precautions ................................10 Safety when working with electricity ......................11 General observations .............................13 Typographical conventions used in this document ..................... - Page 5 Contacting Patton for assistance........................46 Introduction ................................47 Contact information..............................47 Patton support headquarters in the USA ......................47 Alternate Patton support for Europe, Middle East, and Africa (EMEA) ............47 Warranty Service and Returned Merchandise Authorizations (RMAs)...............47 Warranty coverage ............................48 Out-of-warranty service ...........................48 Returns for credit .............................48...
- Page 6 SmartNode 4830 DSL Series User Manual Authorized European Representative........................52 Specifications ..............................53 DSP..................................54 Voice connectivity..............................54 Ethernet interface ..............................54 ADSL Daughter Card (if applicable) ........................54 G.SHDSL Daughter Card (if applicable) ......................55 PPP and Frame-Relay support..........................55 Voice processing (signaling dependent) ......................56 Fax and modem support ............................56...
-
Page 7: List Of Figures
Connecting a SmartNode 4830 DSL Series device to a hub ....... -
Page 8: List Of Tables
SmartNode 4830 DSL Series Model Codes ........ -
Page 9: About This Guide
32 provides quick-start procedures for configuring the SmartNode product Chapter 4 on page 41 provides information on configuring DSL • Chapter 5 on page 46 contains information on contacting Patton technical support for assistance • Appendix A on page 49 contains compliance information •... -
Page 10: Precautions
SmartNode 4830 DSL Series User Manual About this guide Precautions Notes, cautions, and warnings, which have the following meanings, are used throughout this guide to help you become aware of potential problems. Warnings are intended to prevent safety hazards that could result in per- sonal injury. -
Page 11: Safety When Working With Electricity
SmartNode 4830 DSL Series User Manual About this guide Safety when working with electricity • Do not open the device when the power cord is connected. For systems without a power switch and without an external power adapter, line voltages are present within the device when the power cord is connected. - Page 12 SmartNode 4830 DSL Series User Manual About this guide Always follow ESD prevention procedures when removing and replacing cards. Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. Connect the clip to an unpainted surface of the chassis frame to safely channel unwanted ESD voltages to ground.
-
Page 13: General Observations
SmartNode 4830 DSL Series User Manual About this guide General observations Clean the case with a soft slightly moist anti-static cloth • Place the unit on a flat surface and ensure free air circulation • • Avoid exposing the unit to direct sunlight and other heat sources Protect the unit from moisture, vapors, and corrosive liquids •... -
Page 14: Typographical Conventions Used In This Document
SmartNode 4830 DSL Series User Manual About this guide Typographical conventions used in this document This section describes the typographical conventions and terms used in this guide. -
Page 15: General Conventions
SmartNode 4830 DSL Series User Manual About this guide General conventions The procedures described in this manual use the following text conventions: Table 1. General conventions Convention Meaning Garamond blue type Indicates a cross-reference hyperlink that points to a figure, graphic, table, or sec- tion heading. -
Page 16: General Information
Chapter 1 General information Chapter contents SmartNode Model 4830 DSL Series Overview ....................15 Rear Panel ..............................16 Port Descriptions ............................17 Reset button behavior ..........................17 Model Versions ............................18 Front Panel ..............................19... -
Page 17: Smartnode Model 4830 Dsl Series Overview

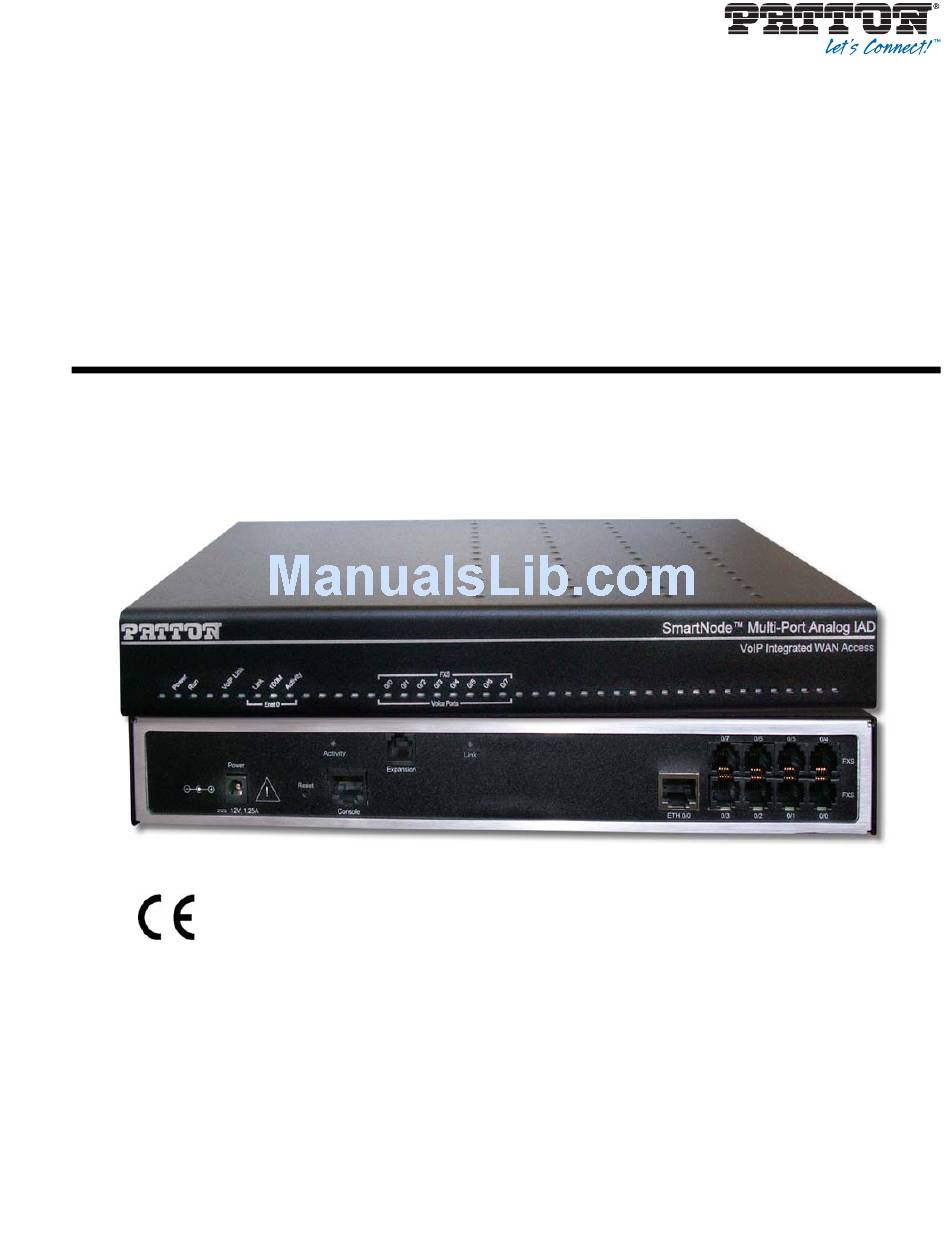

SmartNode Model 4830 DSL Series Overview The SmartNode 4830 DSL Series Analog VoIP Integrated Access Devices combines IP routing, VPN/Security, and Quality of Service with integrated WAN access for up to 8 voice and FAX calls over any IP or PSTN net- work. -
