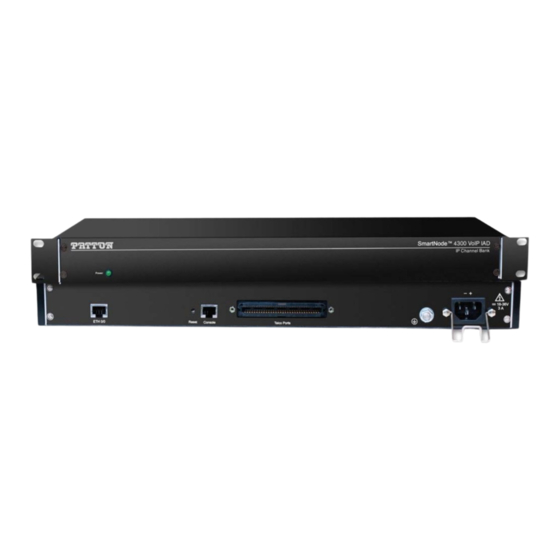

SmartNode 4300
IpChannel Bank
Quick Start Guide
Important
This is a Class A device and is not intended for use in a residential environment.
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail: support@patton.com
WWW: www.patton.com
Part Number: 07MSN4300-QS, Rev. D
Revised: February 9, 2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Patton SmartNode 4300
Summary of Contents for Patton SmartNode 4300
- Page 1 For Quick For Quick Start Installation Start Installation SmartNode 4300 IpChannel Bank Quick Start Guide Important This is a Class A device and is not intended for use in a residential environment. Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 E-mail: support@patton.com...
- Page 2 Under no condition shall Patton Electronics be liable for any damages incurred by the use of this product. These damages include, but are not limited to, the following: lost profits, lost savings and incidental or consequential damages arising from the use of or inability to use this product.
-
Page 3: Safety When Working With Electricity
SmartNode 4300 Quick Start Guide Safety when working with electricity • Do not open the device when the power cord is connected. For systems without a power switch and without an external power adapter, line volt- ages are present within the device when the power cord is connected. -
Page 4: General Observations
SmartNode 4300 Quick Start Guide Electrostatic Discharge (ESD) can damage equipment and impair electrical cir- cuitry. It occurs when electronic printed circuit cards are improperly handled and can result in complete or intermittent failures. Do the following to prevent CAUTION... -
Page 5: Attaching The Cable Retainer Clip
The clip will pop into place. Power cable retainer clip Figure 1. Attaching the cable retainer clip Note Refer to the SmartNode 4300 User Manual on the Patton website for detailed instructions about grounding and connecting power to your unit. Introduction... - Page 6 SmartNode 4300 Quick Start Guide Connecting a PC, logging in, and configuring the IP address Connecting power and configuring the default IP address Connect the SmartNode to the mains power supply using the included power supply and cable. When the RUN LED stops blinking and remains lit, the SmartNode is ready.
-
Page 7: Changing The Ip Address
SmartNode 4300 Quick Start Guide 172.16.40.1>enable 172.16.40.1#configure 172.16.40.1(cfg)# Changing the IP address 1. Select the context IP mode to configure an IP interface. 172.16.40.1(cfg)#context ip router 172.16.40.1(ctx-ip)[router]# 2. Set the IP address and network mask for the each IP interface (eth0, for example). -
Page 8: Connecting The Smartnode To The Network
SmartNode 4300 Quick Start Guide Connecting the SmartNode to the network The 4300 Ethernet port is auto MDX, therefore a straight-through wired cable can be used for host and switch connections (see figure 1 AM 1 AM Figure 3. Connecting the SmartNode to the network You can check the connection with the ping command to another host on the local LAN. -
Page 9: Additional Information
SmartNode Patton provides a collection of configuration templates on the support page at www.patton.com/smartnode— one of which may be similar enough to your application that you can use it to speed up configuring the Smart- Node. -
Page 10: Emc Compliance
SmartNode 4300 Quick Start Guide Compliance EMC compliance: • FCC Part 15, Class A • EN55022, Class A • EN55024 Low Voltage Directive (Safety): • UL60950-1/CSA C22.2 No. 60950-1Listing • IEC/EN 60950-1, 2nd edition • AS/NZS 60950-1, A-tick PSTN: •... -
Page 11: Radio And Tv Interference (Fcc Part 15)
CE Declaration of Conformity Patton Electronics, Inc declares that this device is in compliance with the essential requirements and other rel- evant provisions of Directive 1999/5/EC. The Declaration of Conformity may be obtained from Patton Elec- tronics, Inc at www.patton.com/certifications. - Page 12 SmartNode 4300 Quick Start Guide NOTES NOTES...
