Setting Up the Access Point
Configuring Security Settings
4-16

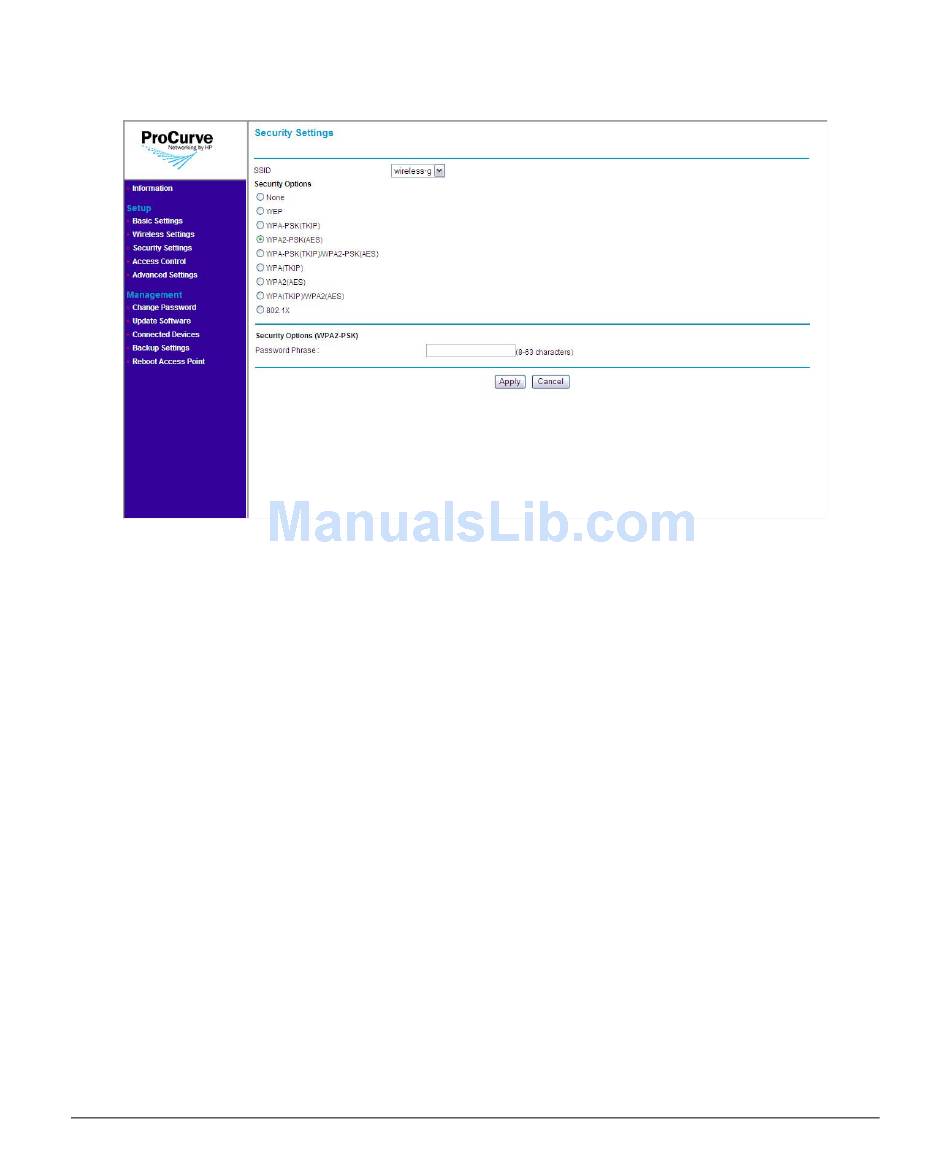

Figure 4-8. WPA2-PSK (AES) Options
To use WPA2-PSK (AES):
1. On the menu, click Security Settings. The Security Settings page
appears.
2. In SSID, select the SSID for which you want to set the security profile.
3. Under Security Options, click WPA2-PSK (AES).
4. In the Password Phrase box under Security Options (WPA-PSK), enter
a string of at least 8 characters to a maximum of 63 characters. The string
that you enter here will be used as the shared secret key for WPA-PSK.
5. Click Apply to save your changes.

Configuring WPA-PSK (TKIP) / WPA2-PSK (AES)

This security profile combines WPA-PSK (TKIP) and WPA2-PSK (AES). It uses
a pre-shared key (PSK), which is used for an initial check of credentials, and
a mixed cipher mode of TKIP and AES.
