Connections for C-Mig 315

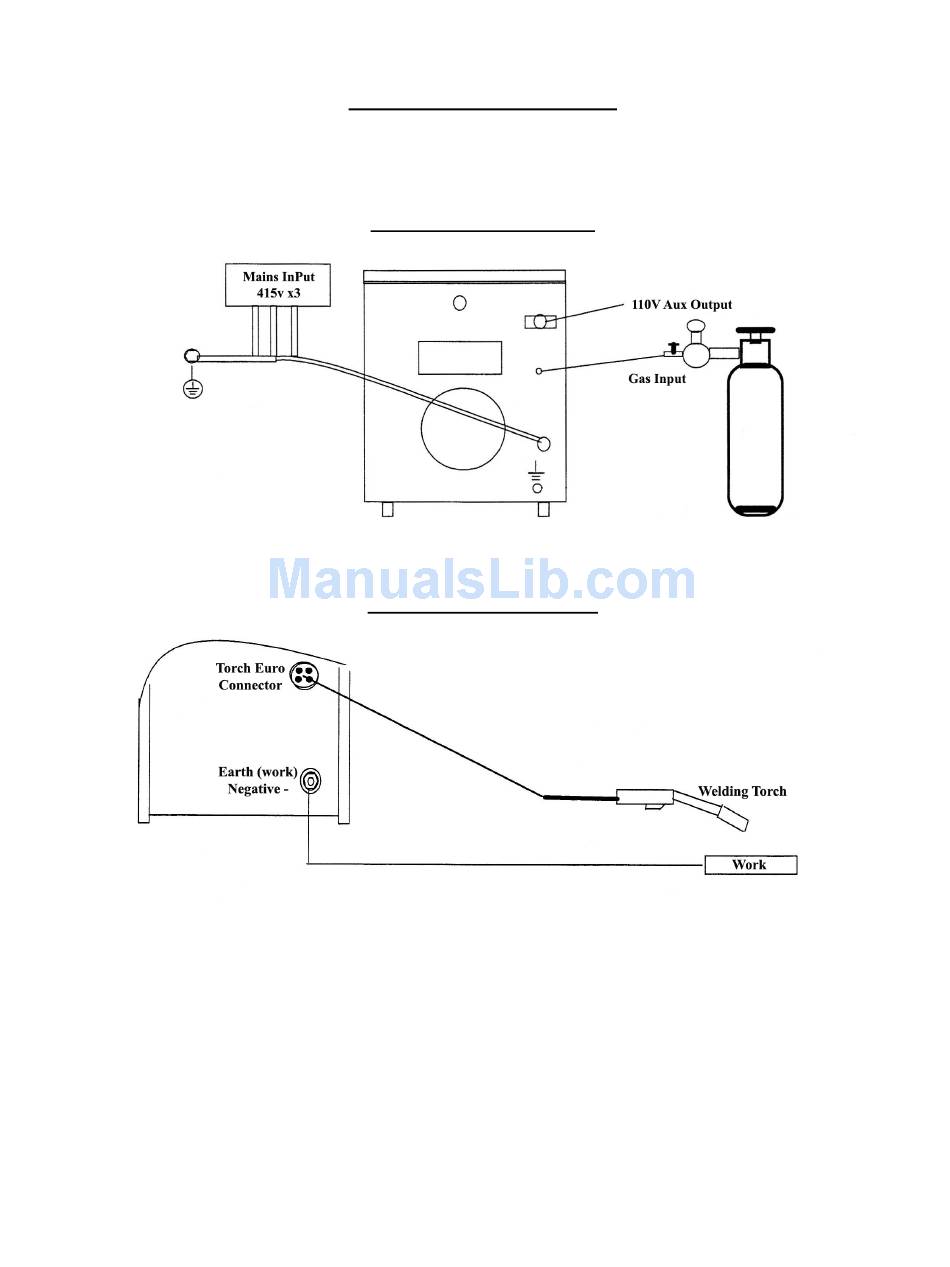

Setup machine as per two diagrams below:
Rear machine connections
Front machine connections
Connect Euro type Mig torch to euro torch connector
To avoid shock keep the Mig torch in good condition and replace if any of the insulation is
damaged.
Connect the earth lead (negative - ) to work/bench.
Connect the gas input hose to gas regulator, Set gas flow/pressure to 10-14 LPM, in drafty or open
areas a higher flow may be required to stop porosity of weld.
Make sure gas bottle is secured machine securely to avoid injury.
