Set required voltage for welding material – Coarse voltage is set via 3 position switch either low,
medium or high range – Fine adjust is set via 7 position switch.
Adjust wire feed speed to suit voltage/wire diameter chosen.
Current LED shows actual welding voltage when welding
Voltage LED shows actual welding voltage when welding
Spot Timer – Sets how long spot weld will be
Stitch Time – Sets interval of stitch weld time
Power switch – Turns machine on/off
Power light – lights when machine turned on
Warning Light – lights when fault occurs (Overworking of machine – overheating)

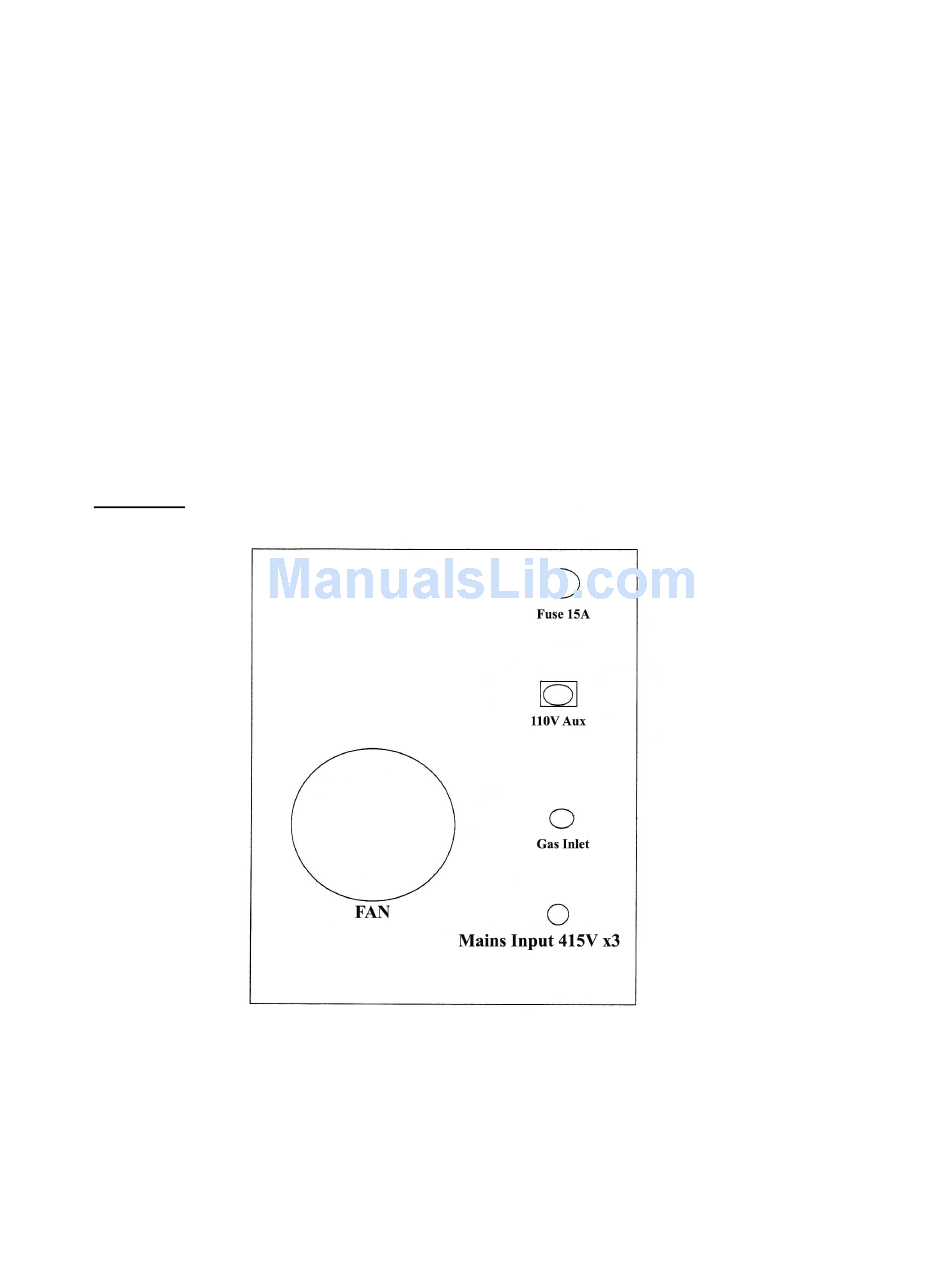

Rear Panel
15 Amp Fuse – Protection fuse for 110V auxiliary
110V Aux - 110V Auxiliary output for water cooling system etc.
