Removing a card (Macintosh)
1.
Make sure that the "Access/Power" indicator is not flashing. The access indicator will
flash when data is being read or written on the card. Wait until the operations are
complete and the access indicator is no longer flashing before attempting to remove the
card. Removing a card during access operations will cause the data to be lost or
corrupted.
2.

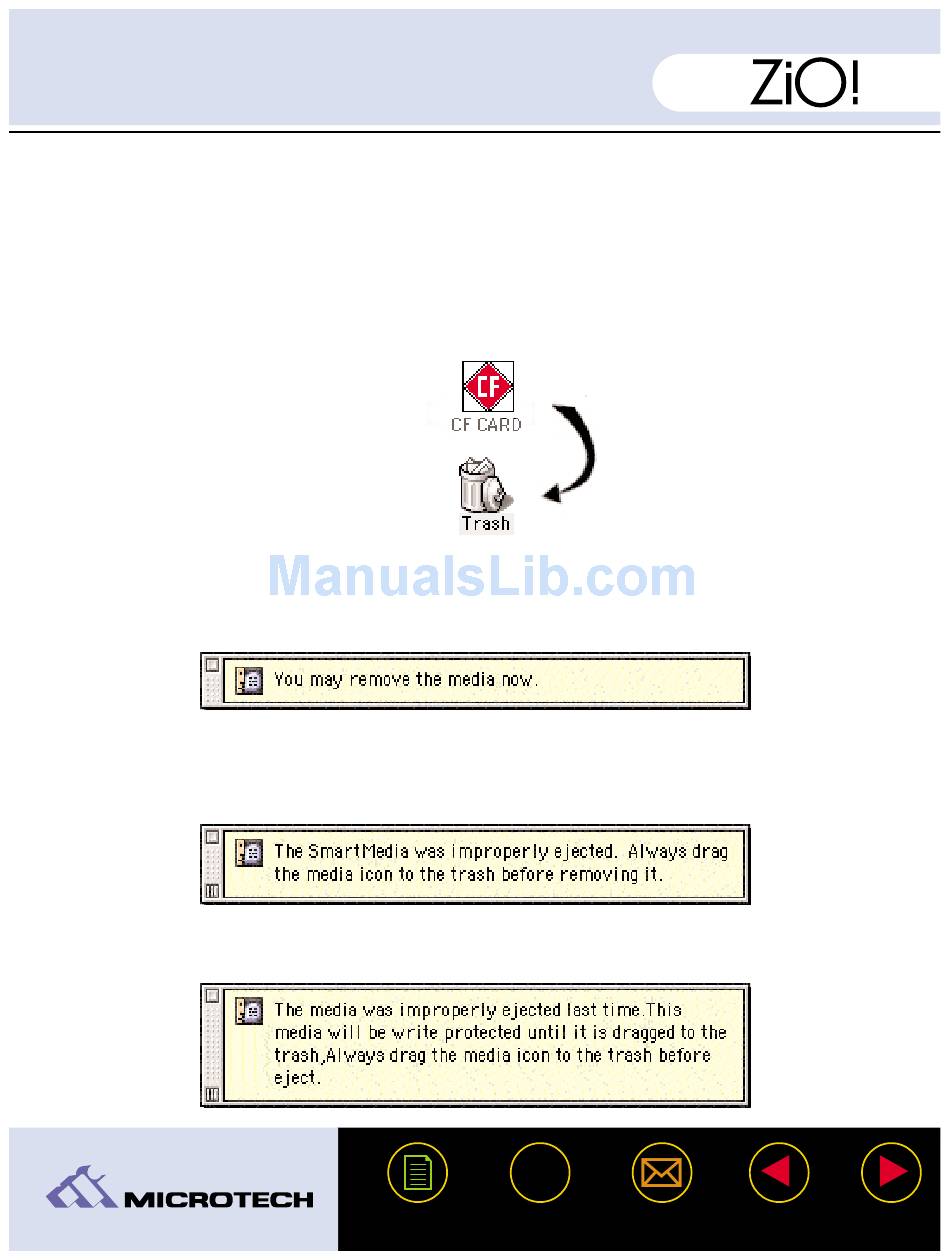

Drag the card icon and drop it onto the trash icon as shown above. The card icon will
disappear from the desktop. A dialog box similar to the one below will appear. It is now
safe to remove the card. To remove a card, grasp the end of the card with your
thumb and index fingers, and remove the card from the slot.
WARNING: Do not remove a mounted card without first dragging the card icon to the trash. You
may risk the chance of corrupting data stored on your card if removed improperly. If removed
improperly, a warning message may appear on the screen - warning you that the media was not
properly ejected.
For ZiO! CompactFlash Reader owners, a second warning message may also appear (similar to
the one shown below) when media is re-inserted into the ZiO!.
32
?
HELP
CONTENTS
Drag the card icon to the trash.
The card icon will disappear and
a dialog box similar to the one
below will appear.
