Connecting to the USB port (continued)
The ZiO! can be connected directly to the USB port (as shown on the previous page) or by using
the included extender cable (as shown below) so it can be positioned in more convenient loca-
tions. As shown in the illustrations below, attach the USB connector from the ZiO! to the female
end of the USB extender cable. Then connect the USB plug of the included USB extender cable
to the USB port on your Macintosh.

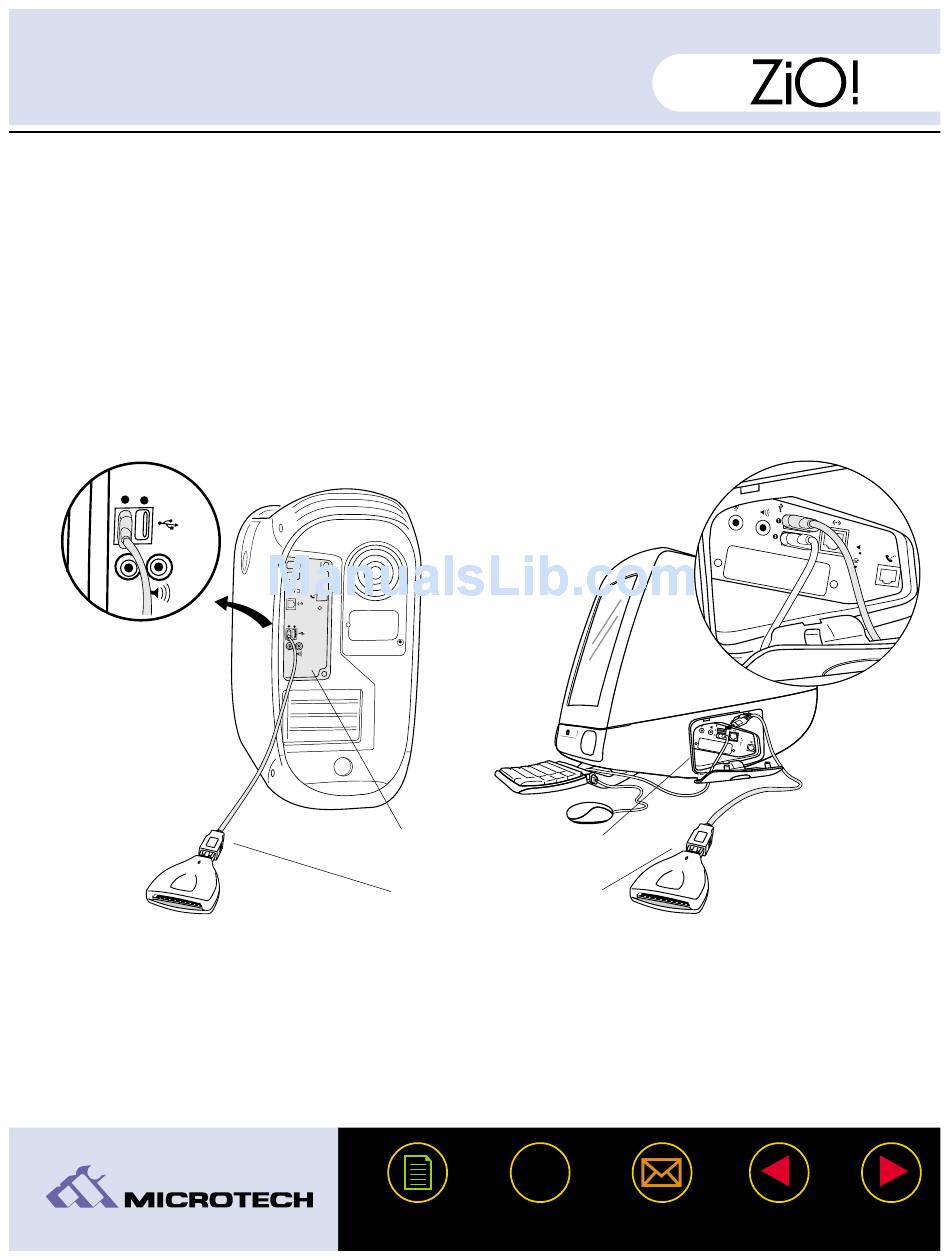

Enlarged view
14
Connect the USB plug of the
included extender cable to the USB
port on your Macintosh.
Then attach the USB connector from
the ZiO! to the female connector of
the USB extender cable.
?
