Connecting to a USB hub
1.
Connect the USB hub (purchased separately) to the USB port on your Macintosh.
NOTE: Use only with a powered USB hub.
2.
Then connect the USB connector of the Microtech ZiO! to a port on the USB hub. If
necessary, connect the ZiO! first to the included USB extender cable, then connect the
male end of the extender cable to a port on the USB hub.
NOTE:The USB cable may be plugged into the computer or hub while the computer is
running.
IMPORTANT: Make sure the cable ends are firmly connected. Be careful not to
confuse the upper and lower parts of the connector. Do not force connections, as this
may damage the computer or the Microtech ZiO!.

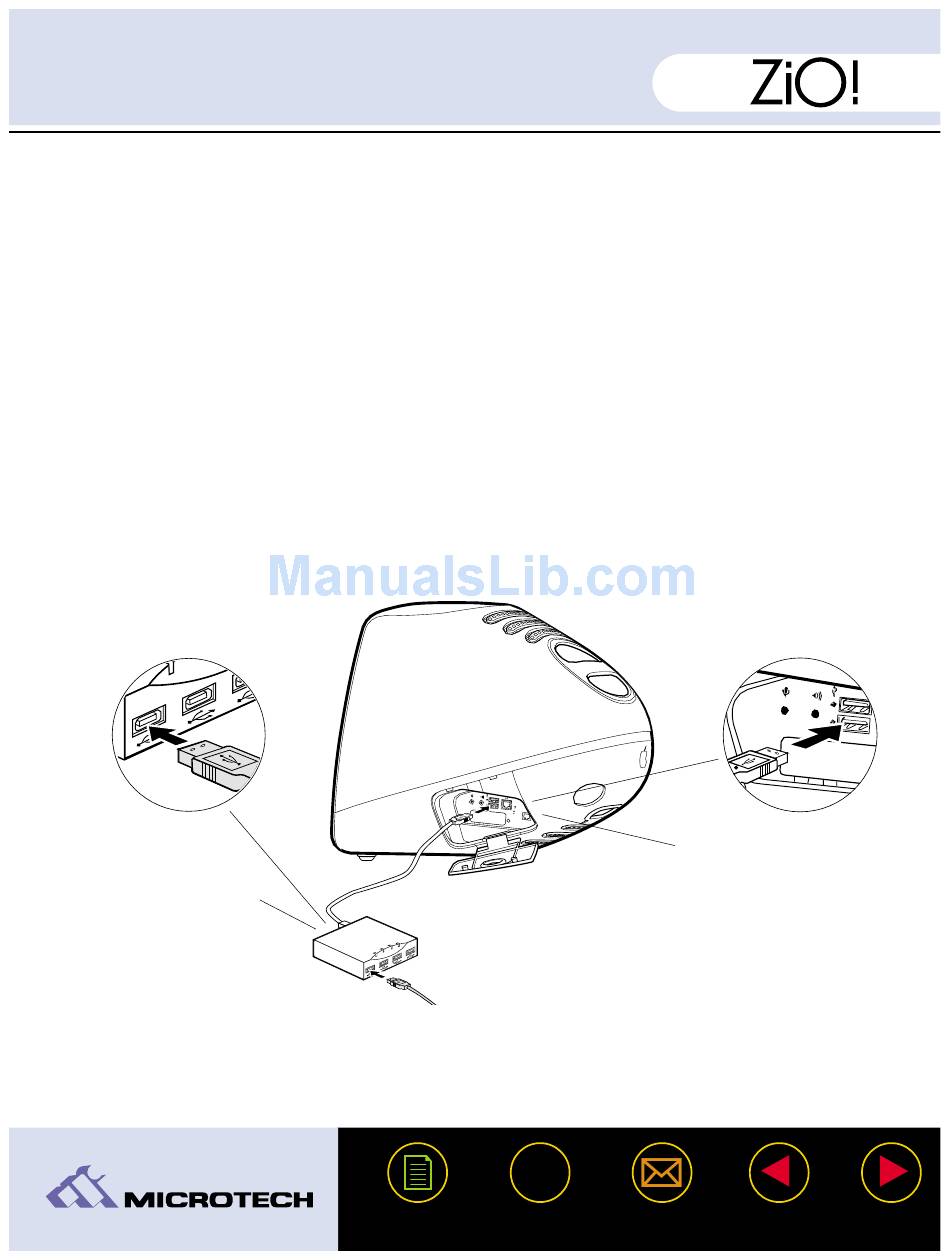

Enlarged view
Attach the USB connector from
the Microtech ZiO! or USB extender
cable to the USB port on the USB hub
15
?
HELP
CONTENTS
Enlarged view
Attach the USB connector from the USB hub
to the USB port on your computer
