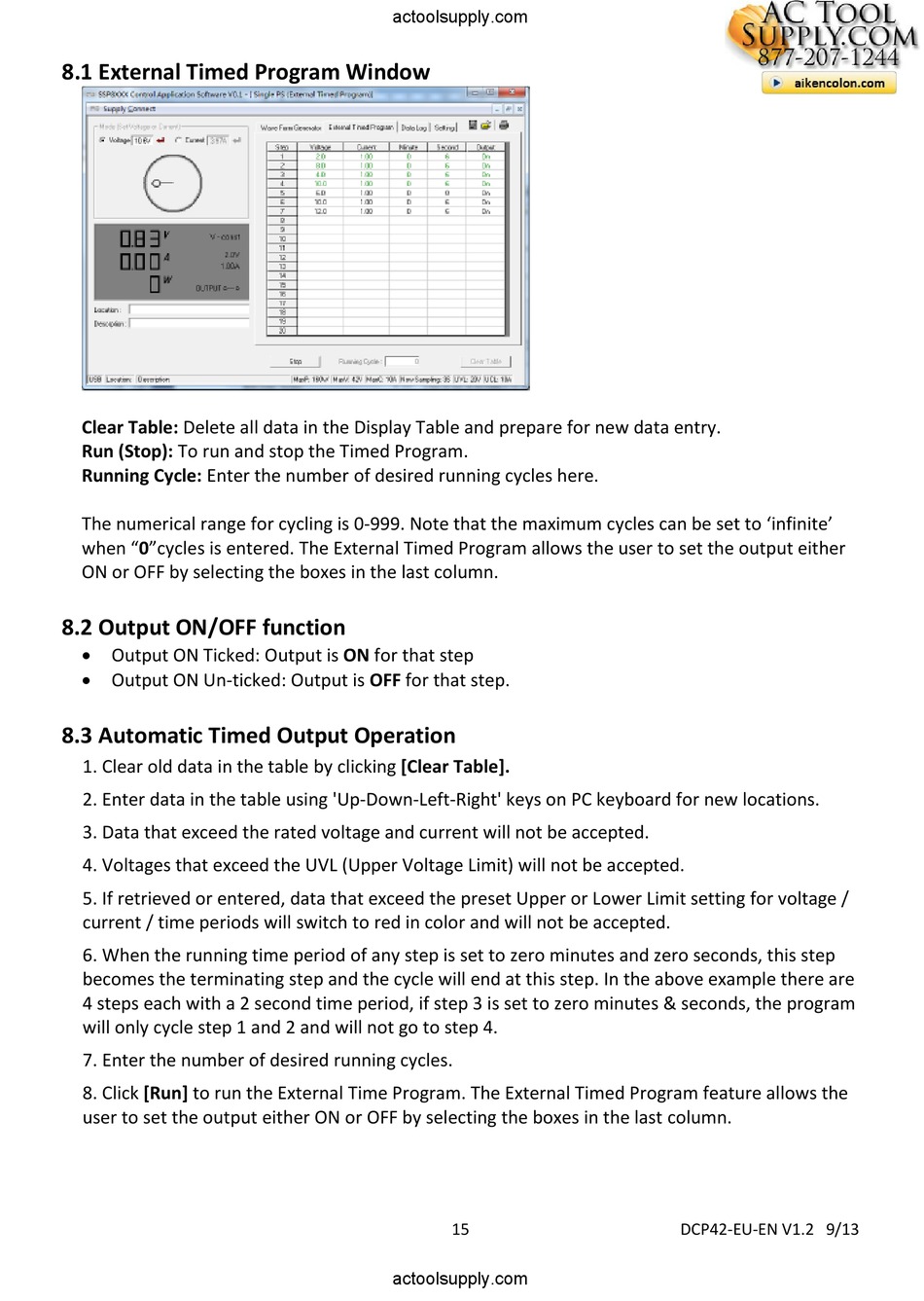

8.1 External Timed Program Window

Clear Table: Delete all data in the Display Table and prepare for new data entry.
Run (Stop): To run and stop the Timed Program.
Running Cycle: Enter the number of desired running cycles here.
The numerical range for cycling is 0-999. Note that the maximum cycles can be set to 'infinite'
when "0"cycles is entered. The External Timed Program allows the user to set the output either
ON or OFF by selecting the boxes in the last column.

8.2 Output ON/OFF function

 Output ON Ticked: Output is ON for that step
 Output ON Un-ticked: Output is OFF for that step.

8.3 Automatic Timed Output Operation

1. Clear old data in the table by clicking [Clear Table].
2. Enter data in the table using 'Up-Down-Left-Right' keys on PC keyboard for new locations.
3. Data that exceed the rated voltage and current will not be accepted.
4. Voltages that exceed the UVL (Upper Voltage Limit) will not be accepted.
5. If retrieved or entered, data that exceed the preset Upper or Lower Limit setting for voltage /
current / time periods will switch to red in color and will not be accepted.
6. When the running time period of any step is set to zero minutes and zero seconds, this step
becomes the terminating step and the cycle will end at this step. In the above example there are
4 steps each with a 2 second time period, if step 3 is set to zero minutes & seconds, the program
will only cycle step 1 and 2 and will not go to step 4.
7. Enter the number of desired running cycles.
8. Click [Run] to run the External Time Program. The External Timed Program feature allows the
user to set the output either ON or OFF by selecting the boxes in the last column.
