Summary of Contents for Navilock BT-453TE

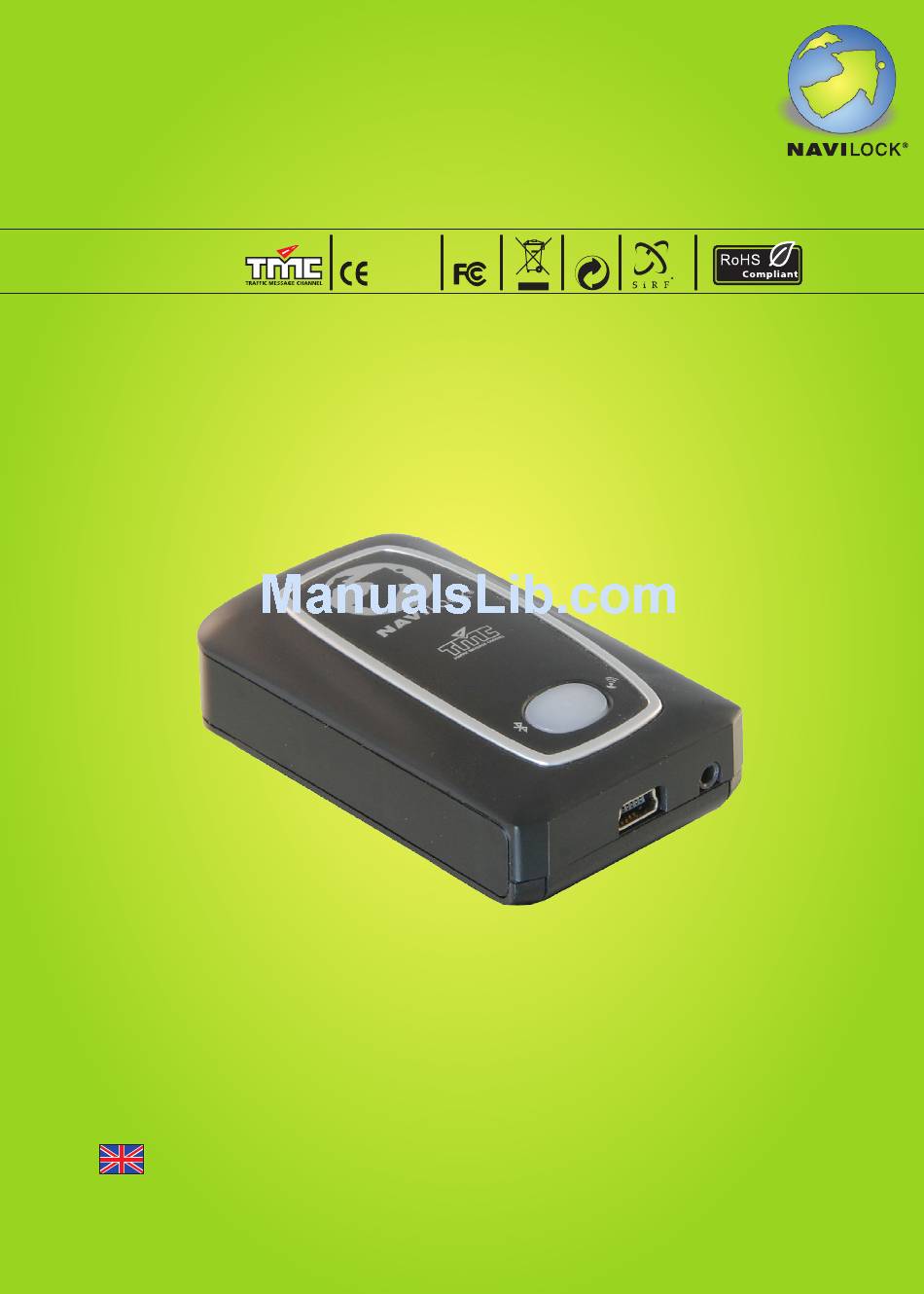

- Page 1 60309 1588 GPS/TMC receiver BT-453TE User manual Version A...
- Page 2 It has an active installed antenna for a high sensitivity for reception of the GPS signals. Based on the Sirf3 chipset it supports all required GPS-functions. The BT-453TE is suitable for the application in systems, e.g. PDA, mobile phones, Smart phones, tablet-PC, CarPC and notebooks with Bluetooth interface.
- Page 3 Important health- and security information If you use this product you should take precautions to avoid damages and legal consequences. Follow precisely all security- and handling advice and keep it carefully. Pay attention to all warning notices in the manual and on the device. To avoid injury, electric shock, fire and damages on the device, please pay attention to the following notices.
- Page 4 2. Please refer to the Notebook‘s user‘s guide for instructions to activate Bluetooth for connection to the BT-453TE. As these are always a little bit different. Usually you proceed as follows: 3. Enter the Bluetooth-Manager and search for devices in the Bluetooth surroundings.
- Page 5 3. Testing the Bluetooth GPS receiver 3.1 Testtool for Notebook or Desktop using 1. Copy the Navilock PC.exe from the folder Tools which is on the driver CD of BT-453TE and transfer it to your notebook into a folder of your choice.
- Page 6 5. After you chose the COM Port and the baud rate you can connect the Tool with BT-453TE and have the data displayed. Click here the button „Start GPS“. 6. The Egnos correction cannot be activated. See note 1.3 7. Switch with tab from Setup to GPS Info when the NMEA protocol is displayed.
- Page 7 PC to the PDA. The tool Active Sync belongs to the basic configuration of your PDA and is not part of delivery of BT-453TE. . Follow the instruction on the display of your desktop PC and PDA.
- Page 8 5.3 The green LED of the BT-453TE flashes and you are not receiving any satellite fix. Make sure the BT-453TE has a clear view to the sky. Reception is not possible when in enclosed rooms; in such cases, please take the BT-453TE outdoors. After turning on the BT-453TE for the first time, it requires up to 20 minutes, depending on the state of reception, to evaluate the data of all satellites.
- Page 9 GPS hardware. Before contacting your dealer, please contact Navilock support. This will provide you with help in a fast and easy manner, and help avoid unnecessary replacement.
- Page 10 Navilock. Navilock is a registered trademark and cannot be used without the written permission of its trademark owner. In no case shall it be modified or amended.
