  • Page 1 NL-603P Operation manual (61841)

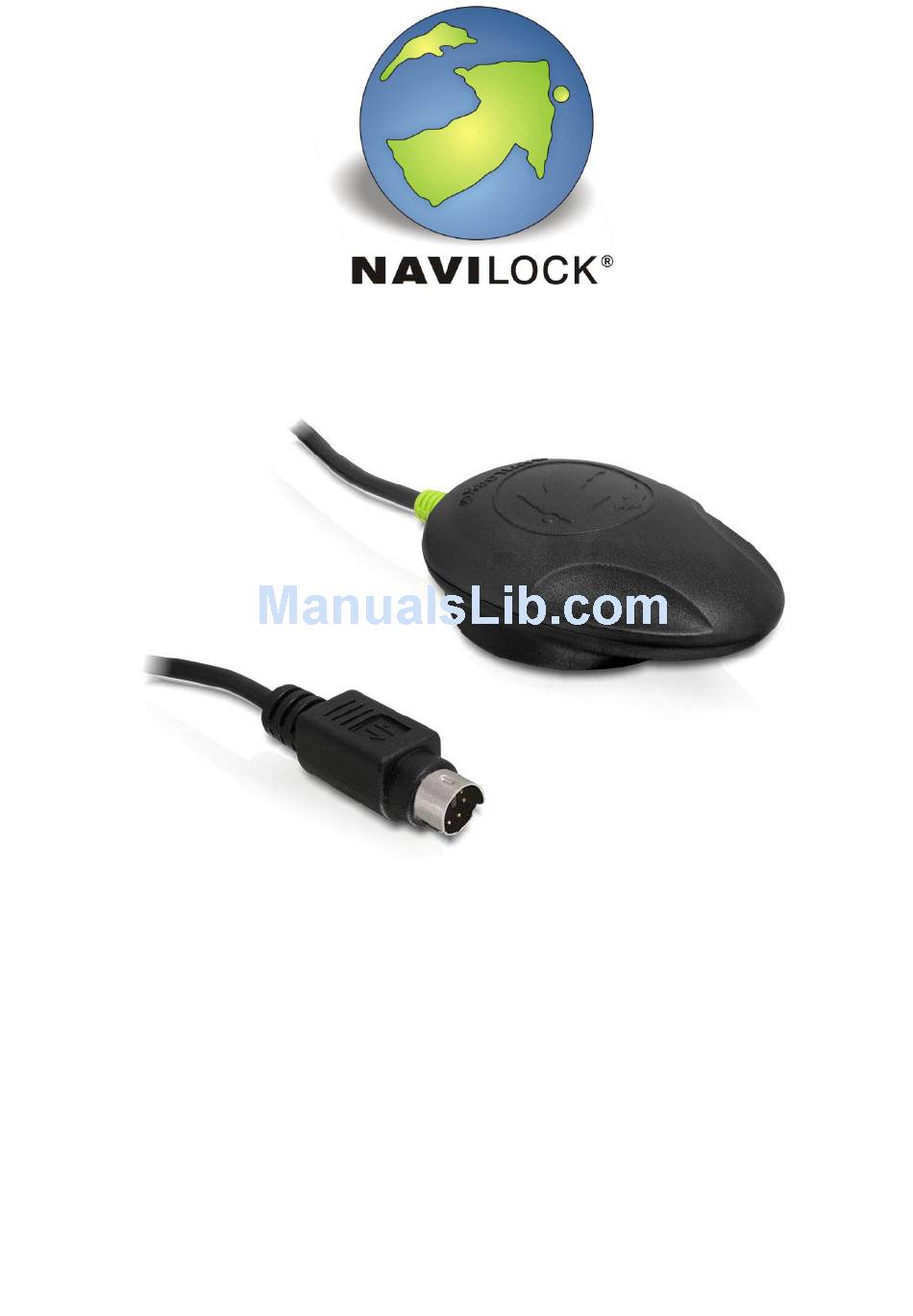

  • Page 2 You can use this GPS Receiver with a Car PC or a Notebook and a suitable routing software for navigation. 1.1. Contents* 1x Navilock NL-603P 1x Operation manual on CD ROM * Before using the device, please make sure that all the parts are included in the package. If any parts are missing or damaged, please contact your dealer immediately.
  • Page 3 2.1. Plug the USB cable in a free USB port on your notebook etc., and connect it with the NL- 603P. The NL-603P will be recognized by your Windows operating system, which will attempt to install a driver. Abort this process, and start “ublox5_install.exe” from the CD-ROM, or download the driver from the Navilock website.
  • Page 4 After starting the u-Center software, check the functionality of your NL-603P. 1. Select the COM port 2. Select the baud rate 3. Download Assist GPS and update the receiver 4. Visual display of the NMEA data 5. Configuration manager 6. NMEA/UBX message console 7.
  • Page 5 There you can select different setting functions. More detailed information can be found in the current documentation at the URL http://www.u-blox.com. To switch the NL-603P to EGNOS reception, please click the menu bar on item 5. A small window will open, in which all settings for the receiver can be made.
  • Page 6 The call-up and data transmission functions can be found in the menu bar of the u-Center. Click on the AGPS function in the menu bar to update AssistNow and to load the NL-603P. A small window with a small pull-down menu appears, in which you can see the validity of the data.
  • Page 7 6.4. The NL-603P came in touch with jet water (water jet from a shower head or strong rain (when it was mounted on a car roof). Do not connect the receiver with the notebook etc. under any circumstances, because it will otherwise be completely and irreparably destroyed.
  • Page 8 7. Specifications ® Chip set manufacturer/type u-blox6 GPS & GALILEO SuperSense Channels 50 channels Sensitivity -162 dBm Frequency L1, 1575.42 MHz C/A Code 1.023 MHz chip rate Target precisions: Position Horizontal 2.5m CEP, 2.0m SEP with SBAS Time 1 microsecond synchronized with GPS time Speed 0.1m/sec.
  • Page 9 Navilock. The brand Navilock is a registered trademark and may not be used without the written authorization of the trademark owner. In no case may it be altered or completed by additions.

  • Page 10: Conformity Declaration

    EN 300 440-2 V1.4.1: 2010 EN 301 489-1 V1.8.1: 2008 EN 301 489-3 V1.4.1 2002 You can find the CE Declaration of Conformity at http://www.navilock.de/support/ in the conformity area. Dieses WEEE note The WEEE (Waste Electrical and Electronic Equipment) directive, which came into force on 13 February 2003, lead to a comprehensive change in the disposal of used electric products.
  • Page 11 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN 62209-1: 2006:A11:2009 Human exposure to radio frequency fields from hand-held and body-mounted wireless communication devices –...
