- Page 1 NL-622MP operation manual (61843)

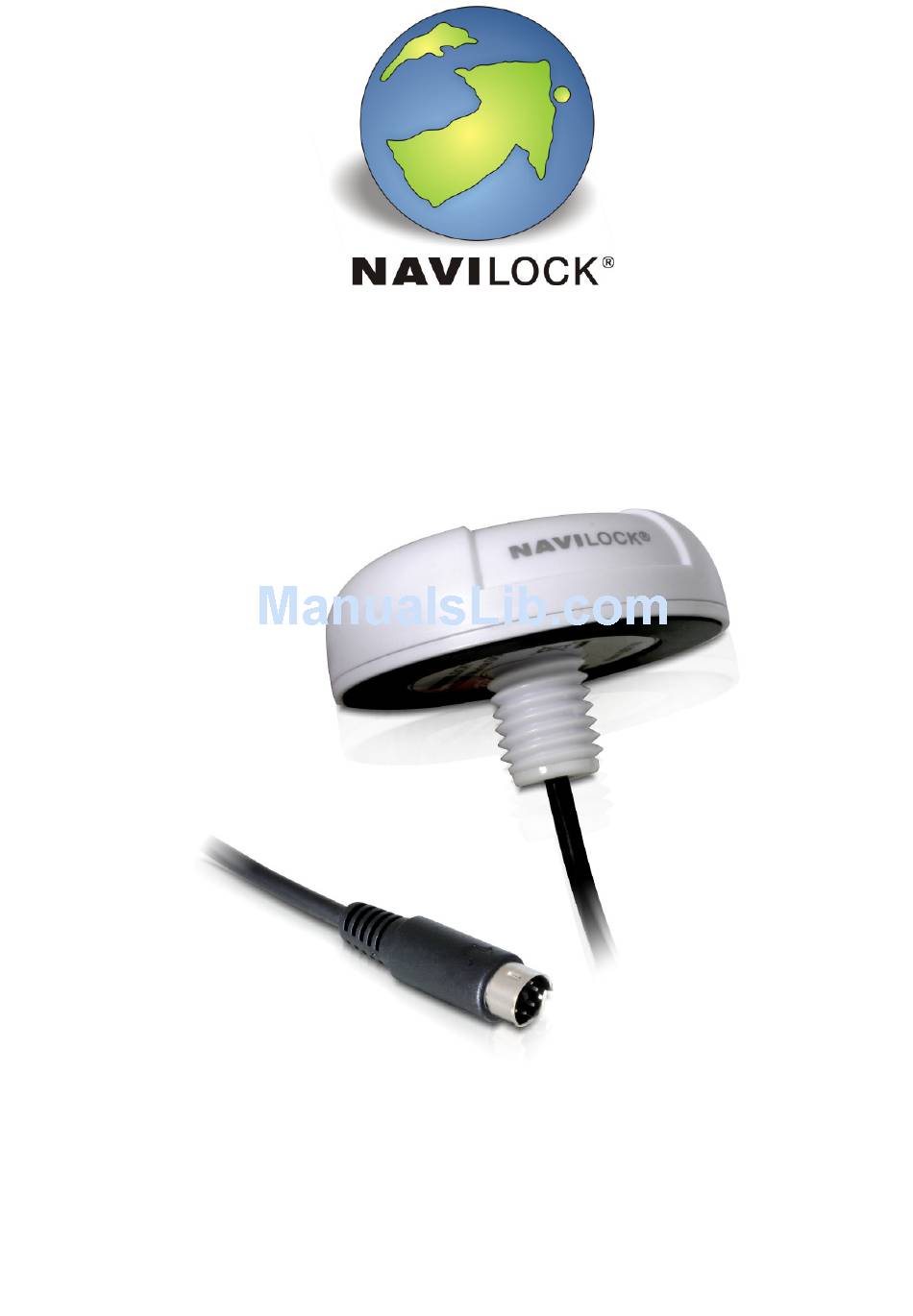

- Page 2 1. Introduction The NL-622MP is a serial GPS receiver with an internal antenna and a ublox6 GPS & GALILEO ® SuperSense GPS/Galileo chip set. The serial port enables the connection with a notebook, UMPC, tablet PC or car PC. Thanks to its universal MD6 connector, it can be used on almost all devices by means of an adapter cable.
- Page 3 2. Installation The NL-622MP is designed for mounting on a trunk lid, car roof or on a boat. For this purpose, you must choose a mounting location, where the material is hard enough to absorb the pressure applied to the receiver, without denting in. Otherwise the rubber gasket on the mounting surface would not seal completely any more, and water might penetrate.
- Page 4 The green bars at the bottom of the picture show the reception quality at your position. If no bars are displayed, please change your position. The NL-622MP cannot receive anything in a closed building. If the blue bars are displayed, the receiver is still...
- Page 5 There you can select different setting functions. More detailed information can be found in the current documentation at the URL http://www.u-blox.com. To switch the NL-622MP to EGNOS reception, please click in the menu bar on item 6. A small window will open, in which all settings for the receiver can be made.
- Page 6 The call-up and data transmission functions can be found in the menu bar of the u-Center. Click on the AGPS function in the menu bar to update AssistNow and to load the NL-622MP. A small window with a small pull-down menu appears, in which you can see the validity of the data.
- Page 7 9.2 Even after a long waiting time, you still don’t get a Satfix. The NL-622MP needs up to 20 minutes for its first Satfix on another continent. To get a Satfix the view to the sky must be unobstructed.
- Page 8 10. Specifications ® Chip set manufacturer/type ublox6 GPS & GALILEO SuperSense Channels 50 channels Sensitivity -160dBm Frequency L1, 1575.42MHz C/A Code 1.023MHz chip rate Target precisions: Position Horizontal 2.5m CEP, 5.0m SEP or SBAS 2.0m CEP, 3.0m SEP Time 1 microsecond synchronized with GPS time Speed 0.1m/sec.
- Page 9 Navilock. The brand Navilock is a registered trademark and may not be used without the written authorization of the trademark owner. In no case may it be altered or completed by additions.
-
Page 10: Rohs Conformity
CE Conformity Please download the Declaration of Conformity from http://www.navilock.de/support/ in the conformity area. WEEE note The WEEE (Waste Electrical and Electronic Equipment) directive, which came into force on 13 February 2003, lead to a comprehensive change in the disposal of used electric products. It is the main purpose of this directive to avoid electric waste products (WEEE), while simultaneously promoting the re-usage, recycling and other forms of reconditioning in order to reduce the amount of waste.
