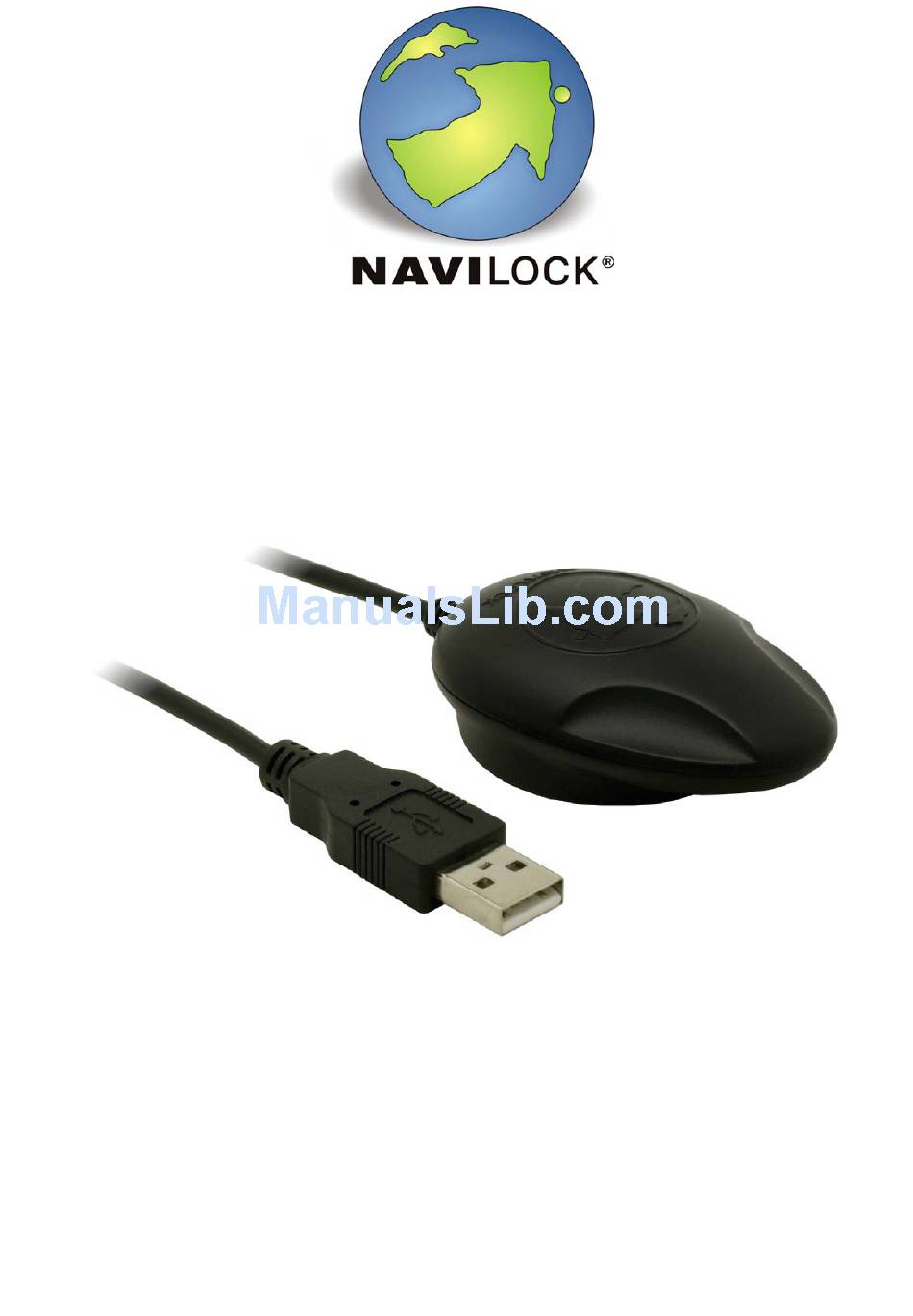

  • Page 1 NL-402U Operation manual (60095-a)
  • Page 2 1. Introduction The NL-402U is a USB GPS receiver with an internal antenna and a u-blox5 GPS & GALILEO ® SuperSense GPS/Galileo chip set. The USB port enables the connection with a notebook, UMPC, tablet PC or car PC. Thanks to its compact design, it is the ideal companion on any trip 1.1.
  • Page 3 2. Starting operation 2.1. Plug the USB cable in a free USB port on your notebook etc. The NL-402U will be recognized by your Windows operating system, which will attempt to install a driver. Abort this process, and start “ublox5_install.exe” from the CD-ROM, or download the driver from the Navilock website.
  • Page 4 The green bars at the bottom of the picture show the reception quality at your position. If no bars are displayed, please change your position. The NL-402U cannot receive anything in a closed building. If the blue bars are displayed, the receiver is still...
  • Page 5 There you can select different setting functions. More detailed information can be found in the current documentation at the URL http://www.u-blox.com. To switch the NL-402U to EGNOS reception, please click in the menu bar on item 5. A small window will open, in which all settings for the receiver can be made.
  • Page 6 The call-up and data transmission functions can be found in the menu bar of the u-Center. Click on the AGPS function in the menu bar to update AssistNow and to load the NL-402U. A small window with a small pull-down menu appears, in which you can see the validity of the data.
  • Page 7 6.4. The NL-402U came in touch with jet water (water jet from a shower head or strong rain (when it was mounted on a car roof). Do not connect the receiver with the notebook etc. under any circumstances, because it will otherwise be completely and irreparably destroyed.
  • Page 8 7. Specifications ® Chip set manufacturer/type u-blox5 GPS & GALILEO SuperSense Channels 50 channels Sensitivity -160dBm Frequency L1, 1575.42MHz C/A Code 1.023MHz chip rate Target precisions: Position Horizontal 2.5m CEP, 5.0m SEP or SBAS 2.0m CEP, 3.0m SEP Time 1 microsecond synchronized with GPS time Speed 0.1m/sec.
  • Page 9 Navilock. The brand Navilock is a registered trademark and may not be used without the written authorization of the trademark owner. In no case may it be altered or completed by additions.

  • Page 10: Conformity Declaration

    Conformity declaration Please download the Declaration of Conformity from http://www.navilock.de/support/ in the conformity area. WEEE note The WEEE (Waste Electrical and Electronic Equipment) directive, which came into force on 13 February 2003, lead to a comprehensive change in the disposal of used electric products. It is the main purpose of this directive to avoid electric waste products (WEEE), while simultaneously promoting the re-usage, recycling and other forms of reconditioning in order to reduce the amount of waste.
