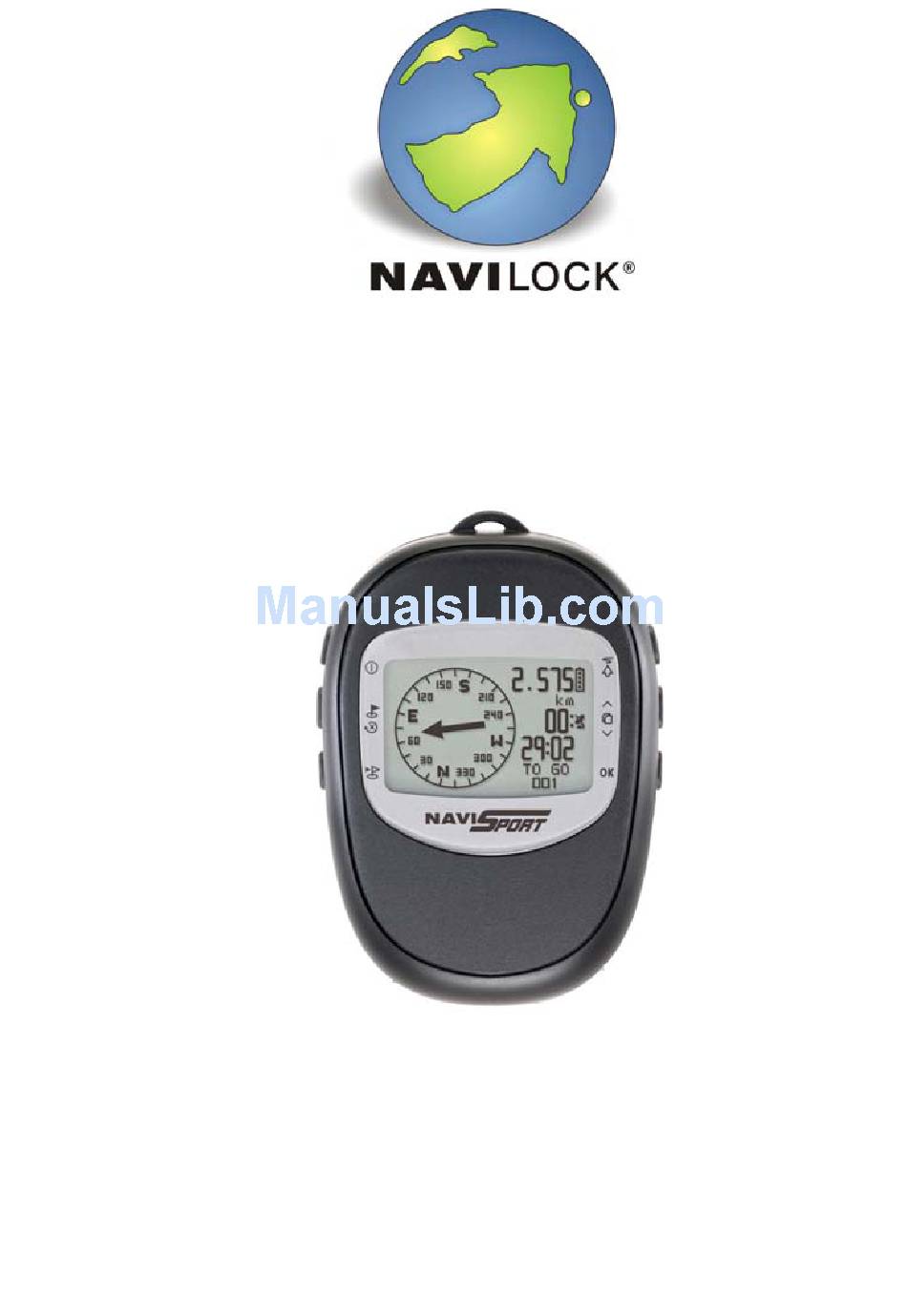

  • Page 2 User Manual (60118) Thank you for choosing a Navilock product. We are sure that the use of the NL-125O will bring you much pleasure. In order to avoid anything that could dampen your fun, please read this user manual carefully before starting to use the device.
  • Page 3 PLEASE NOTE: PLEASE RECYCLE OR DISPOSE OF USED BATTERIES OR STORAGE BATTERY CELLS ACCORDING TO THE LOCAL REGULATIONS OR IN COMPLIANCE WITH THE INFORMATION ENCLOSED WITH THIS PRODUCT. SAFETY INFORMATION CONCERNING DIRECT SUNLIGHT Please avoid exposing the device to excessive dampness and extreme temperatures. Do not leave the device, the battery or the storage battery cells in a vehicle or any place where the temperatures could rise above 60°C (140°F), e.g.
  • Page 4 2. Specifications Electronic and mechanical details Item NL-12OO Max. waypoints Max. routes Display size 21.9 x 32.87 mm Display type LCD with 4 grey levels Pixels (h x w) 96 x 128 Weight Protection class IPX4 Dimensions 76.5 x 61.5 x 17.5 mm Background illumination Ordinary Working temperature...

  • Page 5: Usb Cable

    3. Product Contents 3.1 Equipment Please confirm that all these parts are included in the package before you start to use the device and contact your specialized dealer in case anything should be damaged or missing. Strap NL-125O USB cable CD-ROM...
  • Page 6 3.2 Device Keys Button Explanation On/Off & Light To switch On or Off and activate the backlight. Marking Waypoint/ Mark points and leave the selected page Find Waypoint Go to the waypoint Back to Start Follow the travel route Scrolling Scroll key Enter &...
  • Page 7 It takes approximately 5-6 hours to fully charge the storage battery. Important: Charge the storage battery fully before using the NL-125O for the first time. 4. Startup 4.1 Startup of the NL-125O Press the ON/OFF button for 2 seconds. You will then see the startup screen with the welcome message.

  • Page 8: Explanation Of The Symbols

    4.2 Explanation of the Symbols The battery symbol shows the remaining battery capacity. If the symbol for the electronic compass blinks it means there much magnetic interference and it requires recalibration. GPS Status Display Not available: No signal Blinking: 2D fix Without bar: 3D fix 1 bar: 3D fix/weak signal 2 bars: 3D fix/good signal...
  • Page 9 200m to display the changes of direction correctly. Otherwise, the NL-125O will only show the one at 1000m and you may run in the wrong direction. 5.2 Finishing of the Route Press the button to finish route management.
  • Page 10 Use the key to change and confirm this with the button. This waypoint will be saved when you have a satellite fix. 7. Find a Waypoint 7.1 GO TO In order to return to a point of interest (POI) or your parked vehicle, proceed as follows. Press the button to display the list of already saved POIs and select the one you want.
  • Page 11 If it is necessary to calibrate the compass, press the buttons at the same time. Follow the instructions on the screen. First, put the NL-125O flat on the table and turn it slowly until the screen displays changes. Then place the NL-125O upright on the table and hold it firmly.
  • Page 12 9.1 Compass Settings Calibration It is possible to calibrate the NL-125O at power on, manually or automatically. Please select the desired action. We recommend manual calibration. Declination = angular distance of a star from the celestial equator with +90°...
  • Page 13 9.2 Time Setting Use the buttons to scroll within the settings. Press OK when you have reached the item, you want to set. [TIME ZONE] To set the time zone. [DAYLIGHT SAVING] When set to YES, the time zone will be automatically adjusted between summer and winter times.
  • Page 14 1000m with four waypoints, the setting must be adjusted to 200m to allow the device to correctly display the changes of direction. Otherwise, the NL-125O will only show the one at 1000m and you may run in the wrong direction.
  • Page 15 9.8 Reset Default In case your own settings do not achieve the desired results you can reset the NL-125O to the factory default settings. When you do this all User Settings will be deleted.
  • Page 16 10. USB Driver Installation 10.1 Installation of the USB Driver The USB driver must be installed before the NaviSport tool can be used between the NL-125O and a computer. Place the Navilock product CD in the CD-ROM drive of your PC.
  • Page 17 Step 3: The driver installation is completed when you see this screen. After clicking on Finish, unplug the NL-125O from the USB Port and plug it in again after a few seconds. It may happen that even after the driver has been installed, ‘New Hardware’ will again be displayed. Allow the computer to search for it automatically.
  • Page 18 Note: Normally, a version of Microsoft NET Framework will already be installed in MS Windows XP SP2, SP3 or Vista. If not, please install it from the NL-125O product CD ROM in the NaviSport Tool folder. Install the NaviSport Tool from the NL-125O product CD ROM.
  • Page 19 Step 5: The installation will be carried out. After a successful installation of the Navilock NaviSport Tool, the SQL Data Base will be automatically set up.
  • Page 20 Step 6: Click "Close" to complete the installation and start the NaviSport Tool. Step 7 : Generate a user account Step 8: Log in using the account name you have just set up.
  • Page 21 Connect the NL-125O to the PC with the Mini USB cable and allow the NaviSport Tool to find the necessary COM port automatically. Step 9: The NaviSport Tool will now automatically start up for the first time.

  • Page 22: Data Import

    10.3 Starting the NaviSport Tool from the Desktop From now on you can start the Navilock NaviSport Tool using the Desktop Icon or from Start/Programs/Navilock/NaviSport Tool. 11. PC Software 11.1 System Requirements In order to achieve satisfactory performance, the following minimum hardware requirements must be met: •...
  • Page 23 • A successful import will displayed by the following screen. 11.3 Route Manager 11.3 – 1 Explanation of the Elements Main Menus Submenus which change depending on the selected main menu Google Map, Waypoints, Routes Route Planning Route Planning Calendar Route Details Route List Sofware Function Switchings...

  • Page 24: Menu Structure

    Set Units Switch between metric, statute and nautical miles Switch between English, Traditional Chinese, Spanish, Language German, Italian, French and Japanese Search Update Search for newer program versions Help About NaviSport Link to the Navilock website About Us Navilock info...
  • Page 25 11.4 Main Menu 11.4 – 1 Screenshot of Google Map Save the current screen content in JPG or BMP format. 11.4 – 2 Display in Google Map View the planned route in Google Map. 11.4 – 3 Display in Google Earth If Google Earth is installed, it displays the selected route directly in this application.

  • Page 26: Export Data Base

    11.4 – 4 Export Data Base Exports the complete database contents of NaviSport Tools as a backup "*.travelbook" file. 11.5 File Menu 11.5 - 1 Open File Step: Select the file you want to open in the NaviSport Tool. This is possible with .kml and .gpx files.

  • Page 27: Route Planning

    11.5 - 2 Save File Step: Save your data as a gpx or kml file, depending on where it is to be used. Step: The successful saving of the file will be confirmed 11.6 Search Data If you have different data saved to the data base and recorded on different days or months the function Search Data, will allow you to specifically search for data and activate it by using the Calendar function.
  • Page 28 11.7.1 - 2 Uploading a Route to the NL-125O Step: Connect the NL-125O to your PC with the USB cable. The display will show "Connect TO PC". Please select "YES" and press the OK key.
  • Page 29 Step: The NaviSport Tool will now display "Upload of the route successful". 11.7.1 - 3 Delete Everything on the NL-125O Step: Connect the NL-125O to your PC using the USB cable. The display will show "Connect TO PC". Please select "YES" and press the OK key. Now open Data Transfer and...
  • Page 30 Confirm this with YES. Step: The successful deletion will be confirmed. Step: The route view in the NL-125O will now display no entries. 11.7.1 - 4 To Change Route Names Step: Select the route in the route list with the right mouse button and click on "Edit Route...
  • Page 31 End the addition of waypoints by clicking "Stop Adding". 11.7.2 – 2 Uploading Waypoints to the GH-561 device Step: Connect the NL-125O to your PC using the USB cable. The display will show "Connect TO PC". Please select "YES" and press the OK key.
  • Page 32 Step: The display will now show "Synchronize to PC". Step: In the NaviSport Tool, please open Data Transfer and then click on Upload to the NaviSport Tool. Step: After completion of the transfer, "Route data download OK" will be displayed. Step: "Upload of the route data successful"...

  • Page 33: Configuration Menu

    11.8 Configuration Menu 11.8 – 1 Com Port Setting • You can search for available COM ports for the connected NL-125O or enter the COM port name manually. 11.8 – 2 System Information Shows device specifications for the NL-125O 11.8 – 3 Setting Units •...
  • Page 34 Please find further information under http://msdn2.microsoft.com/en-us/library/Aa969329.aspx. 13.4. Your NL-125O does not find a FIX, or it takes too long to do so. An unobstructed view of the sky is needed for the reception of the GPS signals. However, today’s highly sensitive chip sets make it possible to get signals even without a satisfactory view of the sky.
  • Page 35 This is irrespective of the kind and method or the means – electronic or mechanical – this is used. The brand label Navilock is a registered trademark and may not be used without the approval of the holder of these rights in writing. Changes, amendments or additions are not allowed 15.5.
  • Page 36 The CE declaration of conformity can be found at http://www.navilock.de/support/ in the section "Declarations of Conformity" or can be requested from Konformität@navilock.de. WEEE Note The WEEE (Waste Electrical and Electronic Equipment) Directive, which became effective on February 13, 2003 as European Law, led to comprehensive changes in regard to the disposal of waste electronic equipment.
