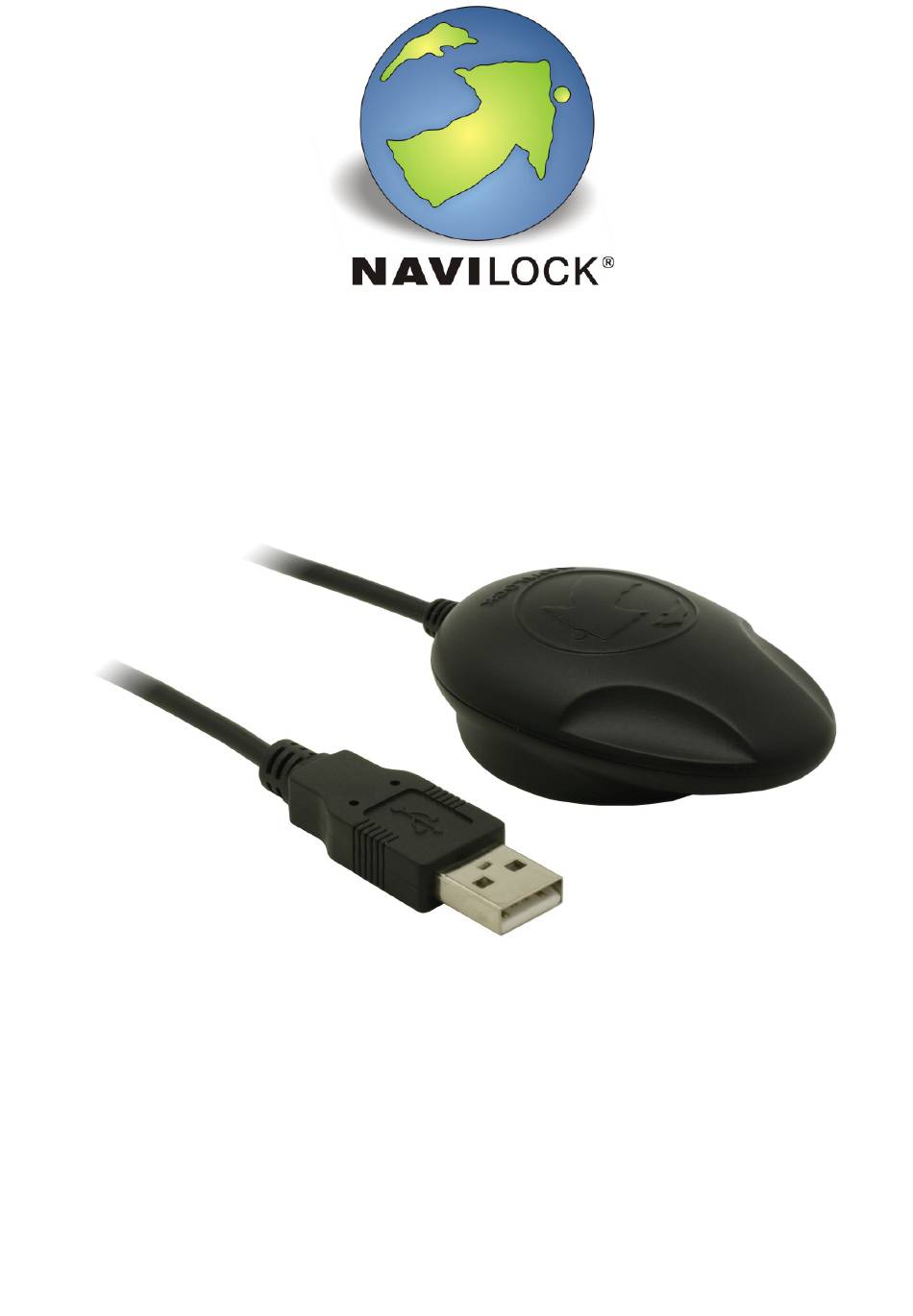

- Page 1 Navilock NL-442U Sirf Star IV GPS USB Receiver User Manual (61994)

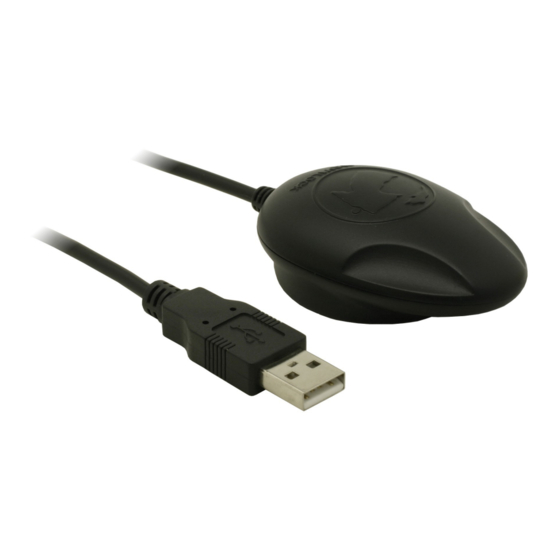

- Page 2 1. Introduction The NL-442U is a USB GPS receiver with internal antenna and a 48 channel Sirf Star IV GPS chipset. The USB interface enables the connection to a notebook, UMPC, Tablet- or Car PC. Due to its extreme compact design it acts as ideal companion on every tour.
- Page 3 2. Operation Connect the USB receiver to a free USB port of your notebook etc.. The NL-442U will be recognized by your Windows OS and a your system will try to install a driver. Cancel this operation and start the respective installation from the CD ROM under the menu driver. Follow the instructions of the installation.
- Page 4 GPS software. It is not possible to use two GPS tools on one GPS Com port at the same time. 6. EGNOS Konfiguration with GPS Info To switch over the NL-442U to WASS/EGNOS turn on, please switch over to the Setup mode, and set the hook selection with WAAS / EGNOS.
- Page 5 Please read under http://msdn2.microsoft.com/en- us/library/Aa969329.aspx 7.4. The NL-442U got in contact with water jet (water jet like e.g. under the shower or heavy rain with installation on the roof). Do not connect the receiver to the notebook etc.. It will be completely destroyed and cannot be repaired anymore.
- Page 6 8. Technical Data Chipset manufacturer/type Sirf Star IV GSD4e GPS Channels Sensitivity -163 dBm Frequency L1, 1575.42 MHz C/A Code 1.023 MHz Chip Rate Target accuracy: Horizontal Position 2,5m 2D RMS SBAS enable Time 1 micro-second. synced with GPS time Speed 0.1m/sec.
- Page 7 Navilock. Navilock is a registered trademark and cannot be used without the written permission of its trademark owner. In no case shall it be modified or amended.
- Page 8 Declaration of conformity The CE declaration of conformity can be found under http://www.navilock.de/support/ in the section of declaration of conformity. WEEE-notice The WEEE (Waste Electrical and Electronic Equipment)-directive, which became effective as European law on February 13 2003, resulted in an all out change in the disposal of disused electro devices. The primarily purpose of this directive is the avoidance of electrical waste (WEEE) and at the same time the support of recycling and other forms of recycling in order to reduce waste.
