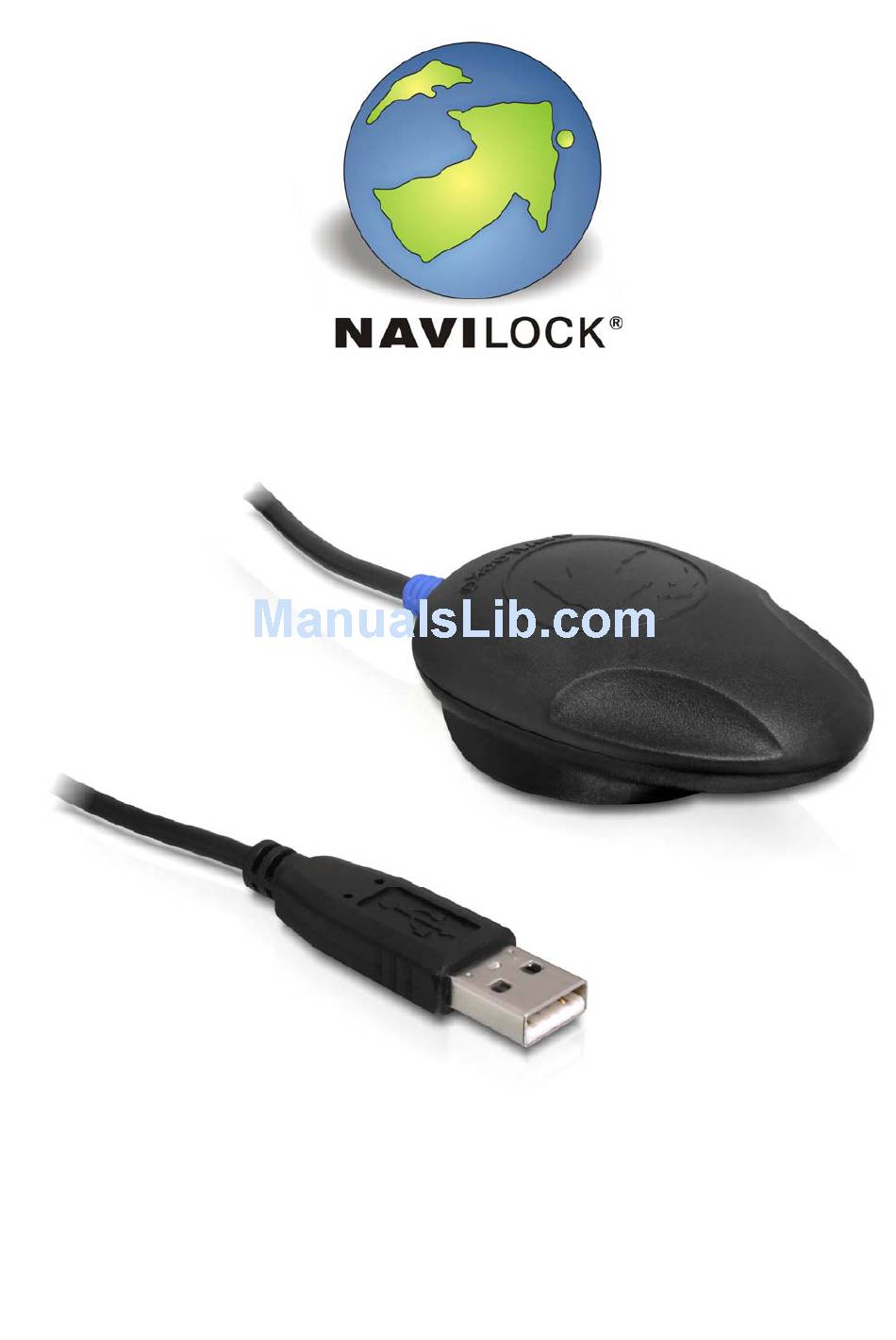

- Page 1 GLONASS NL-662U ublox6 USB receiver Operation manual (61973)
- Page 2 1. Introduction The NL-662U is a USB GNSS receiver with internal antenna and ublox6 GLONASS/ GPS/ ® QZSS SuperSense chipset. The USB interface enables connection to a notebook, UMPC, tablet or car PC. The receiver's bottom side is rubberized and magnetic, which allows for universal positioning.
-
Page 3: Starting Operation
2. Starting operation Plug the USB cable in a free USB port on your notebook etc. The NL-662U will be recognized by your Windows operating system, which will attempt to install a driver. -
Page 4: Led Indicator
If no bars are displayed, please change your position. The NL-662U cannot receive anything in a closed building. If the blue bars are displayed, the receiver is still acquiring the data and verifying the receipt data. - Page 5 6. GNSS Selection You may operate the NL-662U in the following two receive modes: 1. GLONASS (delivery state) 2. GPS with or without QZSS Use the appropriate selection fields under "View, Configuration view, GNSS" to toggle the receiver. This selection window also allows you to turn SBAS ON and OFF. This way, EGNOS/WAAS and other methods to increase the accuracy you defined under "SBAS...
- Page 6 7. Assist GPS configuration with u-Center 7.xx The NL-662U supports AssistNow! AssistNow is a standard A- GNSS service, which increases the performance of the GNSS receiver, by calculating a position almost immediately, even under difficult reception conditions. A- GNSS improves all GNSS capable applications, especially those...
- Page 7 8.2 The green LED continues to light even after a long waiting time, but you still don’t get a Satfix. The NL-662U needs up to 20 minutes for its first Satfix on another continent. To get a Satfix the view to the sky must be unobstructed. Move the NL-602U as far as possible from the wall.
-
Page 8: Specifications
9. Specifications ® Chip set manufacturer/type: ublox6 GLONASS/GPS/QZSS SuperSense Channels: 50 channels Sensitivity: -160 dBm GLONASS Frequency: L1, 1.602,00 MHz GPS/QZS Frequency: L1, 1,575,42 MHz GLONASS C/A Code: 0,511MHz GPS C/A Code: 1.023 MHz chip rate Target precisions: GLONASS Position Horizontal: 5-9 m (>10m outside Russia) Position Horizontal: 2,5 m SBAS... -
Page 9: Warranty Period
Navilock. The brand Navilock is a registered trademark and may not be used without the written authorization of the trademark owner. In no case may it be altered or completed... - Page 10 Brands, trade names, product names and logos of third parties mentioned in this documentation may be trademarks or registered trademarks of the respective owners. Conformity declaration Please download the Declaration of Conformity from http://www.navilock.de/support/ in the conformity area. WEEE note...
