- Page 1 NL-464US User Manual (60122)
-
Page 2: Package Content

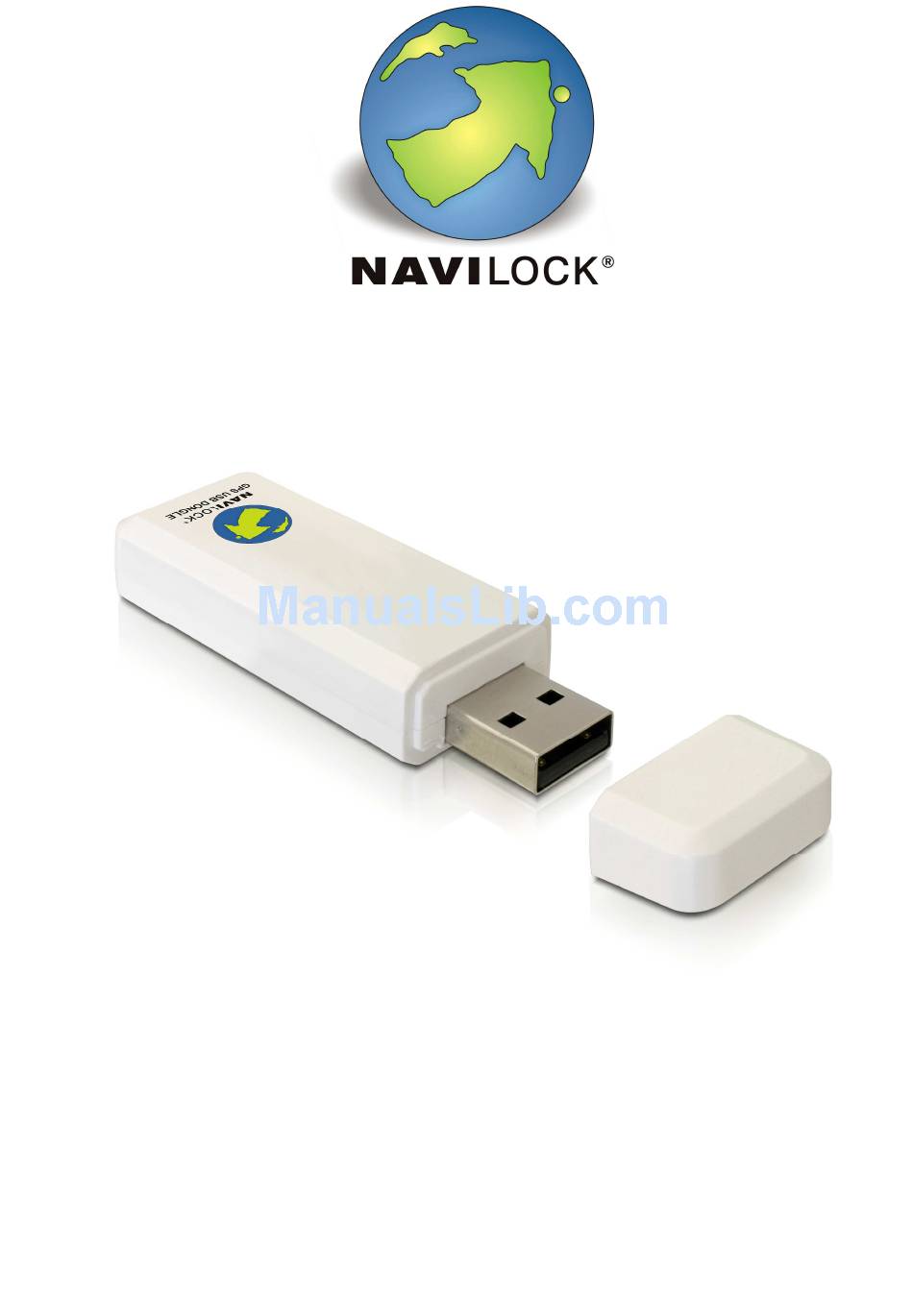

1. Introduction The NL-464US is a USB GPS receiver with internal antenna and a 20 channel Sirf3 GPS chipset. The USB interface enables the connection to a notebook, UMPC, tablet- or Car PC. Due to its extreme compact design it acts as ideal companion on every tour. - Page 3 2. Operation Connect the USB receiver to a free USB port of your notebook etc.. The NL-464US will be recognized by your Windows OS and a your system will try to install a driver. Cancel this operation and start the respective installation from the CD ROM under the menu driver. Follow the instructions of the installation.
- Page 4 4. PC Version COM Port choice 38400 Baud rate choice Turns on/off the GPS Cold start of the GPS receiver switch on additional functions NMEA Protocol window Switching between this window and the visual representation of the NMEA Record 5. Pocket PC/CE Version COM6l COM Port choice 9600...
- Page 5 6.4. The NL-464US got in contact with water jet (water jet like e.g. under the shower or heavy rain with installation on the roof). Do not connect the receiver to the notebook etc.. It will be completely destroyed and cannot be repaired anymore. Please send the receiver with the description „water damage“...
- Page 6 7. Specification GPS Chipset SiRF Star III e/LP Frequency L1, 1575.42 MHZ C/A Code 1.023 MHz chip rate Channels 20 all-in-view tracking Sensitivity -159 dBm Accuracy 5m 2D RMS WAAS enabled Position Horizontal 10m 2D RMS WAAS disabled Velocity 0.1m/sec 95% (SA off), Time 1 micro-second synchronized to GPS time Datum...
- Page 7 Navilock. Navilock is a registered trademark and cannot be used without the written permission of its trademark owner. In no case shall it be modified or amended.
-
Page 8: Declaration Of Conformity
Declaration of conformity The CE declaration of conformity can be found under http://www.navilock.de/support/ in the section of declaration of conformity. WEEE-notice The WEEE (Waste Electrical and Electronic Equipment)-directive, which became effective as European law on February 13 2003, resulted in an all out change in the disposal of disused electro devices. The primarily purpose of this directive is the avoidance of electrical waste (WEEE) and at the same time the support of recycling and other forms of recycling in order to reduce waste.
