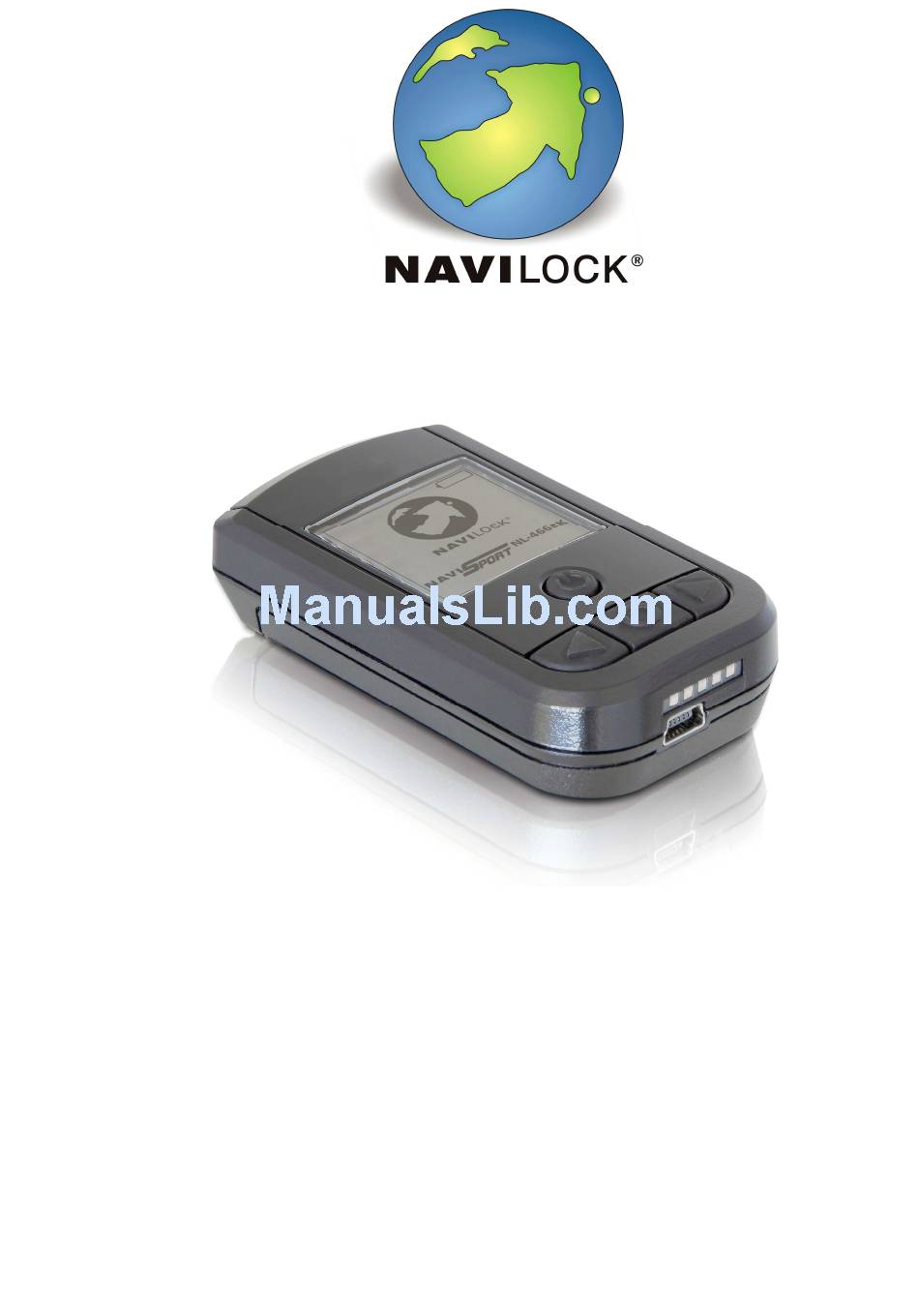

  • Page 1 NL-130BK Bike GPS User manual (61718)

  • Page 2: Electrical Safety

    Thank you for choosing a Navilock product. We are sure that the use of the NL-130BK will bring you much pleasure. In order to avoid anything that could dampen your fun, please read this user manual carefully before starting to use the device.
  • Page 3 NOTE: When the device has been taken from a cold place into a warm one, or vice versa, allow it to reach ambient temperature before turning it on. 2. Specifications Electronic and Mechanical details Item NL-130BK Max. waypoints 130848 Max. routes Display size...
  • Page 4 3.1 Accessories Please confirm that all these parts are included in the package before you start using the device. Should something be missing or damaged, please contact your specialized dealer immediately. NL-130BK Handlebar holder Fastening material Mains Charger with USB connector...
  • Page 5 3.2 Device keys Button Explanation On/Off & Light On/Off switch Marking Waypoint/ Waypoint save / Enter key Enter Left To move the menu to the left Right To move the menu to the right 3.3 Antenna position The GPS antenna is located in the lower part of the housing.
  • Page 6 It will take about 5 to 6 hours to fully charge the battery. Important: Charge the battery completely before starting the NL-130BK for the first time. 4. Startup 4.1 Starting the NL-130BK Press the ON/OFF button for 2 seconds. The startup screen with the Navilock logo will then be displayed.
  • Page 7 NL-130BK. The NaviSport Bike Tool can be used to set the odometer display to another value, for example, if the NL-130BK is to be used by different people. Current speed and daily distance covered. Current speed and average speed.
  • Page 8 Current speed and average altitude (above sea level). Current speed and maximum altitude (above sea level). Current speed and minimum altitude (above sea level). Datalogger information about maximum routes (traces), maximum waypoints (points), remaining routes and remaining waypoints. Saving routes and points I The GPS information provides an indication of the quality of signal reception and the number of satellite signals currently being received.
  • Page 9 “GPS positioning” will be displayed. A waypoint can only be saved after a satellite fix has been achieved, until then, no latitude and longitude data are available. If you save a waypoint, this will be confirmed by “PO| Saved”. “About” screen provides Navilock contact information.
  • Page 10 10. USB Driver Installation 10.1 Installing the USB driver The USB driver is required in order to use the connection between the NL-130BK and the NaviSport Bike Tool. 1) Place the Navilock product CD in the CD-ROM drive of your PC.
  • Page 11 8) Your system starts a search for the driver. 9) Confirm the Windows Logo Test message with “Continue installation.” 10) The driver will be installed in the system.
  • Page 12 11) After it has been included, click “Fertig stellen (Finish).” 12) The COM port assigned to the Navilock NaviSport Bike driver will now be displayed in the device manager list.
  • Page 13 13) After successfully completing the installation please restart your system. A re-boot is necessary otherwise you will encounter an error when the NaviSport Bike Tools attempts to access the device COM port. 10.2 Installing the NaviSport Bike Tool 1) The CD menu has a “TOOLS” button to access to the installation routine of the NaviSport Bike Tool. 2) Click on “Installation”...
  • Page 14 6) All the required data is copied to the installation folder and entered in the registry. The message “Completed” will be displayed. Click “Finish.” 10.3 Starting the NaviSport Bike Tool from the Desktop The Navilock NaviSport Bike Tool can be started immediately, either from the desktop icon or via Start\Programs\Navilock NaviSport Bike\NaviSport Bike...
  • Page 15 “USB Linking” will appear on the display. If not, repeat the previous steps. If you have chosen the wrong item, a mouse icon will be displayed and the NL-130BK will act as a GPS receiver for the PC.
  • Page 16 5) The pre-recorded data from the NL-130BK will be loaded. This is confirmed in a small pop-up window. Make sure you want to delete the read data on the NL-130BK, otherwise click No. The choice is yours. Click No if you don’t want to delete the data.
  • Page 17 a) You can view a track selected by a mouse click (blue background) directly on Google Earth. This program must be separately installed and is available free from the Google Earth website. b) The opened route file shows the details of your track, such as distance in relation to altitude, speed, time and to the Google Maps function.
  • Page 18 10) Confirm the entry by clicking OK. Disconnet the NL-130BK USB cable to turn the device off. Turn it on again and you will see the setting you have just made on the total distance display.
  • Page 19 9) The NL-130BK USB cable can be disconnected only after this message has been displayed. 10) Now turn the NL-130BK on. The firmware version is displayed in the lower right corner of the startup screen. And the version number should now be higher than before.
  • Page 20 Sometimes, even with clear blue skies, the satellite signals can be distorted to such an extent that they cannot be used. This is not the fault of the NL-130BK, but due to the basic physical laws of electromagnetic radiation. Switch the NL-130BK off and try again later. Look for a clear position, preferably not situated near the exterior walls of a building, as these may cause reflections that interfere with the signal.
  • Page 21 16.4 Copyright Without explicit approval in writing from Navilock, no part of this user manual may be reproduced or disseminated for any purpose whatever. This is irrespective of the kind and method or the means – electronic or mechanical – this is used.
  • Page 22 Declaration of Conformity The CE declaration of conformity can be found at http://www.navilock.de/support/ in the conformity declaration section, or requested by sending an e-mail to Konformität@navilock.de. WEEE Note The WEEE (Waste Electrical and Electronic Equipment) Directive, which became effective on February 13, 2003, as European Law, led to comprehensive changes with regard to the disposal of waste electronic equipment.
  • Page 23 Date: 01.12.2009...
