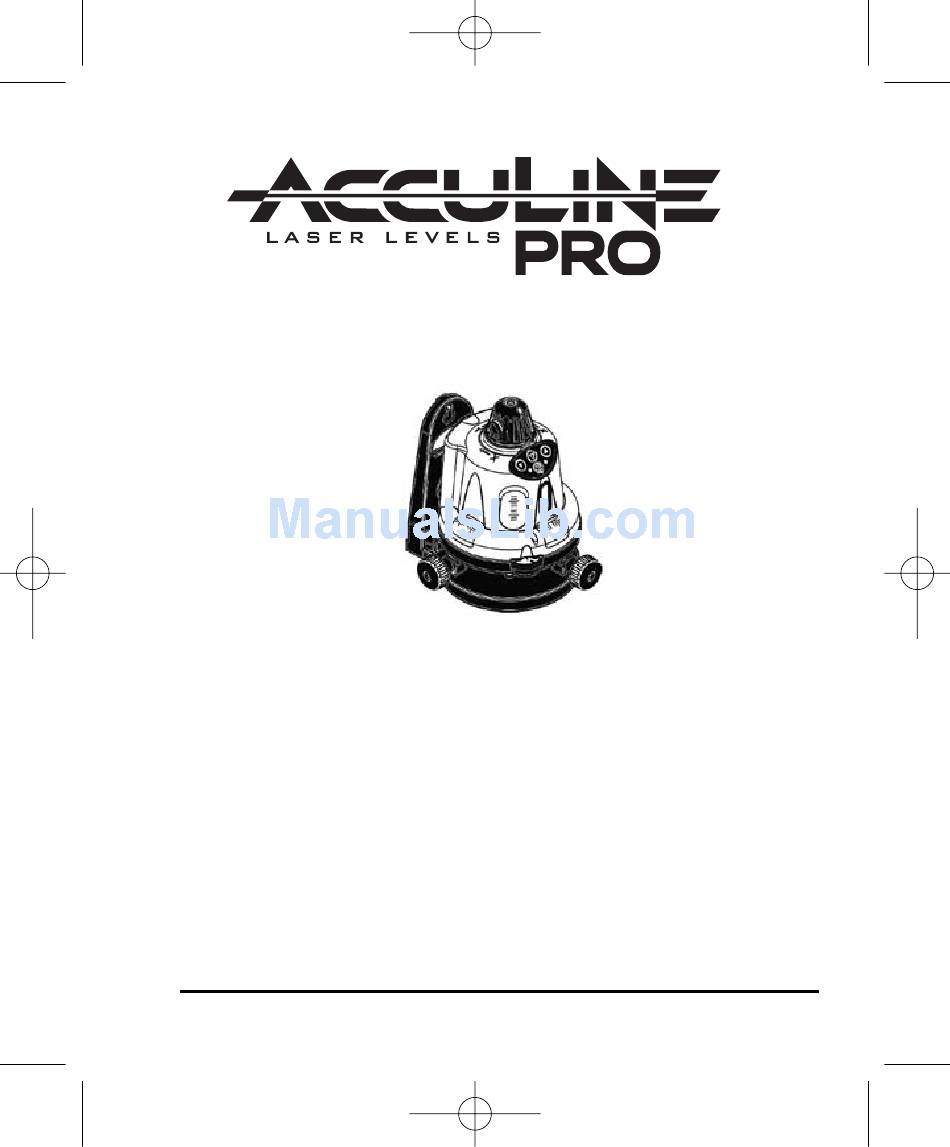

AccuLine 40-6500 Instruction Manual

Manual-leveling rotary laser level
Hide thumbs Also See for 40-6500:
Table of Contents

Advertisement

Quick Links

Download this manual
40-6500_6510 English
4/11/05
2:23 PM
Page 1
™
Manual-Leveling Rotary Laser Level
Model Nos. 40-6500 and 40-6510
Instruction Manual
Congratulations on your choice of this Manual-Leveling Rotary Laser
Level. We suggest you read this instruction manual thoroughly before
using the instrument. Save this instruction manual for future use.
This product is a multi-functional laser instrument combining a rotating
laser with a vertical line and the plumb beam. Visibility of the beam
depends on the lighting in various work areas.
This is a Class IIIa laser tool and is manufactured to comply
with CFR 21, parts 1040.10 and 1040.11 as well as international
safety rule IEC 285.
©2005 Johnson Level & Tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AccuLine 40-6500

Summary of Contents for AccuLine 40-6500

  • Page 1 2:23 PM Page 1 ™ Manual-Leveling Rotary Laser Level Model Nos. 40-6500 and 40-6510 Instruction Manual Congratulations on your choice of this Manual-Leveling Rotary Laser Level. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.
  • Page 2 12. Product Warranty 5. Location of Parts/Components 13. Product Registration 6. Operating Instructions 14. Accessories 7. Using the Product 1. Kit Contents For Model No. 40-6500 Description Qty. Manual-Leveling Rotary Laser Level “AA” Alkaline Batteries 6V Battery Adaptor Tinted Glasses...

  • Page 3: Features And Functions

    40-6500_6510 English 4/11/05 2:23 PM Page 3 2. Features and Functions • Able to emit horizontal laser plane and plumb-up beam at an angle of 90 degrees. • Able to emit vertical laser plane and horizontal beam. • Able to emit a line perpendicular to rotating plane, to form laser cross line movable by 360 degrees.
  • Page 4 • Use only original AccuLine Pro ™ parts and accessories purchased from your AccuLine Pro authorized dealer. Use of non-AccuLine Pro parts and accessories will void warranty. WARNING! The tinted goggles are designed to enhance the visibility of the laser beam. They DO NOT offer protection to the eyes from direct exposure of the laser beam.
  • Page 5 40-6500_6510 English 4/11/05 2:23 PM Page 5 4. Location/Content of Warning Labels ©2005 Johnson Level & Tool...
  • Page 6 40-6500_6510 English 4/11/05 2:23 PM Page 6 5. Location of Part/Components Plumb-Up Laser Beam Output Aperture Rotating Laser Output Aperture Operating Panel Z-Direction Level Vial X-Direction Level Vial Vertical Laser Output Window X/Z-Direction Y-Direction Leveling Knob Level Vial Y-Direction Gradient Adjusting Knob Leveling Knob Battery Door Support Board...

  • Page 7: Operating Instructions

    40-6500_6510 English 4/11/05 2:23 PM Page 7 6. Operating Instructions IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Battery Installation Note: Always check to be sure that the on/off switch is in the off position before removing and replacing batteries.
  • Page 8 40-6500_6510 English 4/11/05 2:23 PM Page 8 Level Vial Adjusting Method Y-Direction X/Z-Direction Level Vial Leveling Knob 5. Turn the instrument on, Plumb-Up select your desired work- Laser Beam ing status according to Rotating the guide from the Laser Line instruction manual, and 0 Scale Indicated then start operation.
  • Page 9 40-6500_6510 English 4/11/05 2:23 PM Page 9 Vertical Output Status Instruction 1. Put four “AA” alkaline batteries Z-Direction Rotating into the instrument or power Laser Line Leveling Knob the instrument by connecting DC 6V through power jack. 2. Mount the instrument on platform or a leveling tripod, connecting with tripod by the 5/8"...
  • Page 10 40-6500_6510 English 4/11/05 2:23 PM Page 10 3. Regulate the gradient adjusting knob to tilt the level vial in Y-direction to desired gradient (0%~4%) (fig. 1). 4. Level the vial by the leveling knob (fig. 2). Figure 2 Figure 1 Slope 5.

  • Page 11: Using The Product

    40-6500_6510 English 4/11/05 2:23 PM Page 11 Turn the instrument to make the vertical laser in different position The Acme formed by Plumb-Up Laser Horizontal Scan Laser Vertical Laser Figure 5 7. Using the Product Operating Panel 1. Power/Vertical Line Switch Button 2.
  • Page 12 40-6500_6510 English 4/11/05 2:23 PM Page 12 1st Press 2nd Press 3rd Press Power/Vertical Power Power Line On Press Again • Vertical Line On: With a second press of the power button, the vertical laser is also turned on. • Power Off: A third press of the power button, turns all of the lasers and power indicator lamps off.
  • Page 13 40-6500_6510 English 4/11/05 2:23 PM Page 13 Up/Down Key • In high-speed scan mode, pressing the key will increase scan speed. Pressing the key will decrease scan speed. Note: The instrument rotates in highest speed when it is initially powered on. •...
  • Page 14 40-6500_6510 English 4/11/05 2:23 PM Page 14 (b) Display 1. Power symbol 2. Low battery symbol 3. Coarse/Fine detection symbol 4. Sound symbol 5. Detecting position symbol 3. Operation Guide (a) Installation of battery • Open the battery-box cap and connect the cords inside with the two polarities of the 9V battery.
  • Page 15 40-6500_6510 English 4/11/05 2:23 PM Page 15 (c) Using the clamp holder 1. clamp bolt 2. M5 screw • Position the instrument on the clamp holder by the M5 screw of the clamp holder. • Position the clamp holder on tower rod or other types of surveying rods by the clamp bolt of the clamp holder.
  • Page 16 40-6500_6510 English 4/11/05 2:23 PM Page 16 2. Fine detection 1. power symbol 2. fine detection symbol • Press coarse/fine detection button. The instrument is ready for fine detection. • Move the instrument slightly up and downwards like the coarse detection Figure 6 procedure.
  • Page 17 40-6500_6510 English 4/11/05 2:23 PM Page 17 (g) Detector Maintenance • When you are done using the detector, return it to its packing case. • Keep the instrument, particularly the detecting window, clean. If unit becomes dusty, use a clean cloth to gently wipe it clean. •...
  • Page 18 40-6500_6510 English 4/11/05 2:23 PM Page 18 2. Put the instrument under vertical output mode on tripod. 3. First, face the instrument towards wall A, and adjust the leveling knob to center the bubble of Z-direction vial. Project laser beam and mark e2 for the red laser point shown on wall A.

  • Page 19: Technical Specifications

    40-6500_6510 English 4/11/05 2:23 PM Page 19 3. Measure the distance La between a1 and a2, and Lb between b1 and b2. If (La+Lb)/L or |(Lb-La)/L| is less than or equal to 0.118" (0.3mm), the accuracy is beyond tolerance, reference section 12 of this document.

  • Page 20: Application Demonstrations

    40-6500_6510 English 4/11/05 2:23 PM Page 20 10. Application Demonstrations Plumb reference for ceiling Reference for anti-static installation flooring installation Reference for window Reference for baseboard installation installation Reference for hanging pictures Reference for dormer installation ©2005 Johnson Level & Tool...

  • Page 21: Care And Handling

    Do not return this product to the store/retailer or place of purchase. Required repair/calibration must be done by an authorized AccuLine Pro™ service center or Johnson Level & Tool's limited warranty, if applicable, will be void and there will be NO WARRANTY. Contact our Customer Service Department to obtain a Return Material Authorization (RMA) number for return to an authorized service center.

  • Page 22: Product Registration

    40-6500_6510 English 4/11/05 2:23 PM Page 22 NOTE: The user is responsible for the proper use and care of the product. It is the responsibility of the user to verify the calibration of the instrument before each use. For further assistance, or if you experience problems with this product that are not addressed in this instruction manual, please contact our Customer Service Department.
  • Page 23 14. Accessories AccuLine Pro™ accessories are available for purchase through authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.
  • Page 24 40-6500_6510 English 4/11/05 2:23 PM Page 24 ©2005 Johnson Level & Tool...
