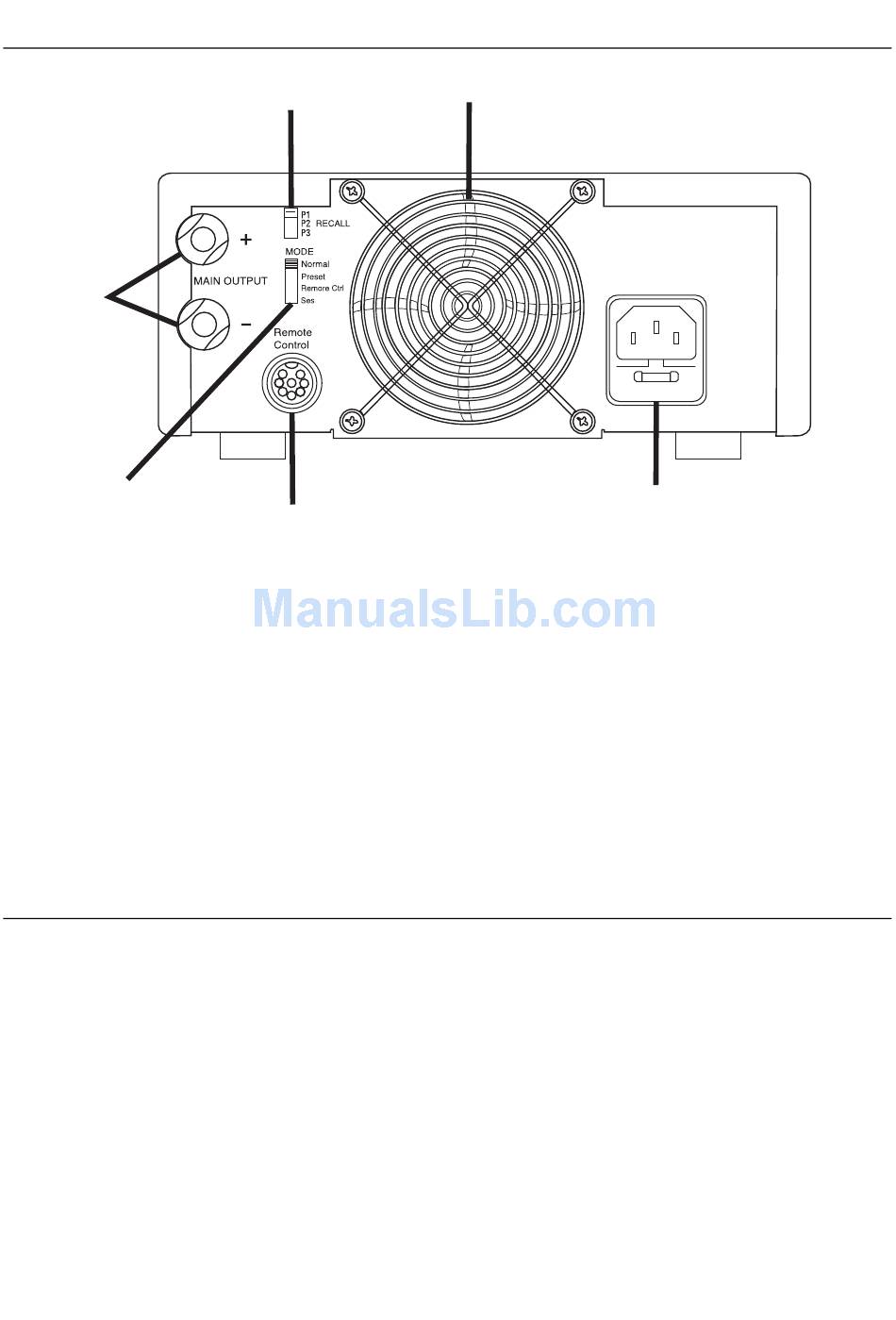

Rear Panel Description
1
6
1. Main Output (20 Amps Max.)
2. P1, P2 and P3 Recall Switch
3. Cooling Fan for Ventilation
4. AC input Plug and Fuse
5. Remote Control Connector
6. Mode Switch
Mode Descriptions
Mode Selection
The power supply has four (4) modes of operation: NORMAL, PRESET, SET and REMOTE
CONTROL mode. Slide the Mode Selection Switch to the desired Mode. The power supply
defaults to the NORMAL Mode.
Normal Mode
Normal Mode is the factory preset mode. The power supply's output voltage and current are
controlled by the dual action volume knobs. Push the knobs to toggle the coarse and fine
tuning; notice the subtle changes in brightness of the related LED. Adjust the knob to the
desired value first with the Coarse adjustment and then with the Fine tune adjustment. Turn
the Current knob gently in any direction to check the preset current level. The display will
resume its normal brightness after a few seconds to confirm the adjustment.
2
5
4
3
4
