Da-Lite Designer Contour® Specification Data page 2

PRODUCT NOTES
• All surfaces will be seamless in standard sizes.
• Overall case length dimensions +/- ¼".
• Detail dimensional drawings and installation
instructions available upon request.
• Specifications subject to change without notice.
• Custom formats and sizes available upon request.
• Optional Accessories: to provide clearance: Furnish 6"
heavy extension wall brackets to mount screen. To
provide for keystone elimination: Furnish #11 or #23
adjustable extension wall brackets. Furnish magnetic
tilt lock for keystone elimination.
• NOTE: Brackets also are used for mounting screen
across a corner.

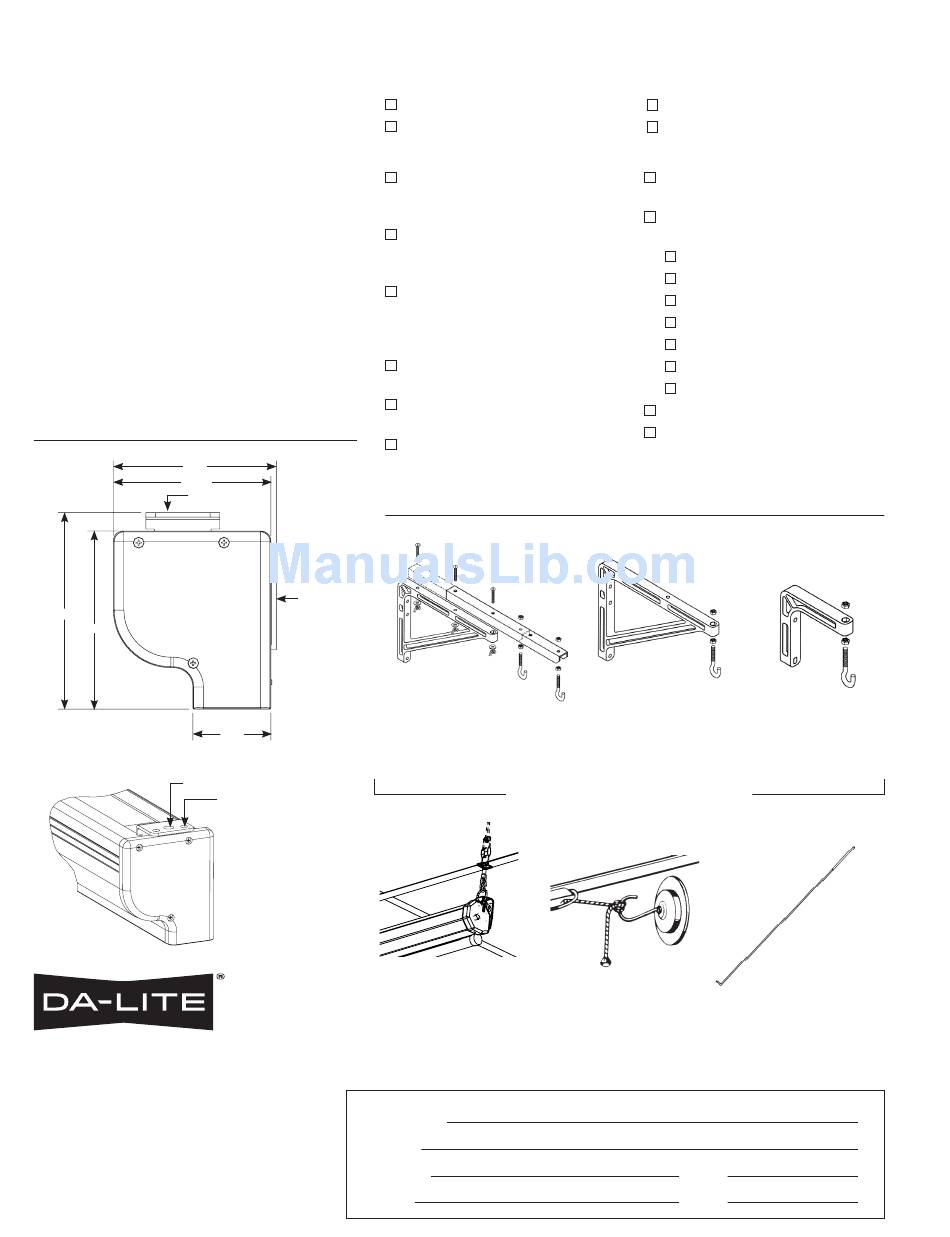

PRODUCT VIEWS
4 ¼"
4 3/32"
Ceiling/Hook Mount
Bracket
5 1/8"
4 5/8"
Hook Mount Hole
A Milestone AV Technologies Brand
3100 North Detroit Street
Warsaw, Indiana 46582
P: 574.267.8101 or 800.622.3737
F: 574.267.7804 or 877.325.4832
E: info@da-lite.com
www.da-lite.com
DL–0213 11.13
© 2013 Milestone AV Technologies LLC. Printed in U.S.A.
WHEN ORDERING, MARK APPROPRIATE SELECTIONS:
1. Select size from charts on the other side.
2. Select viewing surface (All Da-Lite surfaces are GREENGUARD GOLD Certified.):
3. Optional accessories:
ACCESSORIES
Wall Mount
Bracket
No. 23 Adjustable Wall Bracket
2 1/ 32 "
Screen can be extended 10", 14", 153/4",
18¼", 20" or 24" from wall by wing nut
and bolt adjustment.
Ceiling Mount
Holes
T-Bar Clip for drop ceiling,
50 lb. capacity.
Project Name:
Architect:
Contractor:
Reseller:
Matte White
High Power®
No. 6 Wall Bracket – 6" non-adjustable
extension brackets (75# per pair
maximum) (black or white).
No. 11 Wall Bracket – 10" or 14" non-
adjustable extension brackets (75# per
pair maximum) (black or white).
No. 23 Adjustable Wall Bracket – 10", 14",
153/4", 18¼", 20", or 24" adjustable
extension brackets (75# per pair
maximum) (black or white).
Tilt-Lock for Keystone Elimination
(used with extension brackets).
T-Bar Clip for drop ceilings (50# per
pair maximum) (black or white).
Pull Rod – 38".
Extension Wall Brackets (75# Per Pair Maximum)
Tilt Lock for Keystone
elimination. Used with
extension brackets.
High Contrast Matte White
Video Spectra 1.5
No borders (Black masking borders
standard).
Veneer Case Cover (Choose from
seven standard veneers).
Light Oak
Medium Oak
Natural Walnut
Heritage Walnut
Mahogany
Cherry
Honey Maple
Graphite case color.
Black case (white standard).
No. 11 Wall Bracket No. 6 Wall Bracket
Screen can be extended 10" Screen can be extended
or 14" from wall by changing 6" from wall.
position of bracket.
Pull Rod - 38"
Zinc plated rod with
black plastic handle
grip allows easy
access to screen
when mounted out of
reach. Also can be
used as a pointer.
