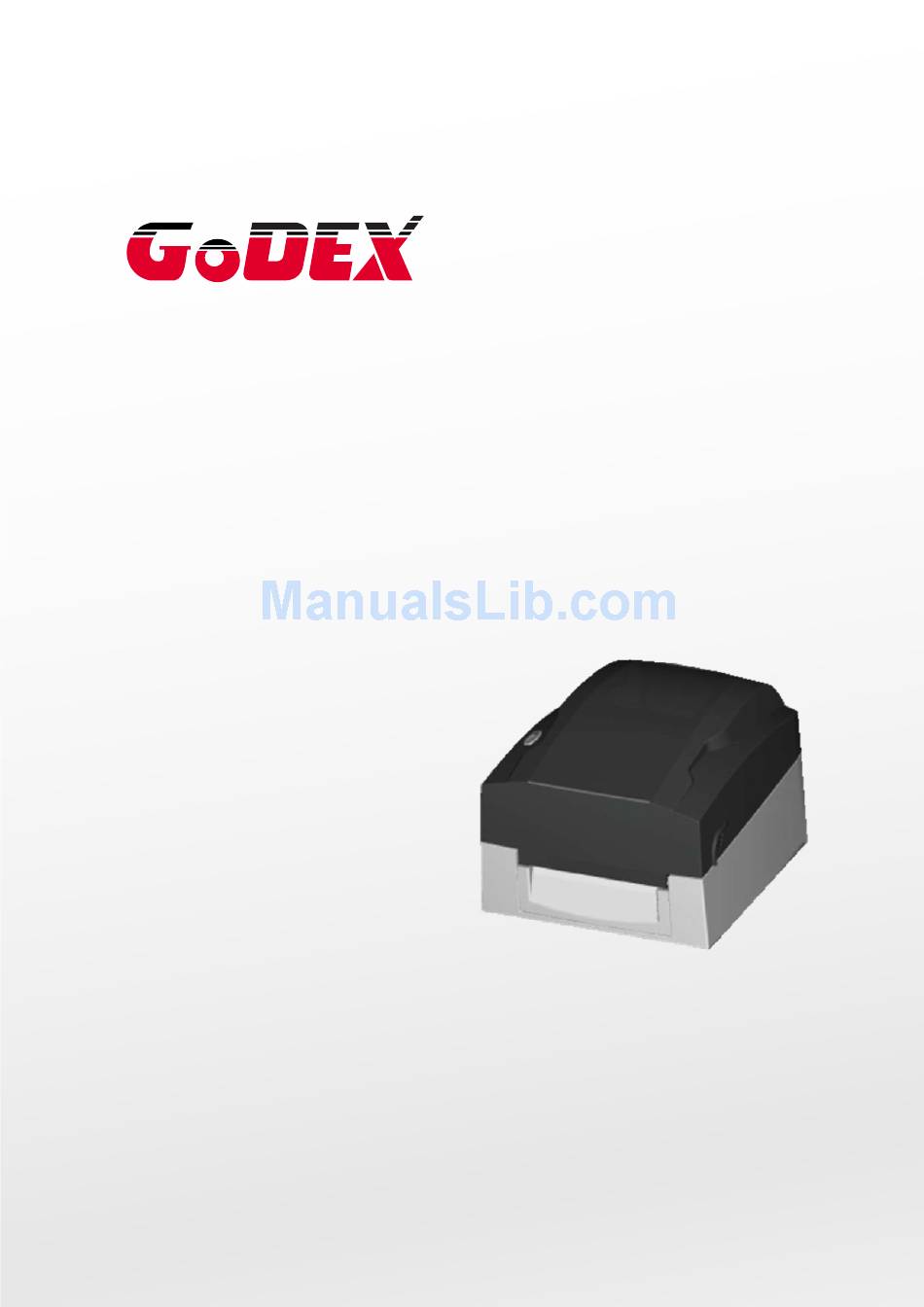

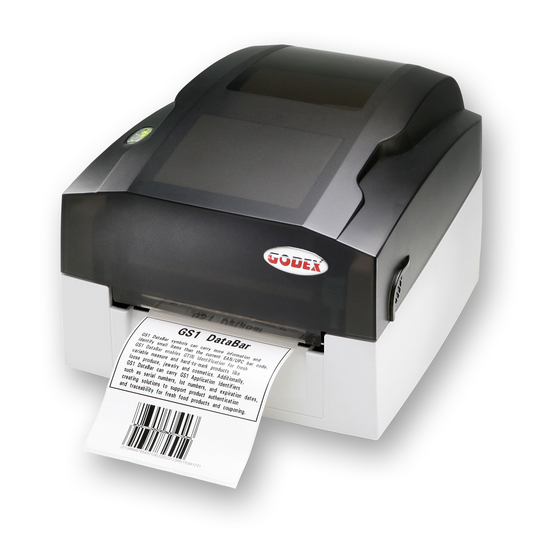

- Page 1 EZ1105 / EZ1305 BARCODE PRINTER USER MANUAL USER MANUAL : EZ1105 / EZ1305 VERSION : Rev. C ISSUE DATE : 2013.07.09 : 920-013611-02...
- Page 2 GB4943.1-2011, EN 55022:2006/A1:2007, IEC 61000-4-2:2001 ED. 1.2, CFR 47, Part 15 WARNING This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. 此为Class A产品，在生活环境中，该产品可能造成无线电干扰，在这种情况下，可能需要用户对 其干扰采取切实可行的措施。 EZ1105 / EZ1305 User Manual...
-
Page 3: Safety Instructions
Only use with power supply adapter model: WDS060240 (7A). Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Specifications are subject to change without notice. EZ1105 / EZ1305 User Manual... -
Page 4: Table Of Contents
1. BARCODE PRINTER ..................1 1-1. Box Contents ........................1 1-2. Specifications ........................1 1-3. Interfaces ..........................3 1-4. Getting to know your printer ....................4 2. PRINTER SETUP ....................6 2-1. Loading the ribbon ......................6 2-2. Loading the label roll ......................8 2-3. Installing the label supply hub ..................9 2-4. -
Page 5: Barcode Printer
Width: 1.18” Min - 4.33” (30 mm - 110 mm) Max Ribbon roll diameter.: 1.57“ (40 mm) Core diameter: 0.5” (12.7 mm) with notch EZPL, GEPL (Godex Eltron® Printer Language), GZPL (Godex Zebra® Printer Language Printer Language) Label design software: QLabel-IV (for EZPL only) Software Driver &... - Page 6 ** Minimum print height specification compliance can be dependent on non-standard material variables such as label type, thickness, spacing, liner construction, etc. Godex is pleased to test non-standard materials for minimum height printing capability.
-
Page 7: Interfaces
Baud rate 9600, no parity, 8 data bits, 1 stop bit, XON/XOFF protocol settings and RTS/CTS RS232 housing (9-pin to 9-pin) DB9 socket DB9 plug +5V, max 500mA Computer Printer Note The total current to the serial port may not exceed 500 mA. 【 】 EZ1105 / EZ1305 User Manual... -
Page 8: Getting To Know Your Printer
Release buttons for opening the printer cover Printer cover Label supply hub Ribbon feed mechanism Print mechanism Holder for ribbon rewind core FEED button Release catches (left/right) Ribbon viewing window Screws for adjusting the print head pressure (left/right) EZ1105 / EZ1305 User Manual... - Page 9 Paper feed roller Screw for adjusting the print line Holder for ribbon supply core Label sensor Feed slot for continuous labels On/off switch Power jack USB port Ethernet port (optional) Serial port / RS-232 (optional) EZ1105 / EZ1305 User Manual...
-
Page 10: Printer Setup
Install the ribbon rewind core by placing first its right-hand side and then its left-hand side on the holder. Release and lift the print mechanism. EZ1105 / EZ1305 User Manual... - Page 11 Turn the ribbon feed mechanism to tighten the ribbon until it has no wrinkles. Close the print mechanism, making sure that it clicks into place. EZ1105 / EZ1305 User Manual...
-
Page 12: Loading The Label Roll
Place the label roll on the label supply hub. Release the print mechanism and lift it. Pass the labels through the paper guides up to the tear-off plate. Adjust the paper guides to the label width. Close the print mechanism. EZ1105 / EZ1305 User Manual... -
Page 13: Installing The Label Supply Hub
2-3. Installing the label supply hub (A) Installing the label supply hub for 1" cores (B) Installing the label supply hub for 1.5" cores EZ1105 / EZ1305 User Manual... -
Page 14: Connecting The Printer To The Host Computer
Connect the power cord to the AC adapter and connect the adapter to the printer. Connect the USB / parallel cable to the printer and host computer. Switch on the printer. The operator panel should now light up. EZ1105 / EZ1305 User Manual... -
Page 15: Installing The Driver
Select the icon for the driver file and click it to start the installation. Follow the instructions on the screen. The Driver Wizard guides you through the installation procedure. Select "Install printer drivers". Specify your printer model. EZ1105 / EZ1305 User Manual... - Page 16 "Finish" to start copying the driver files. 10. Wait until copying is complete, then finish the installation. 11. Once the driver installation is complete, the new printer should appear in the "Printers and Faxes" folder. EZ1105 / EZ1305 User Manual...
-
Page 17: Operator Panel
3. Switch on the printer, keeping the FEED button pressed. When the LED starts to flash red, release the FEED button. The printer will now measure the label stock and store the label height. 4. Once the printer has successfully measured the label stock, it will print a self-test label. EZ1105 / EZ1305 User Manual... -
Page 18: Self Test
3-4. Self test The self-test function lets you check whether the printer is functioning normally. The contents of a self-test printout are listed below. EZ1105 / EZ1305 User Manual... -
Page 19: Error Alerts
Wait for the print head to cool down The print head Print head to operating temperature. The temperature is too error printer will then switch to standby high. mode and the LED will stop flashing. EZ1105 / EZ1305 User Manual... -
Page 20: Accessories
Secure the RS232 bracket supplied with the printer on the motherboard using the fastening screw and the earthing screw. Plug one end of the connection cable into the module. EZ1105 / EZ1305 User Manual... - Page 21 Please make sure that the screw holes are not covered by cables or the motherboard. 12. Replace the bottom part of the printer housing as shown in the illustration. 13. Secure the printer housing using the three screws you removed earlier. EZ1105 / EZ1305 User Manual...
-
Page 22: Installing The Ethernet Module
Hold the motherboard by the back panel and pull it up. Then turn it over and place it on the print mechanism face down. To remove the motherboard back panel, unscrew the earthing screw and the back panel fastening screw. EZ1105 / EZ1305 User Manual... - Page 23 Secure the Ethernet module on the motherboard using the fastening screw. Plug one end of the connection cable into the motherboard and the other end into the Ethernet module. EZ1105 / EZ1305 User Manual...
- Page 24 Once you have finished installing the Ethernet module, the command "^XSET,USBETHERNET,1" must be sent to the printer to enable the Ethernet module. While the Ethernet module is enabled, the USB port is disabled. To enable it again, send the command "^XSET,USBETHERNET,0" to the printer. EZ1105 / EZ1305 User Manual...
-
Page 25: Maintenance And Adjustment
You will then need to adjust the print head pressure. Open the printer cover. Remove the ribbon. Use a screw driver and gently turn the adjustment screws for the print head to increase or reduce the print head pressure. EZ1105 / EZ1305 User Manual... -
Page 26: Adjusting The Print Line
A as indicated by the blue arrow, turn the adjustment wheel anticlockwise (see arrow 1). To move the print head in direction B as indicated by the blue arrow, turn the adjustment wheel clockwise (see arrow 2). EZ1105 / EZ1305 User Manual... -
Page 27: Troubleshooting
The printed image is Check the thermal print head for dust or dirt. (See 5-1. ♦ blurred. Cleaning the print head) Note 【 】 If any problems occur that are not described here, please contact your dealer. EZ1105 / EZ1305 User Manual...
