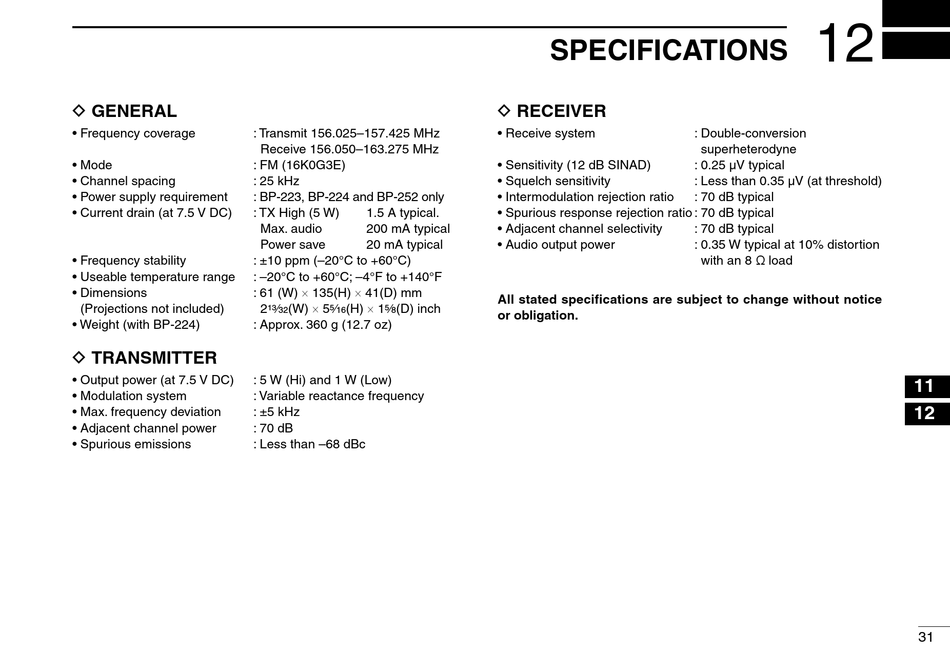

Specifications - Icom IC-M32 Instruction Manual

D GENERAL
• Frequency coverage
• Mode
• Channel spacing
• Power supply requirement
• Current drain (at 7.5 V DC)
• Frequency stability
• Useable temperature range
• Dimensions
(Projections not included)
• Weight (with BP-224)
D TRANSMITTER
• Output power (at 7.5 V DC)
• Modulation system
• Max. frequency deviation
• Adjacent channel power
• Spurious emissions
: Transmit 156.025–157.425 MHz
Receive 156.050–163.275 MHz
: FM (16K0G3E)
: 25 kHz
: BP-223, BP-224 and BP-252 only
: TX High (5 W) 1.5 A typical.
Max. audio 200 mA typical
Power save 20 mA typical
: ±10 ppm (–20°C to +60°C)
: –20°C to +60°C; –4°F to +140°F
: 61 (W) × 135(H) × 41(D) mm
(W) × 5 (H) × 1
2 ⁄ ⁄ ⁄ (D) inch
13 5 5
32 16 8
: Approx. 360 g (12.7 oz)
: 5 W (Hi) and 1 W (Low)
: Variable reactance frequency
: ±5 kHz
: 70 dB
: Less than –68 dBc

SPECIFICATIONS

D RECEIVER
• Receive system
• Sensitivity (12 dB SINAD)
• Squelch sensitivity
• Intermodulation rejection ratio
• Spurious response rejection ratio : 70 dB typical
• Adjacent channel selectivity
• Audio output power
All stated specifications are subject to change without notice
or obligation�
12
: Double-conversion
superheterodyne
: 0.25 µV typical
: Less than 0.35 µV (at threshold)
: 70 dB typical
: 70 dB typical
: 0.35 W typical at 10% distortion
with an 8 Ω load
11
12
31
