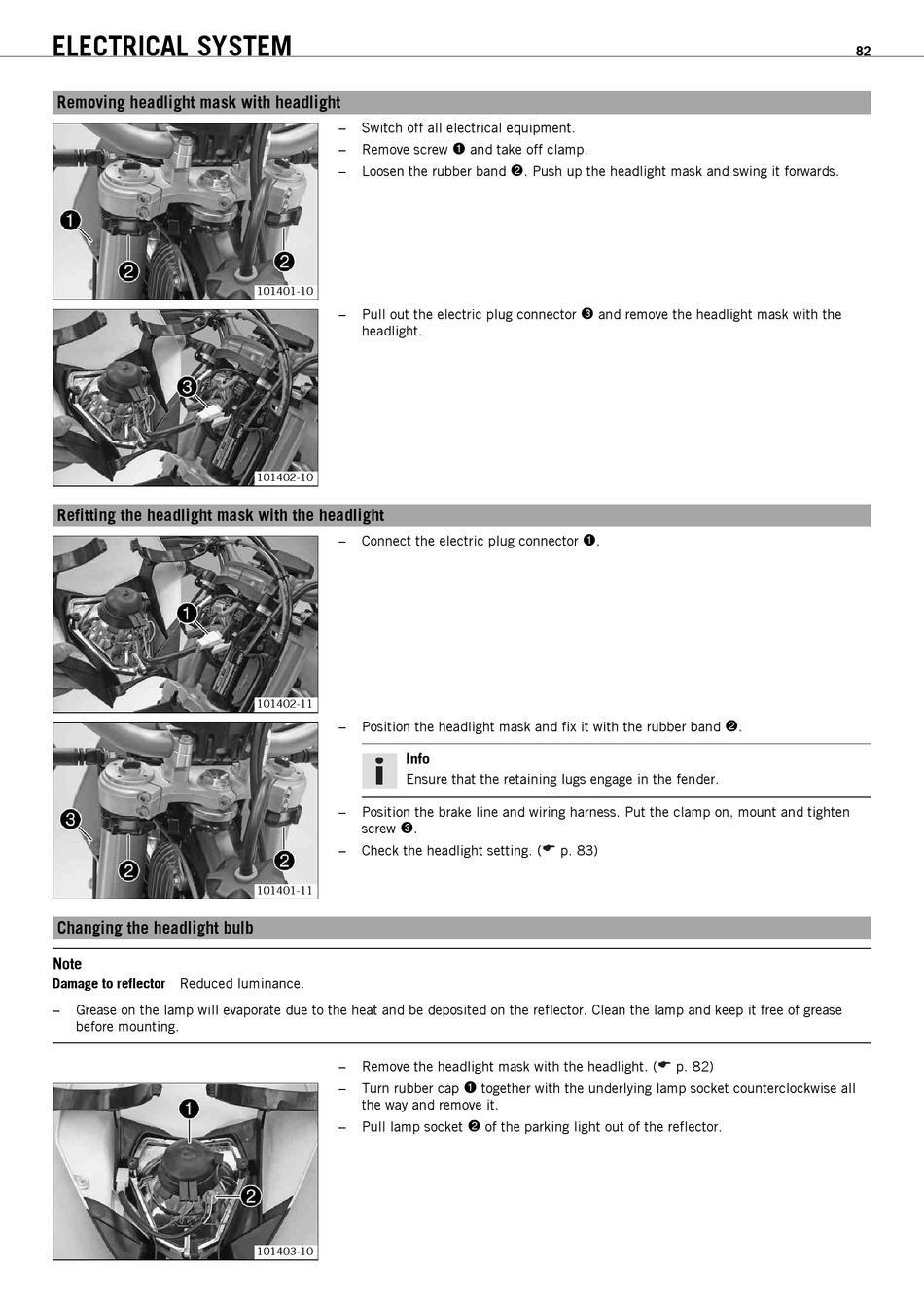

ELECTRICAL SYSTEM
Removing headlight mask with headlight
13.7
Refitting the headlight mask with the headlight
13.8
Changing the headlight bulb
13.9
Note
Damage to reflector Reduced luminance.
–
Grease on the lamp will evaporate due to the heat and be deposited on the reflector. Clean the lamp and keep it free of grease
before mounting.
–
Switch off all electrical equipment.
–
Remove screw
–
Loosen the rubber band
101401-10
–
Pull out the electric plug connector
headlight.
101402-10
–
Connect the electric plug connector
101402-11
–
Position the headlight mask and fix it with the rubber band
Info
Ensure that the retaining lugs engage in the fender.
–
Position the brake line and wiring harness. Put the clamp on, mount and tighten
screw
.
–
Check the headlight setting. (
101401-11
–
Remove the headlight mask with the headlight. (
–
Turn rubber cap
the way and remove it.
–
Pull lamp socket
101403-10
and take off clamp.
. Push up the headlight mask and swing it forwards.
and remove the headlight mask with the
.
p. 83)
together with the underlying lamp socket counterclockwise all
of the parking light out of the reflector.
.
p. 82)
82
