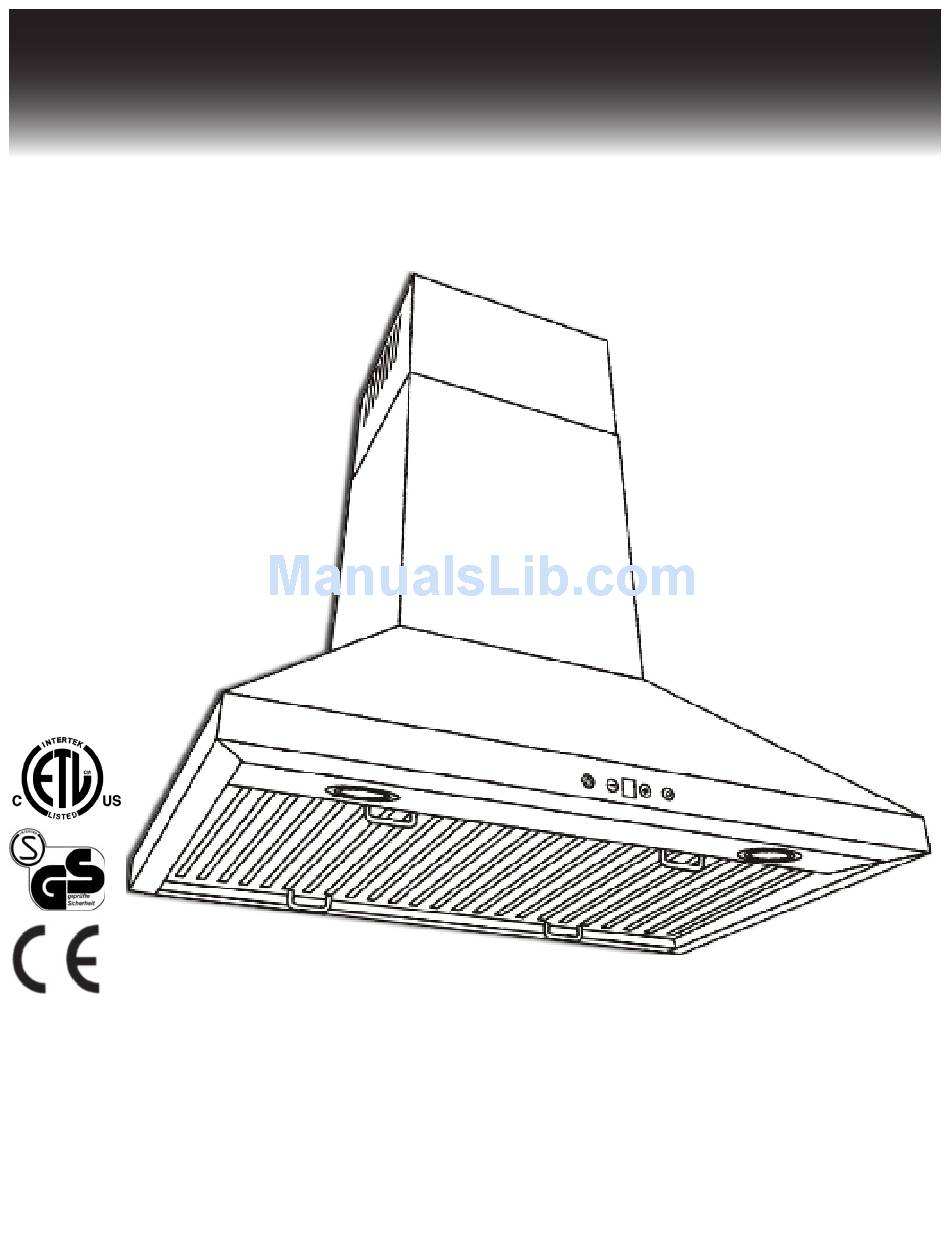

- Page 1 Installation Guide and Users Manual AirPRO 238 Professional Series (PSD/F/L/Z) IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Wall Mount Range Hood Rev. 3046u.2a...
-
Page 3: Important Safety Notice
Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction. - Page 4 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
-
Page 5: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Troubleshooting...........17 Tools needed............3 Use and care information.......18 Parts supplied...........4 Specifications..........18 Venting requirements........5 MAINTENANCE Mount heights & clearance......5-6 Cleaning..........19 Calculating vent system length.......6 Replacing filter & light bulb......19 Venting methods & ductless conversion..7 WARRANTY Charcoal filters &... -
Page 6: Parts Supplied
Parts supplied: Range Hood (vary with model) Flappers Chimney Mounting Bracket Stainless Steel Baffle Filter(s) Lower standard chimney Upper standard chimney Grease Tunnel Charcoal Filter Air diverter (Optional re-circulating kit) (Optional re-circulating kit) Description Quantity Toggle Bolts 2 Pcs Duct Set 1 Set Body Hook 2 Pcs... -
Page 7: Venting Requirements
Venting Requirements Height & Clearance • Vent system must terminate to the outside Mounting (roof or side wall). Maximum* ceil- Bracket • DO NOT terminate the vent system in an at- ing clearance Standard 110” at 31” hood tic or other enclosed area. Upper mounting height •... -
Page 8: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 9: Venting Methods & Ductless Conversion
Venting Methods • This range hood is factory set for venting through the roof or wall. For non-vented (re-circulating) installa- tions, see Ductless Conversion on Page 7. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: •... -
Page 10: Charcoal Filters & Electrical Requirements
Charcoal Filter Installation NOTE: The charcoal filters are preinstalled if you purchased the range hood with re-circulating kit from us. Remove stainless steel baffle filters on hood. Remove the safety filter under the stainless steel baffle filters by unscrewing two screws, then position the charcoal filter and align the screw holes, reinstall and fasten two screws. -
Page 11: Preparation
Preparation WARNING Excessive Weight Require three or more person to move and install this range hood. Spinal or other bodi- ly injuries could occur if it is not followed. Advanced Preparations: Read the entire installation guide and users manual thoroughly, understand instructions and warnings. Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 12. -
Page 12: Installation
Installation WARNING Installations (refer to Page 4 for parts): Measure the distance between stove top and the bottom of Excessive Weight range hood. A distance of 28” to 31” is recommended*. Require three or more person to move and *Due to different ceiling height configurations, recom- install this range hood. -
Page 13: Level
Installation (Continued) Connect the range hood to a designated standard outlet (please refer the product label for the suitable voltage of this unit) or cut off the plug and connect three wires (black, white and green) to house wires and cap with wire connectors. Connect according to colors (i.e. -
Page 14: Range Hood Operations
Range Hood Operations Power Light Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear all smoke and odors from the kitchen. -
Page 15: Level
Range Hood Operations (Continued) Power Light Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator • Controls: • Adjusting the timer function: Decrease Value button over 3 seconds to • While the blower (motor) is not running, press and hold enter timer mode. -
Page 16: Wiring Diagram & Measurements
Wiring Diagrams Wiring Diagram (4 Speed) Wiring Diagram (6 Speed) NOTE: Wiring Diagrams shown above with GU10 light configuration. A transformer is required for MR16 Lights. Page 14... -
Page 17: Installation Overview
Measurements and Diagrams Installation Overview: Mounting Bracket Qty: 6 PCS Qty: 6 PCS (For sheet rock only) Re-circulating kit exhaust (Re-circulating kit not shown) Upper chimney Glass Canopy Screw Qty: 4 PCS (Optional with glass canopy) Duct work and electric wiring region Qty: 4 to 8 PCS Lower chimney... - Page 18 Measurements and Diagrams (Continued) • All inch measurements are converted from millimeters, thus inch measurements are estimated. Overall: AP238-PSF AP238-PSD AP238-PSZ AP238-PSL Page 16...
-
Page 19: Troubleshooting
Troubleshooting If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. -
Page 20: Use And Care Information
Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. -
Page 21: Cleaning
Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces: •... -
Page 22: Coverage & Exceptions
Warranty TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. One Year Parts Warranty: For one year from the date of original purchase, your local reseller will provide free of charge, non-consumable replace- ment parts or components that failed due to manufacturing defects. -
Page 23: Disclaimer & Contact Information
Disclaimer Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately. - Page 24 Your Notes Page 22...
- Page 25 Your Notes Page 23...
- Page 26 Your Notes Page 24...
- Page 27 Your Notes Page 25...
- Page 28 Cavaliere 7372 Doig Drive Garden Grove, California 92841 Tel: 714-622-1550 Fax: 714-622-1559 http://www.cavalierehoods.com...
Need help?
Do you have a question about the AirPRO 238 and is the answer not in the manual?
Questions and answers
The display lights and bulbs keep flashing and the number display goes up and down from 1-6 continuously. How to reset?
To reset the Cavaliere AirPRO 238 when the display lights and bulbs are flashing and the number display fluctuates between 1–6, press and hold the Increase Value button for over 3 seconds while the motor is not in use. This will reset the timer. Make sure the system is turned off and cooled before touching any components.
This answer is automatically generated
Need digital control unit for cavalier air pro 238-series wall hood psf
I need to replace the fans on my kitchen fan, where can I purchase them?

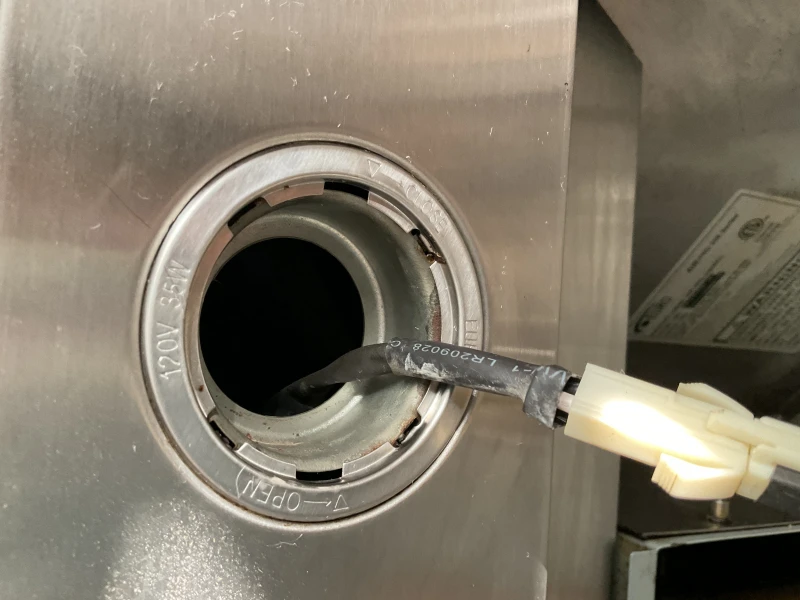

Hello I believe I have an older model air pro 238;series AP238-PSF-30 I need to replace the lights but I don’t know where to buy rhemn I lost some of the screw to need to know what to buy to put it back up
