Installation Guide
and Users Manual

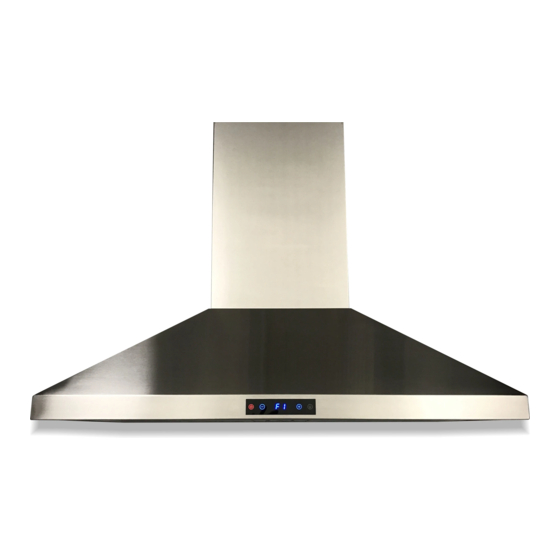

198 Series Wall Mount Range Hood
Suitable for:
Standard Class
"R" Class
"E" Class
"SP" Class
IMPORTANT:
Read and save these instructions.
NOTICE:
Installer: Leave this guide with the homeowner
Homeowner: Keep this guide for future reference
Wall Mount Range Hood
Rev. 1016u.8a
Advertisement
Table of Contents
Related Manuals for Cavaliere 198 Series
Summary of Contents for Cavaliere 198 Series
- Page 1 Installation Guide and Users Manual 198 Series Wall Mount Range Hood Suitable for: Standard Class “R” Class “E” Class “SP” Class IMPORTANT: Read and save these instructions. NOTICE: Installer: Leave this guide with the homeowner Homeowner: Keep this guide for future reference Wall Mount Range Hood Rev.
- Page 3 Important Safety Notice Read all Instructions before Installing and operating this appliance • The installation in this manual is intended for qualified installers, service technicians or persons with similar qualified background. Installation and electrical wiring must be done by qualified profession- als and in accordance with all applicable codes and standards, including fire-rated construction.
- Page 4 Important Safety Notice Read all Instructions before Installing and operating this appliance • Clean ventilating fan frequently. • Always use appropriate cookware and utensils size. • Always use cookware appropriate for the size of the surface element. To reduce the risk of injury to persons in the event of a stove top grease fire: •...
-
Page 5: Table Of Contents
Table of Contents INSTALLATION USE AND CARE Troubleshooting...........24 Tools needed............3 Use and care information.......25 Parts supplied...........4 Specifications..........25 Venting requirements........5 MAINTENANCE Mount heights & clearance......5-6 Cleaning..........26 Calculating vent system length.......6 Replacing filter & light bulb....26-27 Venting methods..........7 WARRANTY Electrical requirements........8 Coverage & exceptions.........28 Preparation............9 Disclaimer &... -
Page 6: Parts Supplied
Parts supplied: Range Hood (vary with model) Lower standard chimney Upper standard chimney Stainless Steel Baffle or Aluminum Filter(s) Flexible Duct Tube Qty: 6 PCS Qty: 6 PCS (For sheet rock only) Chimney Mounting Qty: 4 PCS Bracket (1 pair) (For secure chimney) Remote Control (Optional w/ “R”... -
Page 7: Venting Requirements
Venting Requirements Height & Clearance • Vent system must terminate to the outside Mounting (roof or side wall). Maximum* ceiling clearance Bracket • DO NOT terminate the vent system in an at- 110” at 31” hood mounting Standard tic or other enclosed area. height above countertop/stove Upper (may vary with different... -
Page 8: Calculating Vent System Length
IMPORTANT: • A minimum of 6” round (standard for this range hood) or 3-1/4 x 10” rectangular duct (purchased separately) must be used to maintain maximum airflow efficiency. • Flexible 6” round duct provided for convenience, always use rigid type metal/aluminum ducts if available to maximize airflow when connecting to provided duct. -
Page 9: Venting Methods
Venting Methods • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. -
Page 10: Electrical Requirements
Electrical Requirements IMPORTANT: Observe all governing codes and ordinances. (Please consult with a qualified electrician for 220-Volt 50 Hz voltage) It is the customer’s responsibility: To contact a qualified electrical installer. To assure that the electrical installation is adequate and in conformance with National Electrical Code, ANSI/ NFPA 70 —... -
Page 11: Preparation
Preparation Advanced Preparations: Read the entire installation guide and users manual thoroughly, understand instructions and warnings. Be familiar with the controls of the range hood by reading through Range Hood Operations, Page 12. Place the range hood on a flat, stable surface. Connect the range hood to a designated standard outlet (please refer the product label for the suitable voltage of this unit) and verify no debris has entered the vent openings, then turn on the range hood. -
Page 12: Installation
Installation DO NOT INSTALL THE RANGE HOOD BEFORE TESTING IT. MECHAN- ICAL DAMAGE MIGHT HAVE OCCURRED DURING TRANSPORTION. Plug in the range hood to the USA/Canada 120V standard outlet (220V for Eu- rope and other countries), test the blower and the lights before installing it. Installations (refer to Page 4 for parts): Figure 1 Measure the distance between stove top and the bottom of... - Page 13 Installation (Continued) Figure 4 Figure 3 Figure 2 Store excess wires in the wiring box. Install both chimneys and tighten screws to secure the lower chimney to the range hood as shown in Figure To avoid scratching the chimney, extend the upper chimney slowly and carefully to the chimney-mount- ing bracket and tighten screws as shown in Figure 6.
- Page 14 Range Hood Operations & Wiring Diagram SV168/198 Series Standard Class (3 Speed Mechanical Control) Low Speed High Speed Power Switch Medium Speed Light Switch Turn On: • Press the speed control (Low Speed, Medium Speed, High Speed) switch to select the desired level of power.
- Page 15 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “R” Class (4 Speed Electronic Control w/ Remote) Power-Off Delay Control Power / Fan Speed Control Remote Control Sensor Speed / Timer Indicator Light Control This range hood is equipped with a credit card size remote control (approximately 20ft range), three built-in elec- tronic controls, a powerful centrifugal squirrel cage motor, grease filters and two bright 12V 20W halogen lights.
- Page 16 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “R” Class (4 Speed Electronic Control w/ Remote) Power-Off Delay Control Power / Fan Speed Control Remote Control Sensor Speed / Timer Indicator Light Control The credit card size remote control controls the power of the Lights...
- Page 17 Range Hood Operations & Wiring Diagram (Continued) SV168/198 Series “R” Class Wiring Diagram NOTE: Wiring Diagrams shown above with GU10 light configuration. A transformer is required for MR16 Lights. Page 15...
- Page 18 Range Hood Operations & Wiring Diagram (Continued) SV198 Series “E” Class (F20-Type 3 Speed Electronic Touch Control) Power Light Power-Off Delay Increase Value Decrease Value Clock / Digital Display This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear all smoke and odors from the kitchen.
- Page 19 Range Hood Operations & Wiring Diagram (Continued) SV198 Series “E” Class (F20-Type 3 Speed Electronic Touch Control) Power Light Power-Off Delay Increase Value Decrease Value Clock / Digital Display • Controls: • Lights: • Press Light button once to turn on the lights, and once again to turn off the lights. •...
- Page 20 Range Hood Operations & Wiring Diagram (Continued) SV198 Series “E” Class (R-Type 4 or 6 Speed Electronic Touch Control) Power Light Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator This range hood is designed to remove smoke, cooking vapors and odors from the cook top area. For best results, start the range hood before cooking and allow it to operate several minutes after the cooking is completed to clear all smoke and odors from the kitchen.
- Page 21 Range Hood Operations & Wiring Diagram (Continued) SV198 Series “E” Class (R-Type 4 or 6 Speed Electronic Touch Control) Power Light Power-Off Delay Increase Value Decrease Value Power-Off Delay Digital Timer Blower Speed Indicator Cleaning Reminder Indicator • Controls: • Adjusting the timer function: •...
- Page 22 Range Hood Operations & Wiring Diagram (Continued) SV198 Series “E” Class Wiring Diagram (R-Type 4 Speed with GU10 Bulb) SV198 Series “E” Class Wiring Diagram (R-Type 6 Speed with GU10 Bulb) Page 20...
- Page 23 Range Hood Operations & Wiring Diagram (Continued) SV198 Series “E” Class (S-Type 6 Speed Electronic Touch Control) Power Light Decrease Value Increase Value Blower Power Indicator Power-On Elapsed Digital Timer Blower Speed Indicator Power-Off Delay Digital Timer Light Power Indicator Power-Off Delay Timer Indicator This range hood is designed to remove smoke, cooking vapors and odors from the cook top area.
- Page 24 Range Hood Operations & Wiring Diagram (Continued) SV198 Series “E” Class (S-Type 6 Speed Electronic Touch Control) Power Light Decrease Value Increase Value Blower Power Indicator Power-On Elapsed Digital Timer Blower Speed Indicator Power-Off Delay Digital Timer Light Power Indicator Power-Off Delay Timer Indicator •...
- Page 25 Wiring Diagram SV198 Series “E” Class Wiring Diagram (S-Type 6 Speed with GU10 Bulb) Page 23...
-
Page 26: Troubleshooting
Troubleshooting If the range hood or halogen light does not operate • Check if the range hood has been plugged in, make after installation: sure that all power has been turned back ON, fused not blown and all electrical wiring are properly con- nected. -
Page 27: Use And Care Information
Use and Care Information Operations: • Read and understand all instructions and warnings in this manual before operating the appliance. Save these instructions for future reference. • Always leave safety grills and filters in place. Without these components, operating blowers could catch on to hair, fingers and loose clothing. -
Page 28: Cleaning
Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior surfaces: •... - Page 29 Maintenance (Continued) WARNING Hazard of Burns! Light bulb become extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Replacing the Light Bulb Using the Inner Ring Opener: • Make sure the range hood is unplugged or turn OFF breaker.
-
Page 30: Coverage & Exceptions
Warranty TO OBTAIN SERVICE UNDER WARRANTY: You must present proof of original purchase date. Please provide an original dated proof of purchase (sales receipt / invoice) in order to obtain service under warranty. One Year Parts Warranty: For one year from the date of original purchase, your local reseller will provide free of charge, non-consumable replace- ment parts or components that failed due to manufacturing defects. -
Page 31: Disclaimer & Contact Information
Disclaimer Carefully inspect all items for damages before accepting delivery. note any damages on the freight bill or express receipt. request name and signature of the carrier’s agent and keep copy to support your claim. Upon acceptance of items, owner assumes responsibility for its safe arrival. Report damages to the carrier and file a claim immediately. - Page 32 Cavaliere 7372 Doig Drive Garden Grove, California 92841 Tel: 714-622-1550 Fax: 714-622-1559 http://www.cavalierehoods.com...
