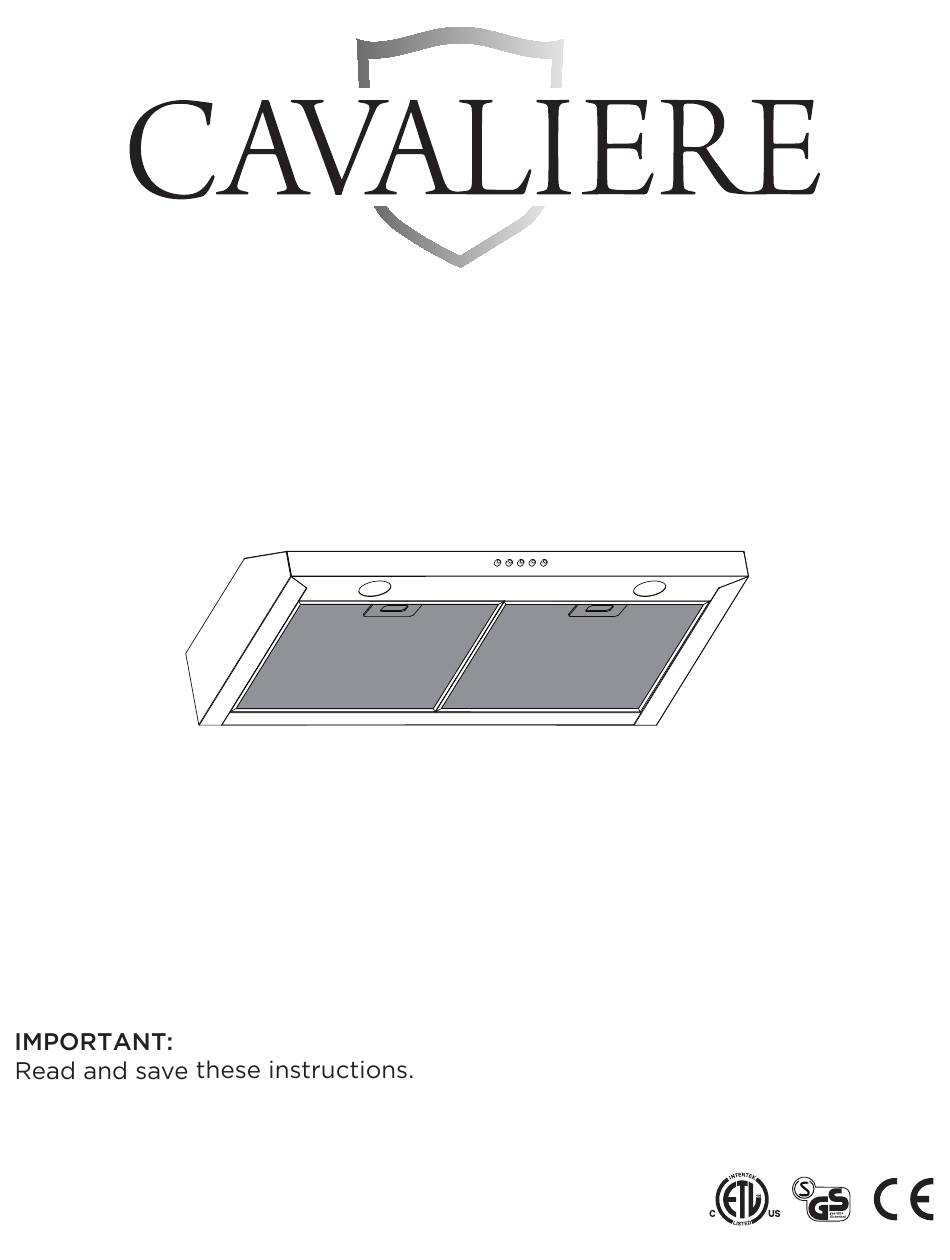

- Page 1 UC200 SERIES UNDER CABINET Installation & User Manual NOTICE: Installer: Leave this guide with the homeowner. Homeowner: Keep this guide for future reference. UNDERCABINET RANGE HOOD 2019b...
- Page 2 Important Safety Notice READ ALL INSTRUCTIONS BEFORE INSTALLING AND OPERATING THIS APPLIANCE Your safety and the safety of others is very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
- Page 3 Important Safety Notice • Ducted fans MUST always be vented to the outdoors. • DO NOT vent exhaust into spaces between walls, crawl spaces, ceiling, attics or garages. fire. • Any old duct work should be cleaned or replaced if necessary to avoid the possibility of a grease Check all joints on duct work to insure proper connection and all joints should be properly taped.
-
Page 4: Table Of Contents
Table of Contents INSTALLATION Tools needed ...............3 Electric Schematic ..........12 Parts Supplied .............4 MAINTENANCE Venting Requirements ..........5 Cleaning, Replacing Filter & Light Bulb ..13-14 Height & Clearance ...........5 WARRANTY Venting Methods ............6 Disclaimer ..............16 Preparation ..............7 Contact Information ..........16 Installation ..............8-9 USE AND CARE Range Hood Operations... -
Page 5: Parts Supplied
Parts Supplied Range Hood Rectangular Exhaust/Vent Adapter (For vertical or horizontal venting) Qty: 2 PCS Qty: 6 PCS Qty: 6 PCS (For dry wall or sheet rock only) Pg 4... -
Page 6: Venting Requirements
Height & Clearance Venting Requirements • Vent system must terminate to the outside (roof or side wall). • DO NOT terminate the vent system in an attic or other enclosed area. • DO NOT use 4” (10.2 cm) laundry-type wall caps. •... -
Page 7: Venting Methods
Venting Methods • This range hood is factory set for venting through the roof or wall. • Vent work can terminate either through the roof or wall. To vent through a wall, a 90° elbow is needed. IMPORTANT: • NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. -
Page 8: Preparation
Preparation Advanced Preparations: Familiarize yourself with the controls of the range hood by reading through Range Hood Operations, Page 10. Place the range hood on a flat, stable surface. Connect the Excessive Weight Require three or more persons to range hood to a designated standard outlet (please refer move and install this range hood. -
Page 9: Installation
Installation Installations (refer to Page 4 for parts identification): Measure the distance between the stove top and the bottom surface of your cabinet, installation structure or mounting surface; also measure the height of the range hood; deduct those measurements to calculate the distance between the stove top surface and the bottom surface of the range hood. - Page 10 Installation (Continued) 5) Assemble the vent adaptor onto the range hood. Mount the vent adaptor and draft damper to the range hood body using the 10mm length screws. Use certified duct tape or other certified duct sealant to seal the vent adaptor and the range hood by taping over the mounting screws, alongside the flange of the vent adaptor, or sealing in between the 2 parts.
-
Page 11: Range Hood Operations
Range Hood Operations Control Panel, Display and Functions: This range hood is designed to remove cooking vapors, smoke and odors from the cook top area. For the best results, start the venting feature before cooking and also allow it to operate for several minutes after cooking to help clear all smoke and odors from the kitchen. -
Page 12: Troubleshooting
Troubleshooting If the range hood or light • Check if the range hood has been plugged in, make does not operate after sure that all power has been turned back ON, and all installation: electrical wiring are properly connected. Swap out light bulb to working ones to determine •... -
Page 13: Electric Schematic
Specifications Maximun Power Usage 56W(50W+2*3W) Motor Power Ampere 0.6 A Lighting Wattage 3W 12V Levels Of Speed Control 3 Levels Maximum Airflow 280CFM Noise Level (dB/Sone) 40 dB(1.0 Sone) / 55 dB (2.8 Sone) / 60 dB (4.0 Sone) Motor Single Motor Motor Type Single Chamber Ultra Quiet... -
Page 14: Maintenance
Maintenance SAFETY WARNING: Never put your hand into area housing the fan while the fan is operating! For optimal operation, clean range hood and all baffle/spacer/filter/grease tunnel/oil container regularly. Regular care will help preserve the appearance of the range hood. Cleaning Exterior Surfaces: Clean periodically with hot soapy water and clean cotton cloth. - Page 15 Maintenance (Continued) Hazard of Burns! Light bulb become extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Replacing The Light Bulb: • Check the range hood tag for lamp specifications. Halogen bulbs will not work on "LED" models (they will lightly pulse or flash).
-
Page 16: Warranty
Warranty One Year Parts Warranty: For one year from the date of original purchase, your local reseller will provide free of charge, non-consumable replacement parts or components that failed due to manufacturing defects. Subject to the conditions and limitations set forth below, your local reseller will, at its option, either repair or replace any part of its products that prove defective by reason of improper workmanship or materials. -
Page 17: Disclaimer
Disclaimer Carefully inspect all items for damages before accepting delivery. Note and picture any damages to the external box, contents or item to the carrier and written on the freight bill or delivery receipt. Request name and signature of the carrier’s agent and keep copy to support your claim. - Page 18 21700 Barton Road, Colton, California 92324 USA Phone Number: (800) 827-5950 CavaliereHoods.com...
