Cyclone MKV 2 Multimedia Enclosure

Wired Connection:

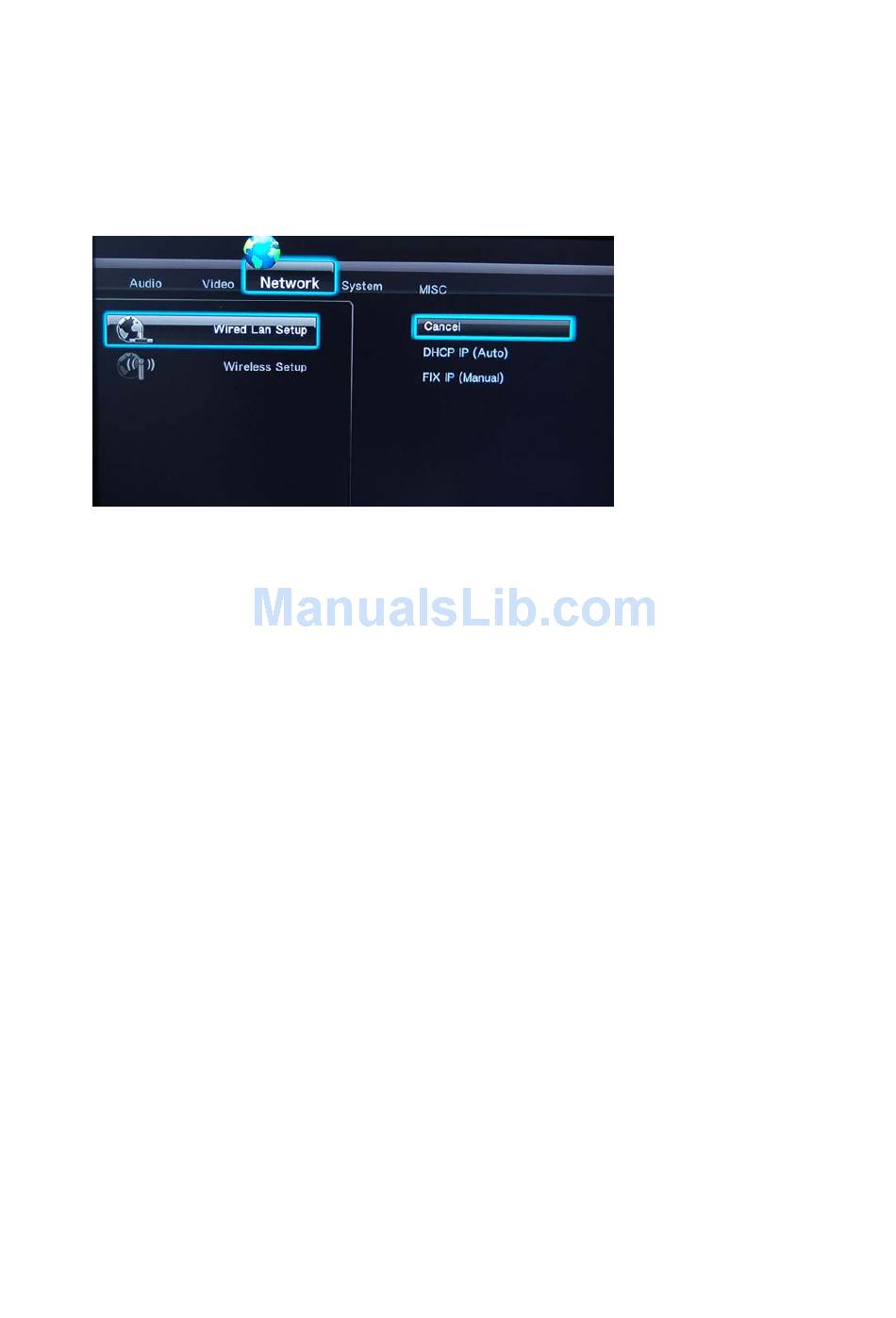

If you are connecting your Cyclone MKV 2 via Ethernet cable select "Wired
LAN Setup".
You will be given two options to choose from.

DHCP IP (Auto):

This option is recommended for novice and regular users. Choosing this
option will allow your router to automatically assign a dynamic IP address to
your Cyclone MKV 2.
Highlight DHCP IP and press OK to select it. You will then be given a choice
of options. If the operation is successful then the acquired IP address will be
displayed on the screen with other details such as the Subnet Mask and
Gateway.

Fixed IP (Manual):

This option is recommended for advanced users, as it requires modifying the
Cyclone MKV 2's network settings. This option allows a user to assign the
Cyclone MKV 2 a static IP address. The IP Address, Subnet Mask and
Gateway all have to be set manually. Please consult the user manual of your
router.
Use the buttons and the number keys to input the relevant information into the
provided fields.
Once all the details have been entered, press OK to confirm the settings.
If the given IP Address is accepted, a screen will appear displaying the
network settings of the Cyclone MKV 2.
Page 22.
Version 1.2
